Axio Imager 2 OPERATION ZEISS
Operating the motorized microscope via the touchscreen of the TFT display
01/2016 430000-7544-001 115
• First make the desired settings for Azimuth and Shift to store fixed positions.
• Press the Save position button.
A pop-up window (Fig. 108) with the four position buttons will open.
• Press the desired position.
A security query will appear if the position has already been allocated. If you acknowledge by pressing
Yes, the new position will be stored on the selected button.
TIC
The procedure for the TIC method is similar to that
for C-DIC. The difference is that only the azimuth
value needs to be set. There is no Zero button.
The tab will not be available if no
motorized reflector turret is installed.
(5) Tube lens tab
Depending on the type of tube lens turret
employed, up to four control elements may be
available for tube lens positions 1 to 4. If the tube
lenses have been configured, the names will be
displayed. The fifth position is always fitted with
the Bertrand lens.
The BT button swivels the Bertrand lens in and out.
• The relevant button needs to be pressed to
swivel the desired tube lens into the optical
path.
The tab will not be available if no
motorized tube lens turret is installed.
The active tube lens will only be
indicated in the status line (Fig. 94).

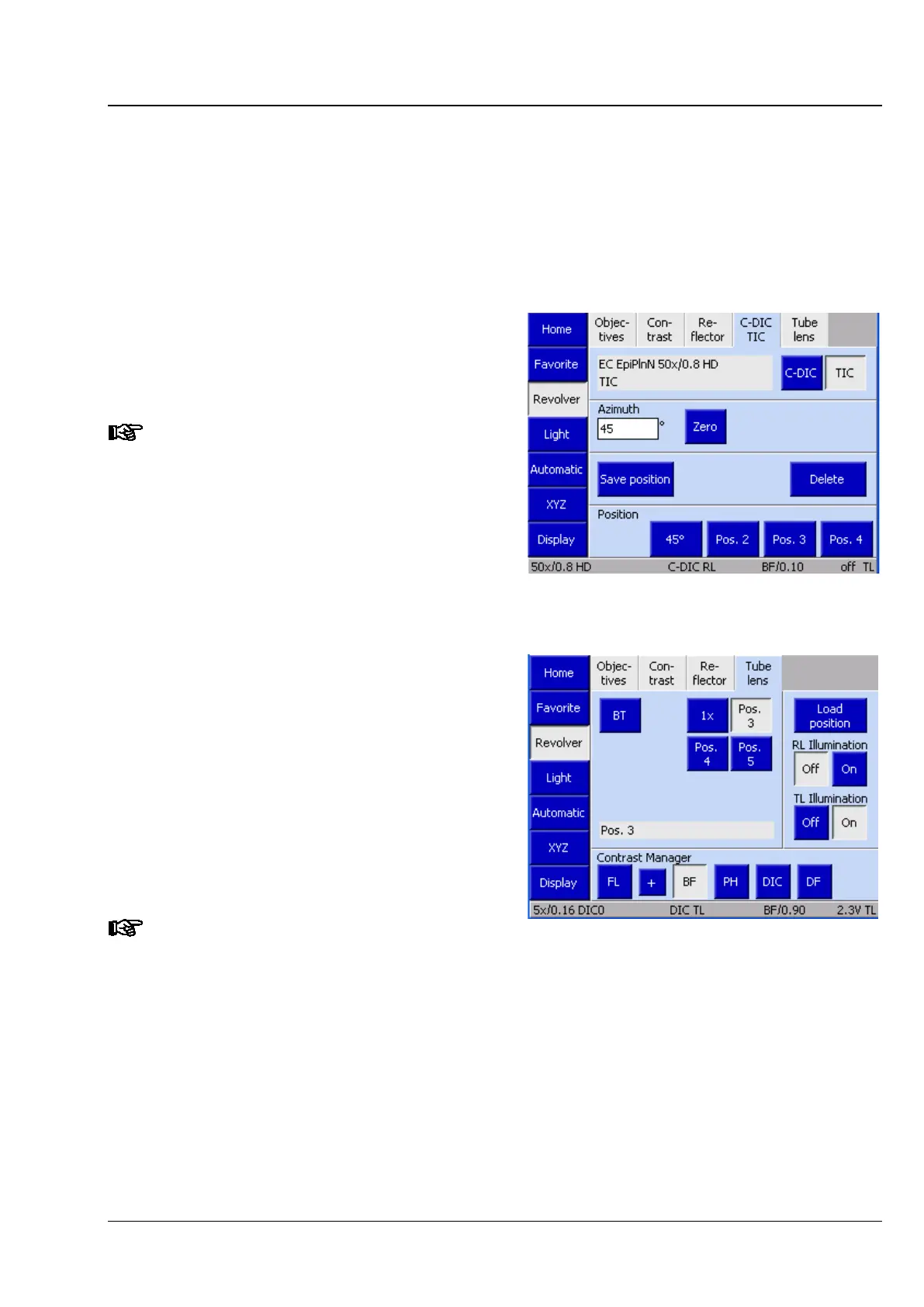

Fig. 109 TIC settings
Fig. 110 Microscope -> Revolver -> Tube lens
