4.8.5.4 XYZ page
The Microscope/XYZ page contains two tabs:
Position and Measure.
The availability of the XYZ page
depends on the microscope stage
used:
−
Motorized stages (only CAN bus
stages that are directly connected
to stands .M2 / .M2p / .M2m or
.Z2 / .Z2m):
Settings for XY coordinates and Z
focusing drive settings possible
− Manual stage:
Settings for Z focusing drive only
possible (no XY controls),
Measure tab not accessible
−
Manual stage / manual Z focusing
drive:
XYZ page is not accessible
During microscope initialization, the
system detects whether a stage is
installed. Th
us, the stage can only be
changed with the microscope switched
off.
(1) Position tab
The control area under the Position tab is
subdivided into three functional blocks.
If no motorized stage is used, the Start
button is available in place of the XY
controls (see (2) Measure) below.
Current position display / Set Zero
Displays the current positions of Z, X and Y in
millimeters (mm).
If no motorized Z focusing drive is
installed, the Z position is not
accessible.

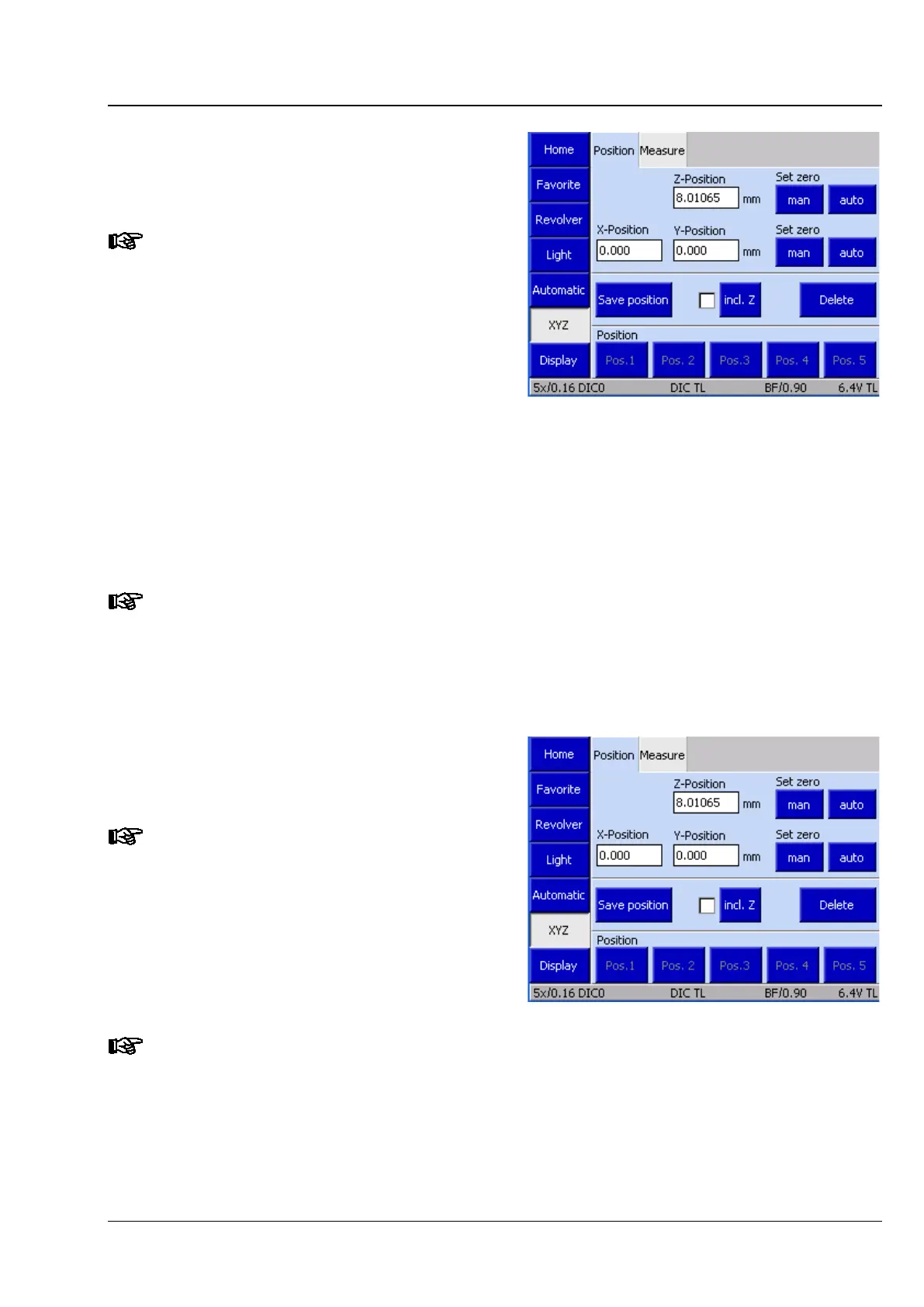

Fig. 121 Microscope -> XYZ
Fig. 122 Microscope -> XYZ -> Position
