ZEISS OPERATION Axio Imager 2
Operating the motorized microscope via the touchscreen of the TFT display
148 430000-7544-001 01/2016
(3) Buttons left tab
The control buttons on the left-hand side of the
stand can be assigned on this tab.
• Click on the top left button pair.
• Use the arrow buttons to select the desired
assignment.
• Acknowledge with OK or discard with Cancel.
Use the same method for all other button
assignments.

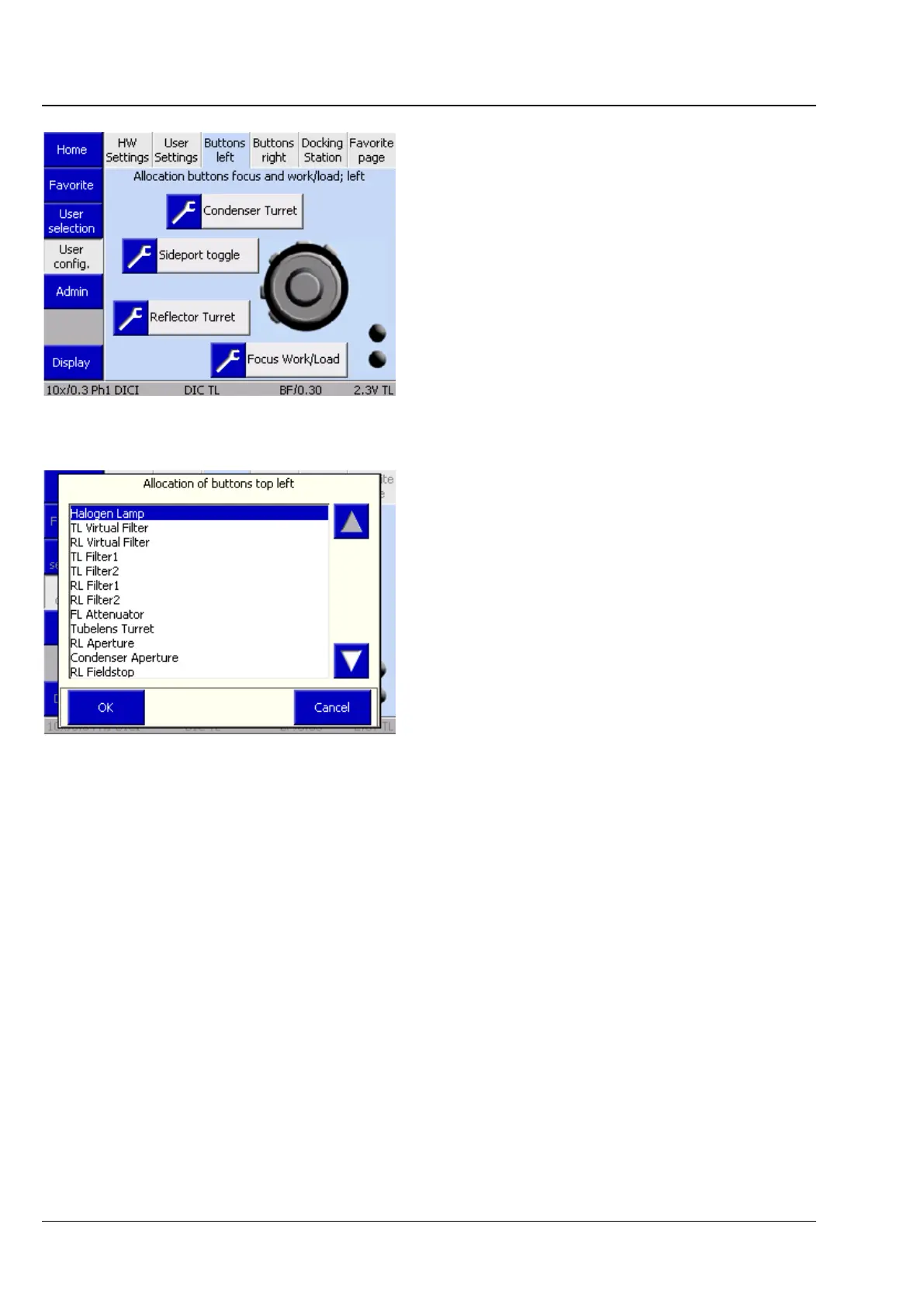

Fig. 175 Microscope -> User -> User
configuration -> Left buttons
Fig. 176 Assignment of top left button pair
