Axio Imager 2 OPERATION ZEISS
Operating the motorized microscope via the touchscreen of the TFT display
01/2016 430000-7544-001 149
(4) Buttons right tab
The control buttons on the right-hand side of the
stand can be assigned on this tab.
• Click on the top right button pair.
• Use the arrow buttons to select the desired
assignment.
• Acknowledge with OK or discard with Cancel.
Use the same method for all other button
assignments.
(5) Docking Station tab
To assign the docking station buttons, use the
same method as in Sections (3) Buttons left tab
and (4) Buttons right tab.

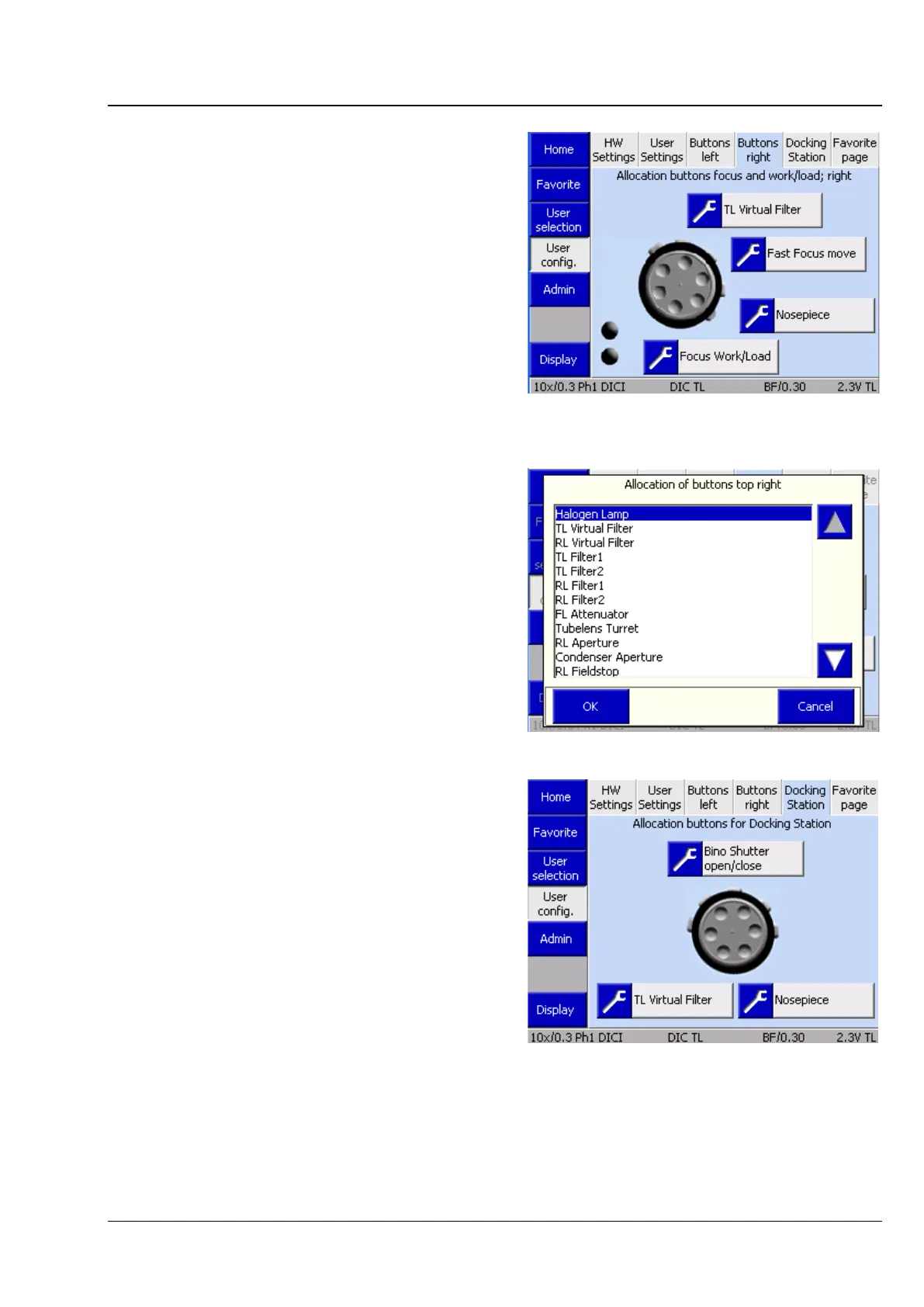

Fig. 177 Microscope -> User -> User
configuration -> Right buttons
Fig. 178 Assignment of top right button pair
Fig. 179 Microscope -> User -> User
configuration -> Docking station
