ZEISS OPERATION Axio Imager 2
Binocular phototube 30°/25 mot. with two camera ports (2TV tube mot.)
96 430000-7544-001 01/2016
You can set the light path and the eyepiece shutter
via the buttons of the control panel (Fig. 86/4,
Fig. 88/1) on the right side of the tube.
If you activated the dazzle protection on the TFT
display (see Section 4.8.6.2), you can use the
eyepiece shutter instead of the light path shutter.
In addition, the 2TV tube has two receptacles
(Fig. 89/1 and 2), into which P&C modules
(Fig. 89/3) can be inserted.
One of these receptacles is factory-fitted with a
100 % mirror, allowing 100% of the light to be
directed to either the front or the rear TV port.
Two receptacles for P&C modules are available for
the user to install e.g. an additional beam splitter
for dual camera operation.
• To insert P&C modules into the 2TV tube,
remove the corresponding magnetically held
covers (Fig. 86/1 and 5) by lifting them off.
• Insert the P&C module(s) and reattach the
cover(s).

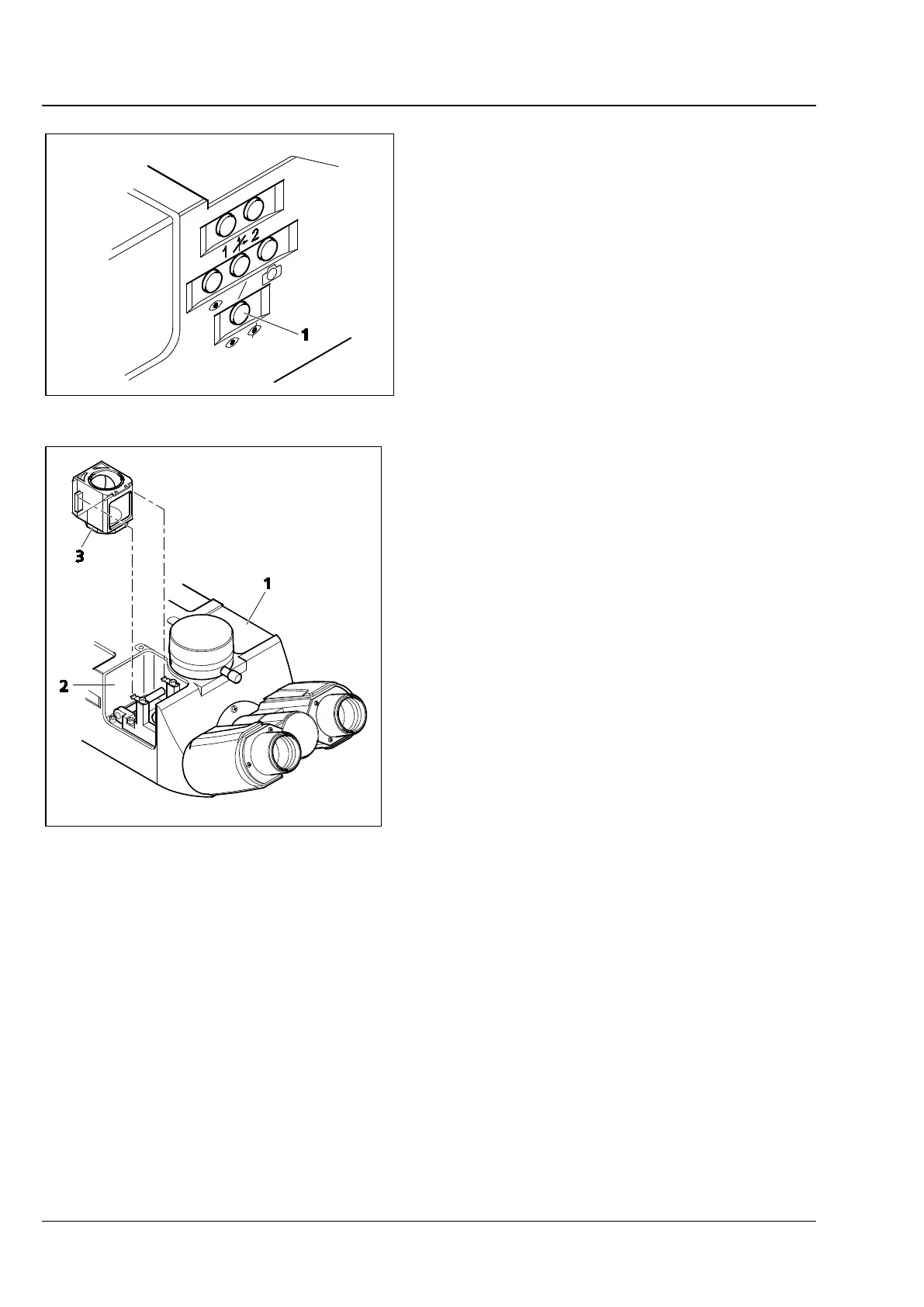

Fig. 88 Control panel
Fig. 89 Receptacles for P&C modules
