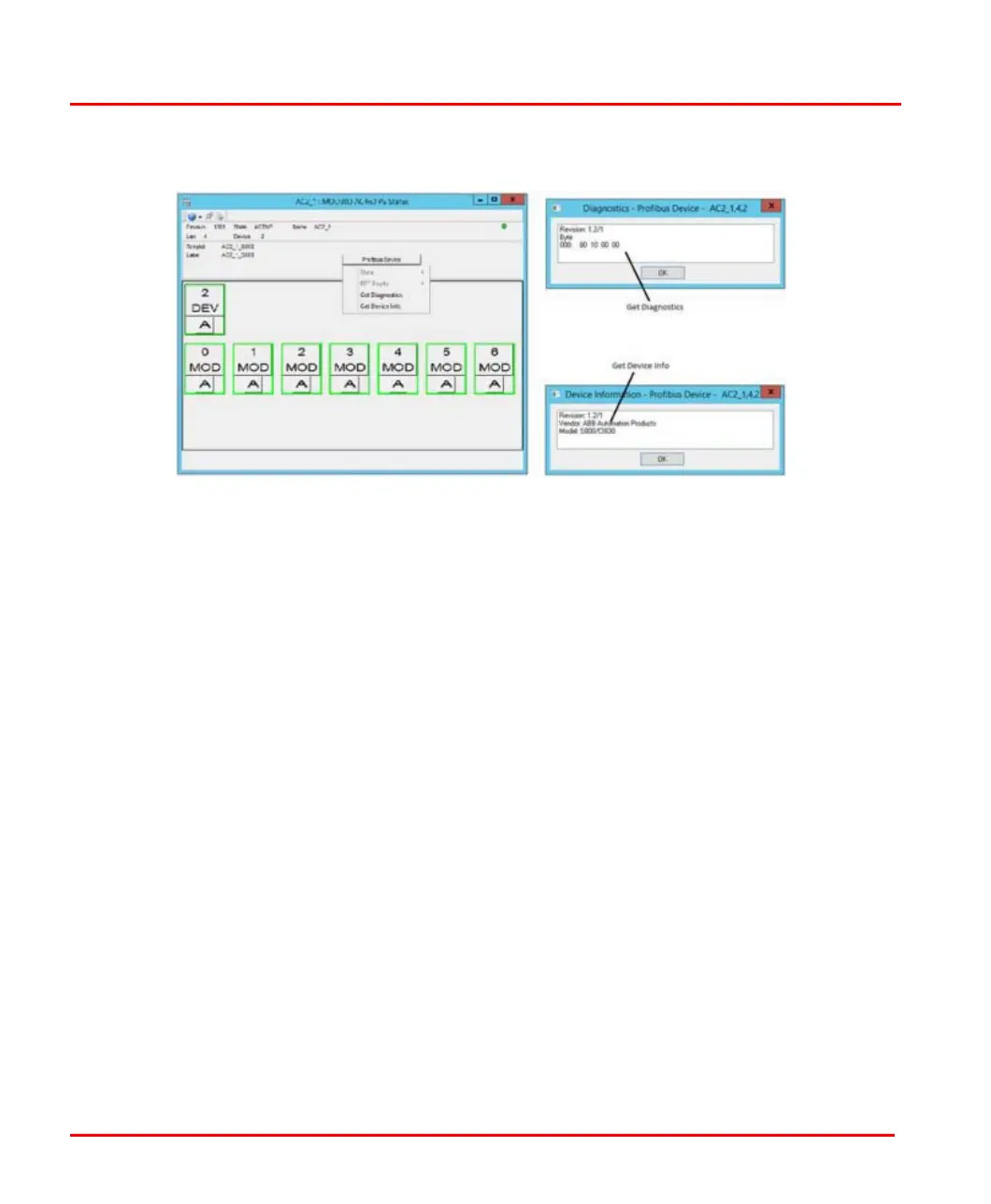

Figure 76. PROFIBUS Device Get Diagnostics and Get Device Info displays
PROFIBUS Device Display Section 7 I/O Displays
174 3BUR002418-600 A
Device Detail
In the main part of the display, Figure 75, a detail window shows specific
information about the devices and each associated I/O module. The right scroll bar
is used to view other modules. The information is displayed as described below (see
Figure 75for device graphic).
