ACF5000
FTIR ANALYZER SYSTEM
|
OI/ACF5000-EN REV. A
99

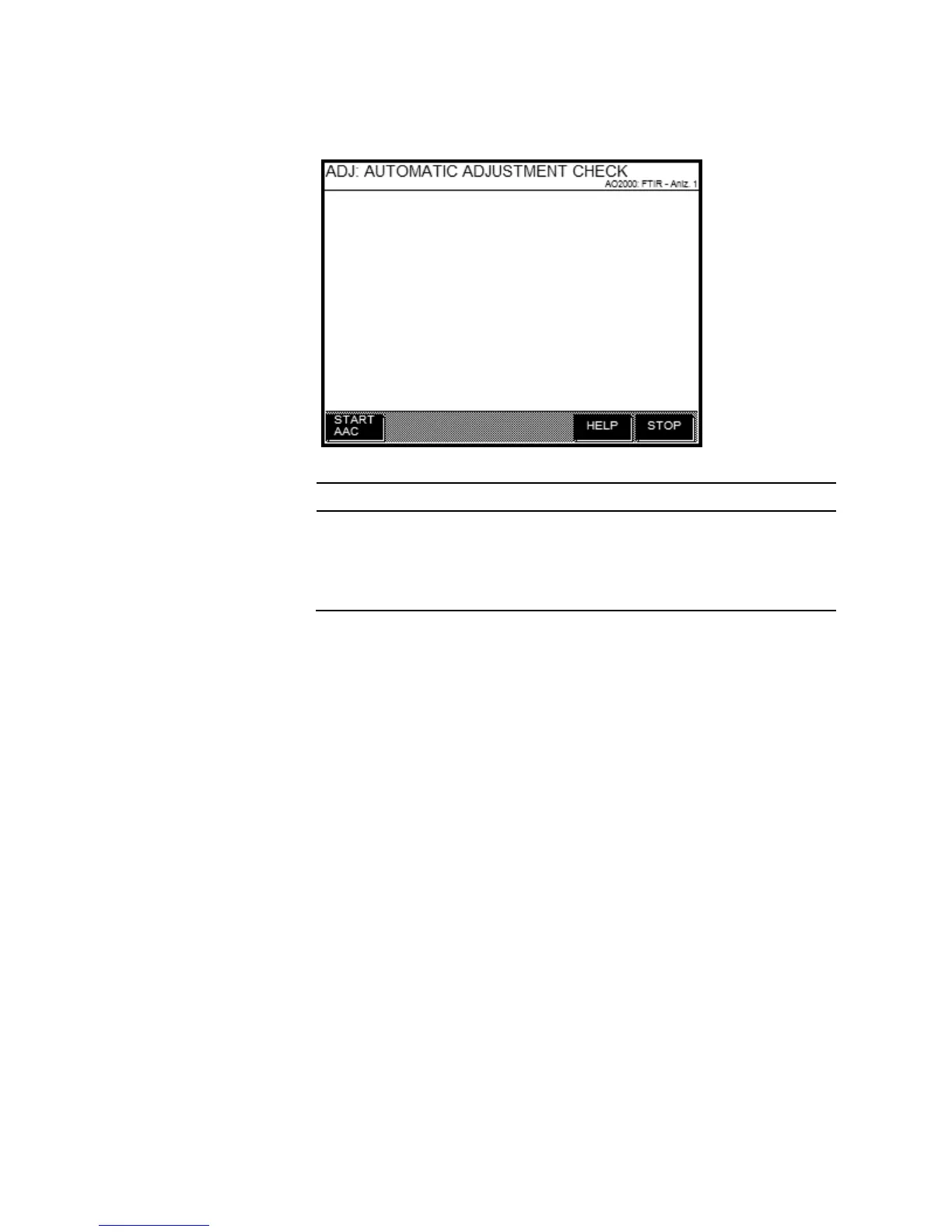

AAC cycle “complete” or “complete & reference”
Display
Operation
START AAC
Start complete AAC.
STOP
Abort the running AAC. The
analyzer system is purged
with sample gas and returns to measuring mode. No
set values and actual values
for the FTIR span values
are output. The AAC cannot
be aborted during auto-
matic reference recording.
98
100
