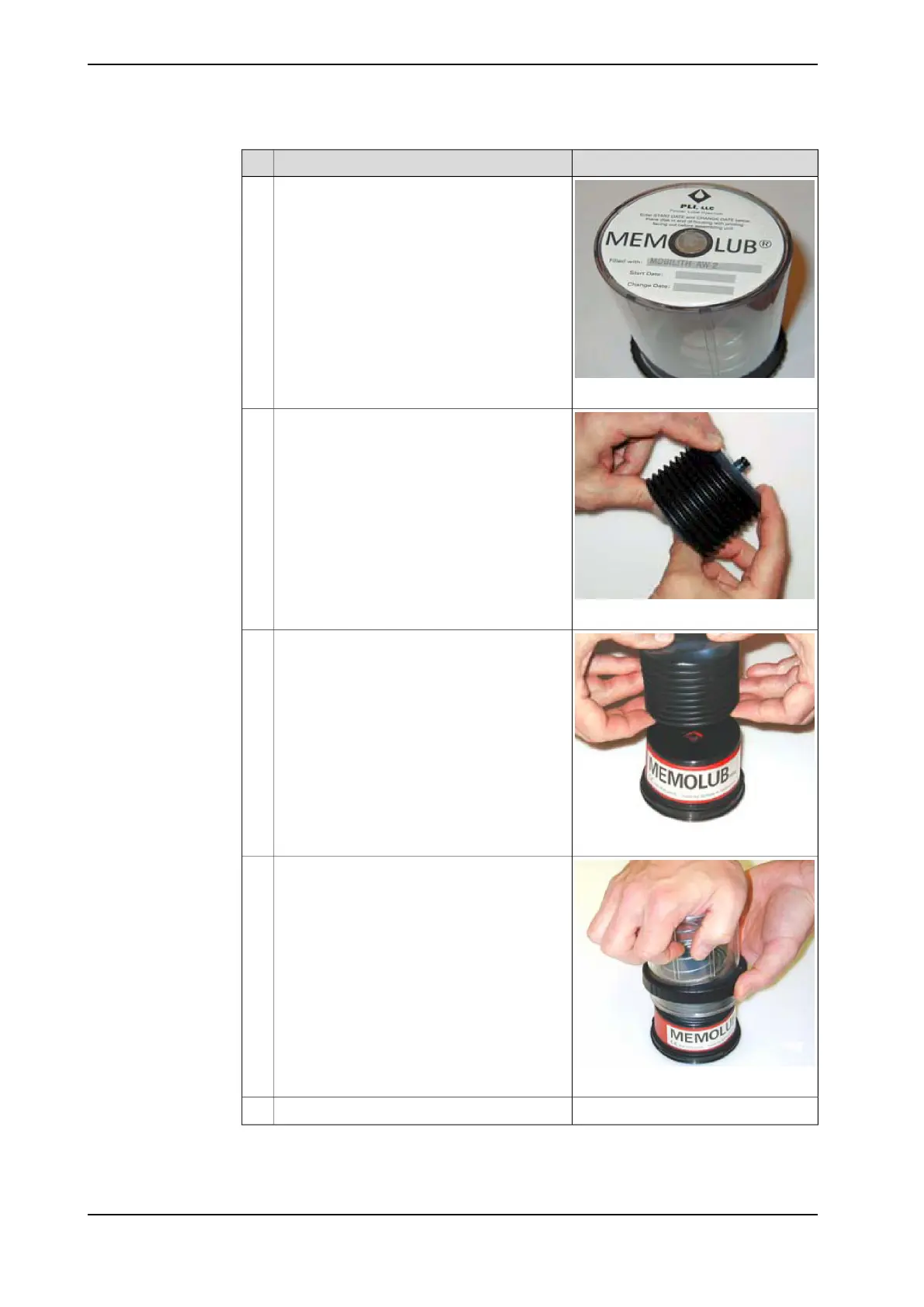

Illustration/NoteAction
xx1400001574
Remove the paper disc from the replacement
cartridge. Fill-in the required dates: "Started"
and "Replace before". The "replace before"
date is depending on the MEMOLUB
®
pro-
gram. Put the paper disc back in place in order
to see the instructions when the MEMOLUB
®
is closed.
3
xx1400001575
Press softly on the cartridge until the grease
comes out, to avoid injecting air into the pump.
4
xx1400001577
Place the cartridge at the inlet of the pump.
verify that the cartridge is correctly inserted in
the inlet of the pump.
5
xx1400001576
Place the spring and the compression disc in-
side the transparent bell. Put the bell back in
place and verify that the compression disc is
correctly lying on the top of the cartridge sur-
face.
6
Close the MEMOLUB
®
as described before.7
Continues on next page
142 Product manual - IRBT 2005
3HAC051130-001 Revision: F
© Copyright 2015 - 2018 ABB. All rights reserved.
2 Installation and commissioning
2.8.1 Replacing the grease cartridge in grease pump MEMOLUB
®
