Controls and Indicators
This section describes the 35mm Bulk Load Camera Module keypad
controls and LED indicator lights.
Status Indicator Lights
There are four LEDs on the side of the camera module. The following
descriptions explain what the LEDs mean when they light up.
Expose: An exposure is in progress.
End of Film: The camera is out of film.
Double Exposure: Double exposure is active. Film is advanced only
after every second exposure.
Auto-mark: Auto-mark is active. Three blank frames are advanced
after every 36 exposures. The film is marked in the middle of the
three blank frames to indicate where to cut.

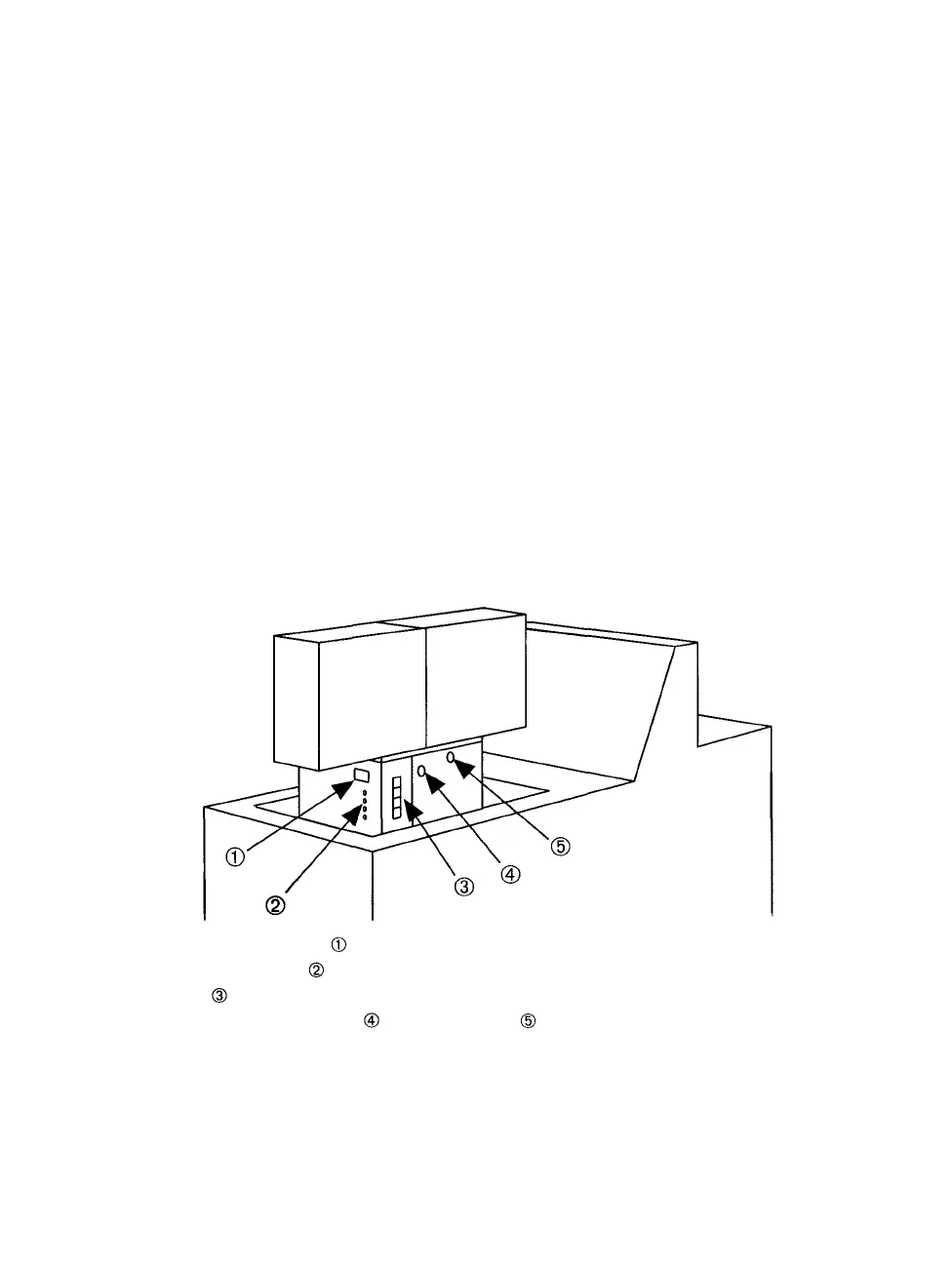

Figure 1 — LCD that displays the current frame number
— Status indicator LEDs on the side panel
— The keypad Keys are labeled A, B, C, and D from top to bottom
— Rewind knob — Latch
PCR II Plus 35mm Bulk Load Camera Module • 3
