Connecting to a GPIB Interface
Connect the PCR II Plus to devices that use the GPIB communication
protocol as shown in Figure 2.3. Either end of the GPIB cable can be
connected to the film recorder.
Caution:
Make
sure
that
your
host
computer
and
film
re-
corder are turned off when you attach the cables.

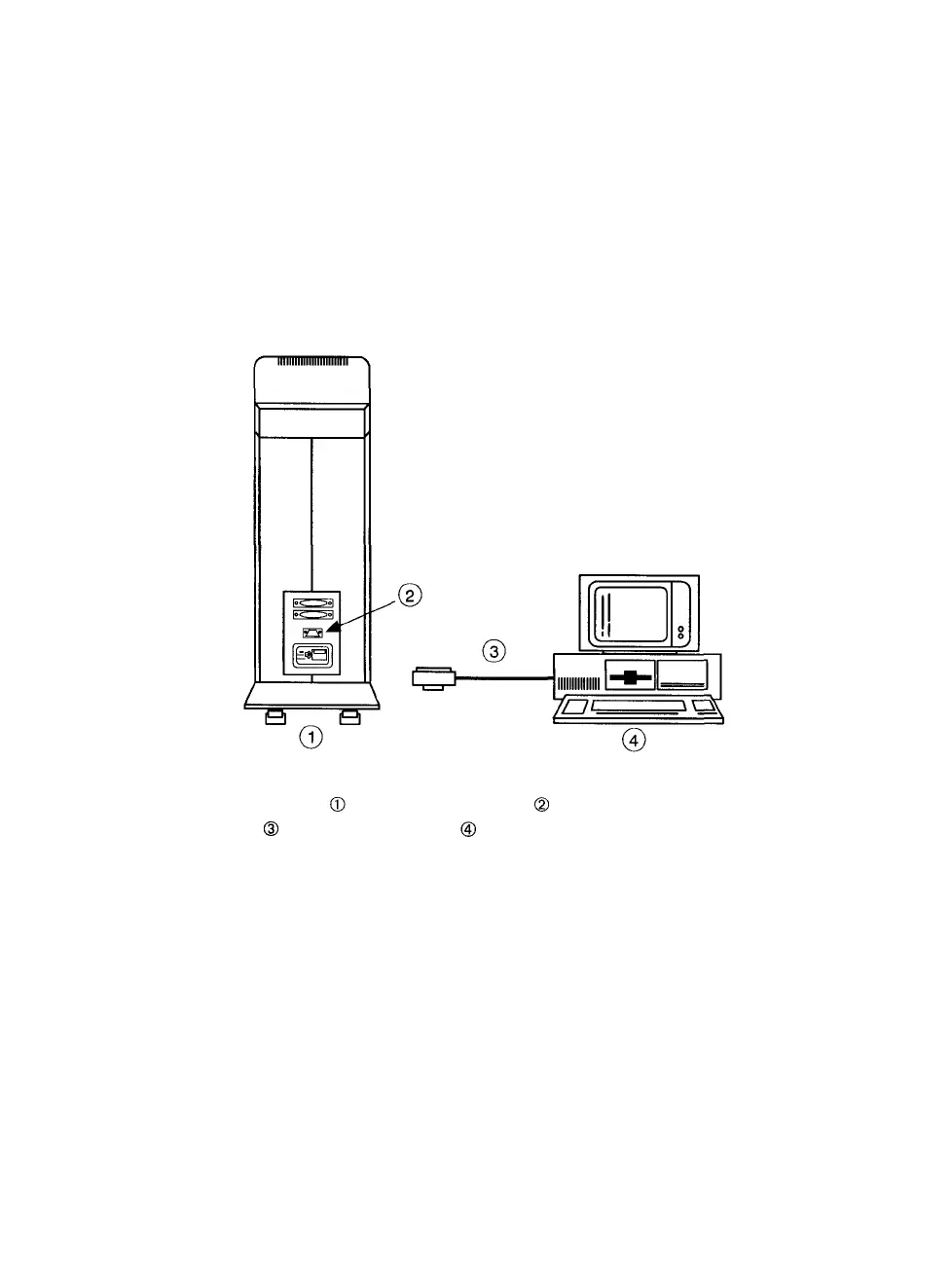

Figure 2 3 GPIB interface connection for an IBM PC-type host
-PCR II Plus, rear view -GPIB port
-GPIB interface cable -IBM PC-type host computer
Note: Systems using GPIB communication exclu-
sively do not require termination.
Installation • 2-5
