Agilent Technologies 6890 Series Service Manual

320 Nitrogen Phosphorus Detector (NPD)
Replacement procedures
24 of 32
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual

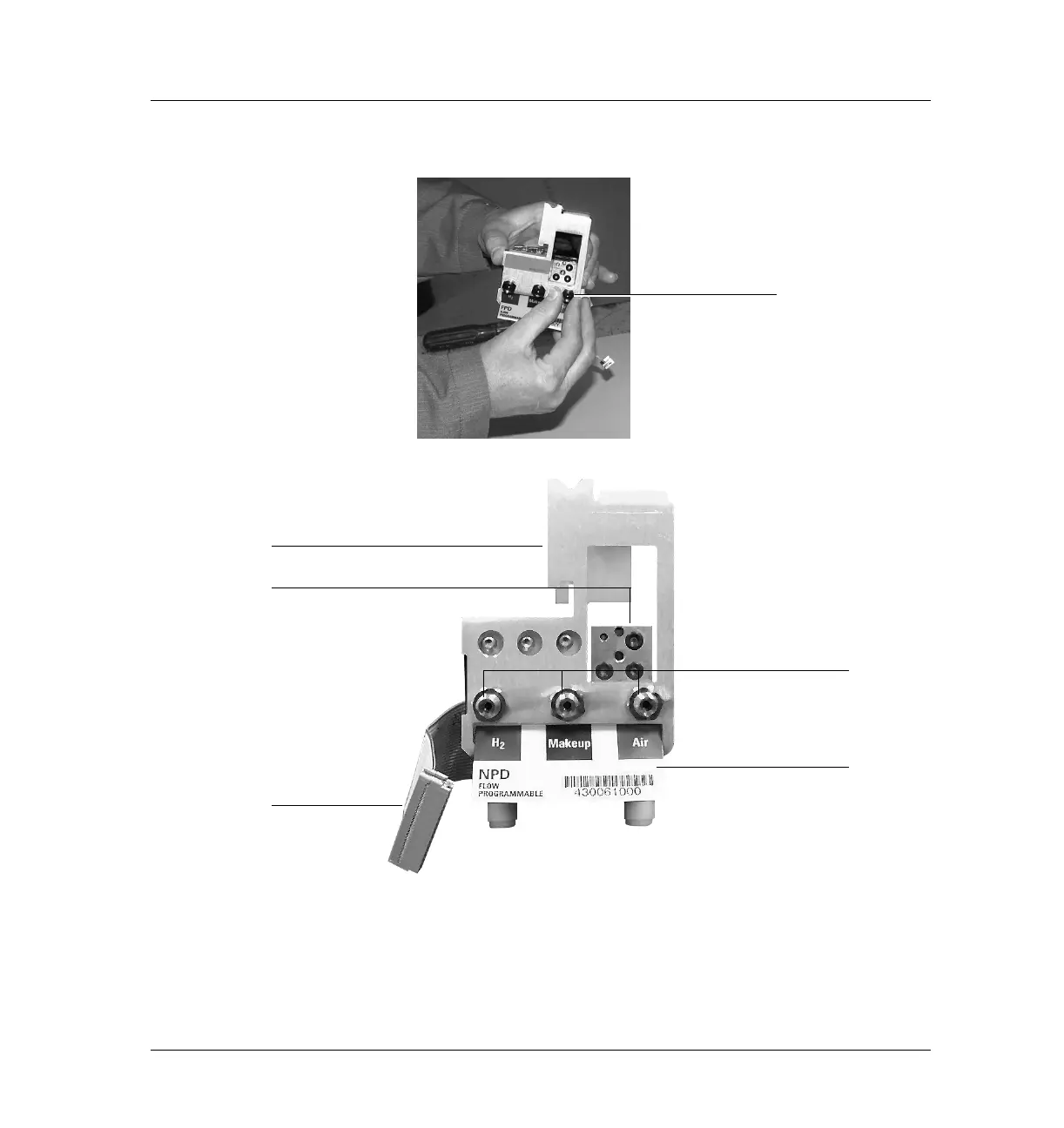

Figure 320-12 Bracket mounted onto the manifold
3. Peel the blank label from its backing and paste it on the mounting bracket
over the screw heads. See Figure 320-12.
Finger-tighten nuts.
Do not use a wrench.
(FPD shown above)
7/16-inch hex nuts
Mounting bracket
ID tag through
Ribbon cable
slot in bracket
Gang fitting installs here
