341 Micro-cell Electron Capture Detector (µ-ECD)
Replacement procedures
16 of 26
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual

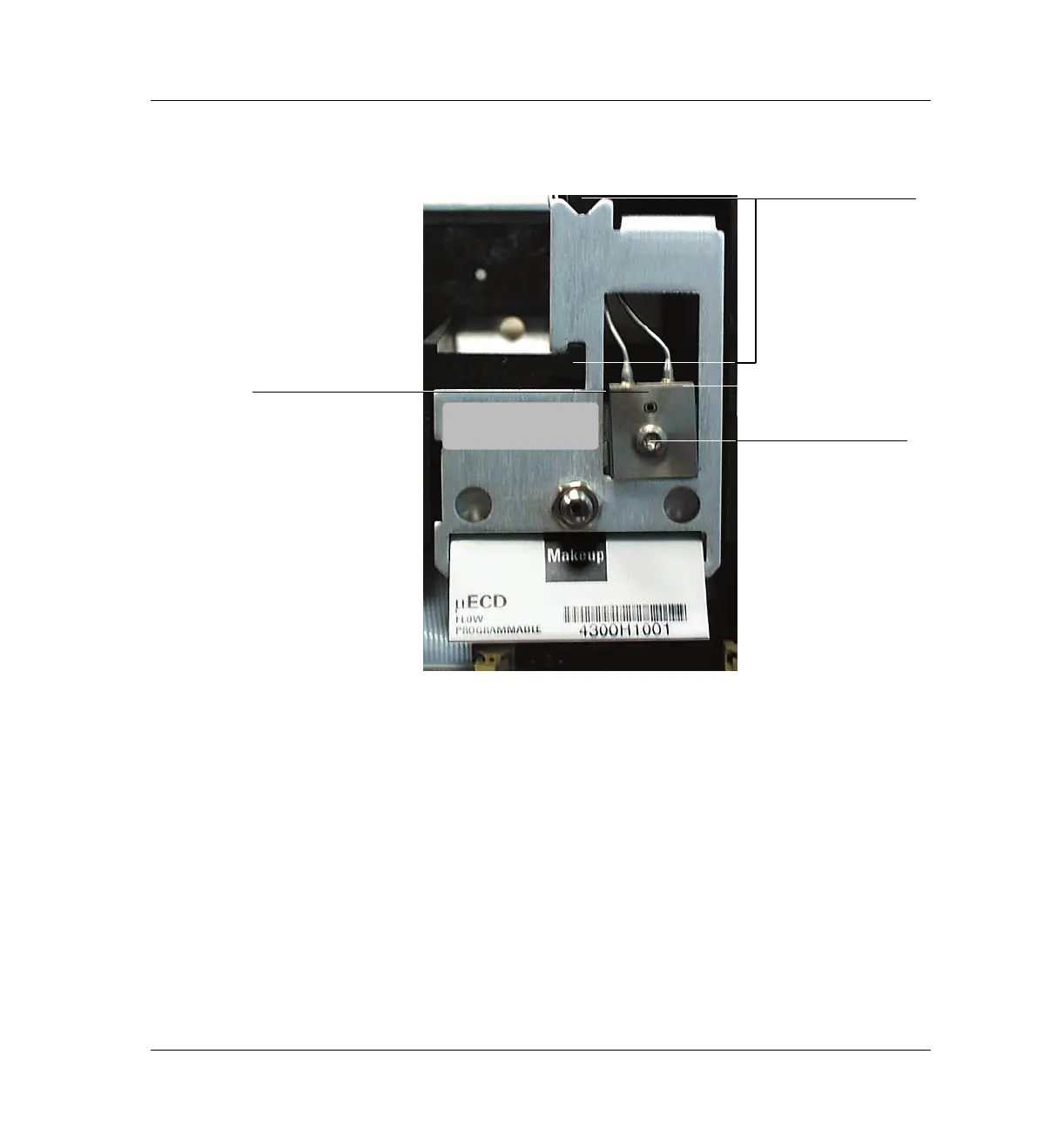

Figure 341-12 Manifold, after installation
7. Route the gas tubing behind the manifold, over the top of the chassis, and
through the slots as shown in Figure 341-12.
8. Connect the ribbon cable to the mating connector on the pneumatics
board. Arrange the cable to keep it away from the valves and keep it from
being pinched between board components and the manifold.
For the back detector, you may want to loosen the manifold and slide it
out of the carrier a few centimeters to connect the cable to the pneumatics
board. Then, reinstall the manifold.
9. Secure the manifold in place using the Torx T-20 screw.
Made in U. S. A.
Bracket is flush with
carrier rails
Check for interference
Attach gang fitting
To Next Page
