Valves
Agilent 6890 Gas Chromatograph Service Manual

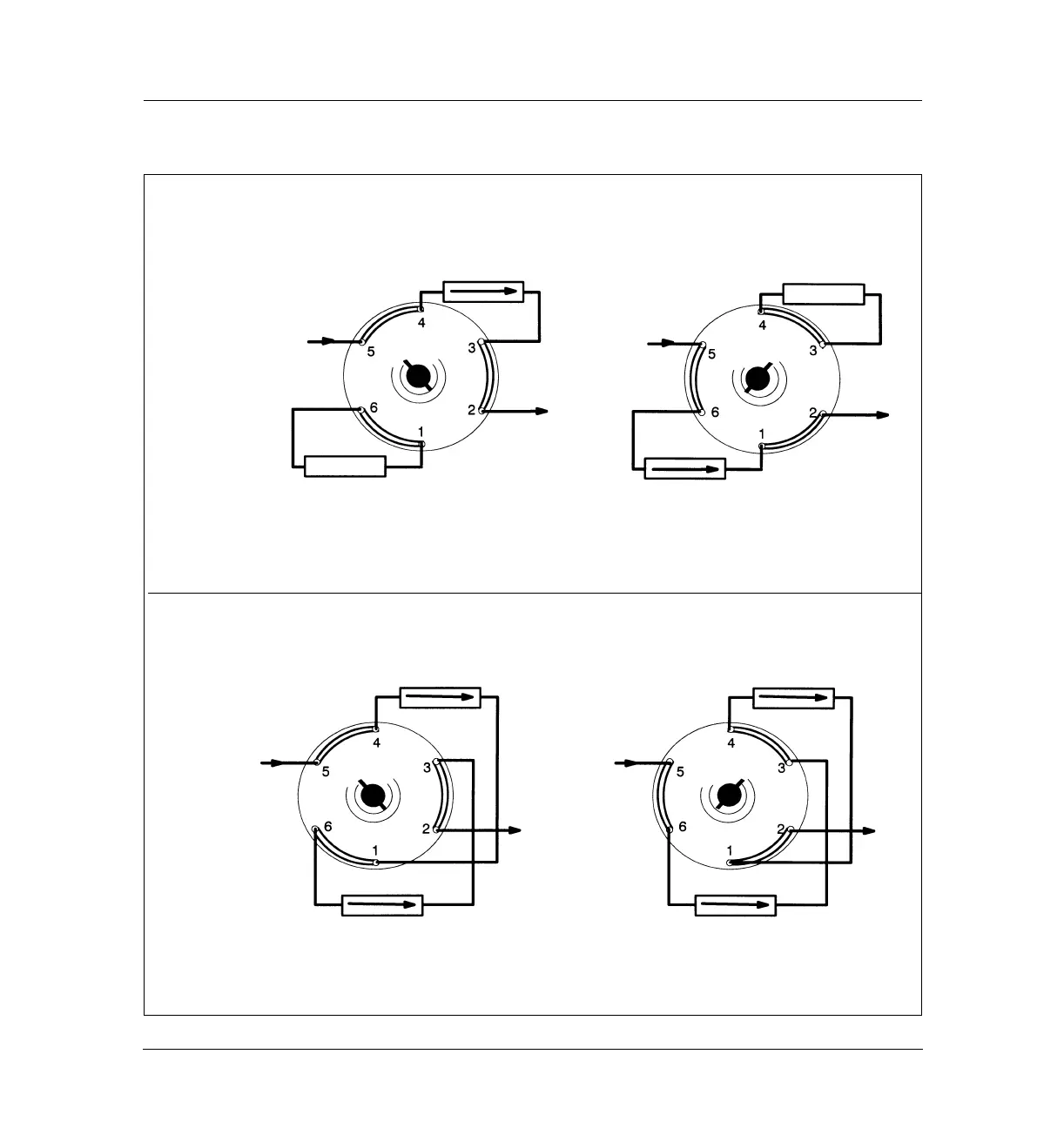

Typical Valve Configurations 1140
Column 1
Column 2
OFF
ON
Column Selection (Unused Column Isolated), Option 706 or 736
Column 1
Carrier
Detector
Column 2
Carrier
ONOFF
Sequence Reverse, Option 707 or 737
From Flow controller,
Inj. Port or GSV
