Agilent 7100 Capillary Electrophoresis System User Manual 59
Installing the Instrument 3
Installing the Instrument

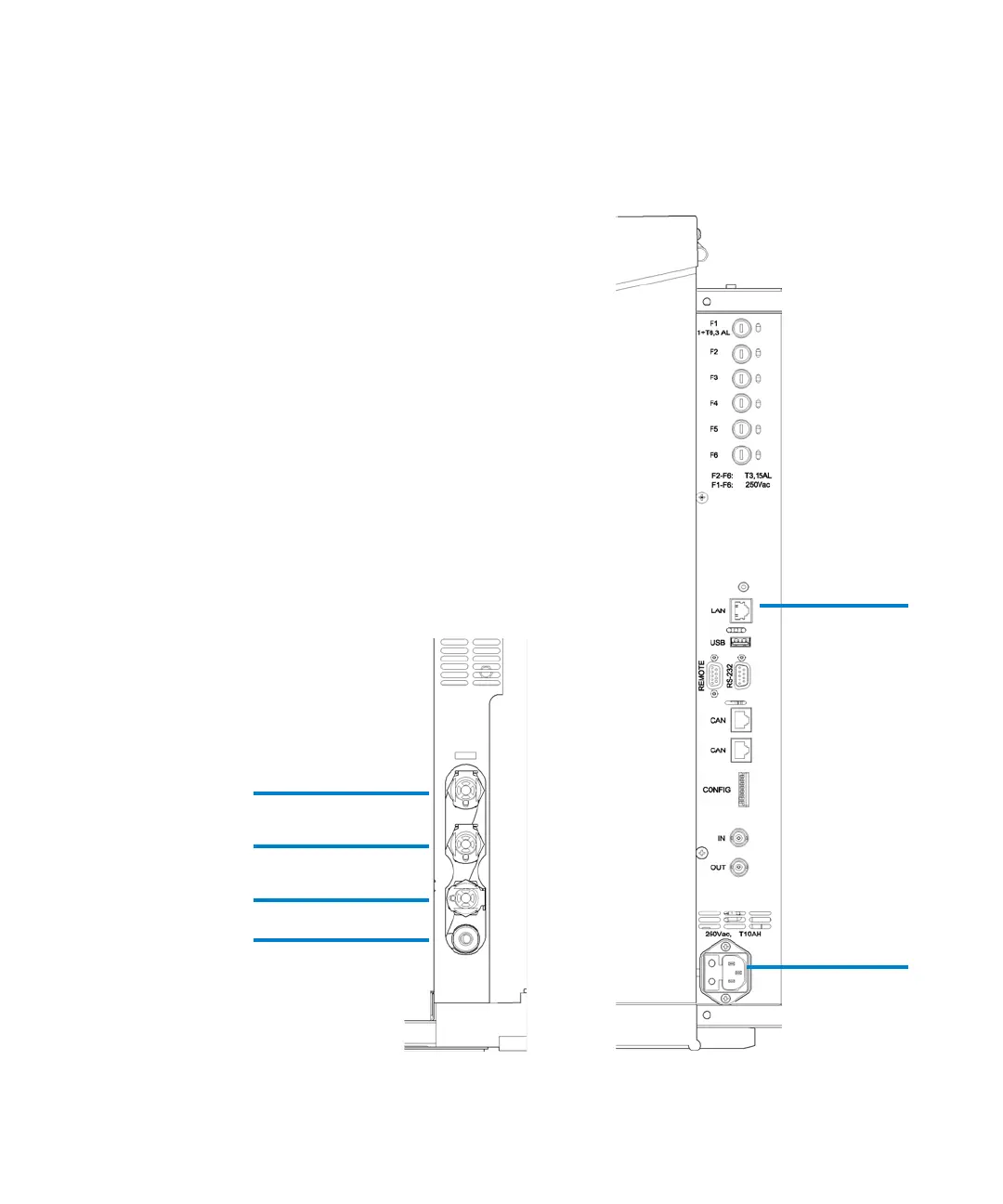

Figure 2 Connections on the rear of the instrument
Electrical connectors
Connectors for liquids
and external pressure
LAN connector
Line power
Liquid cooling
Liquid cooling
External pressure connector
Drainage
in connector
out connector
supply
