A Accessories and platepads
Installing and setting up a Vacuum Filtration Station
122
Bravo Platform User Guide
To connect the Vacuum Filtration Station using the pinch-valve module:
1 Ensure that the vacuum source is turned off.
2 Connect the tubing from the vacuum control valve-and-gauge assembly (1) to the
open three-way connector tubing on the pinch-valve module assembly (2).

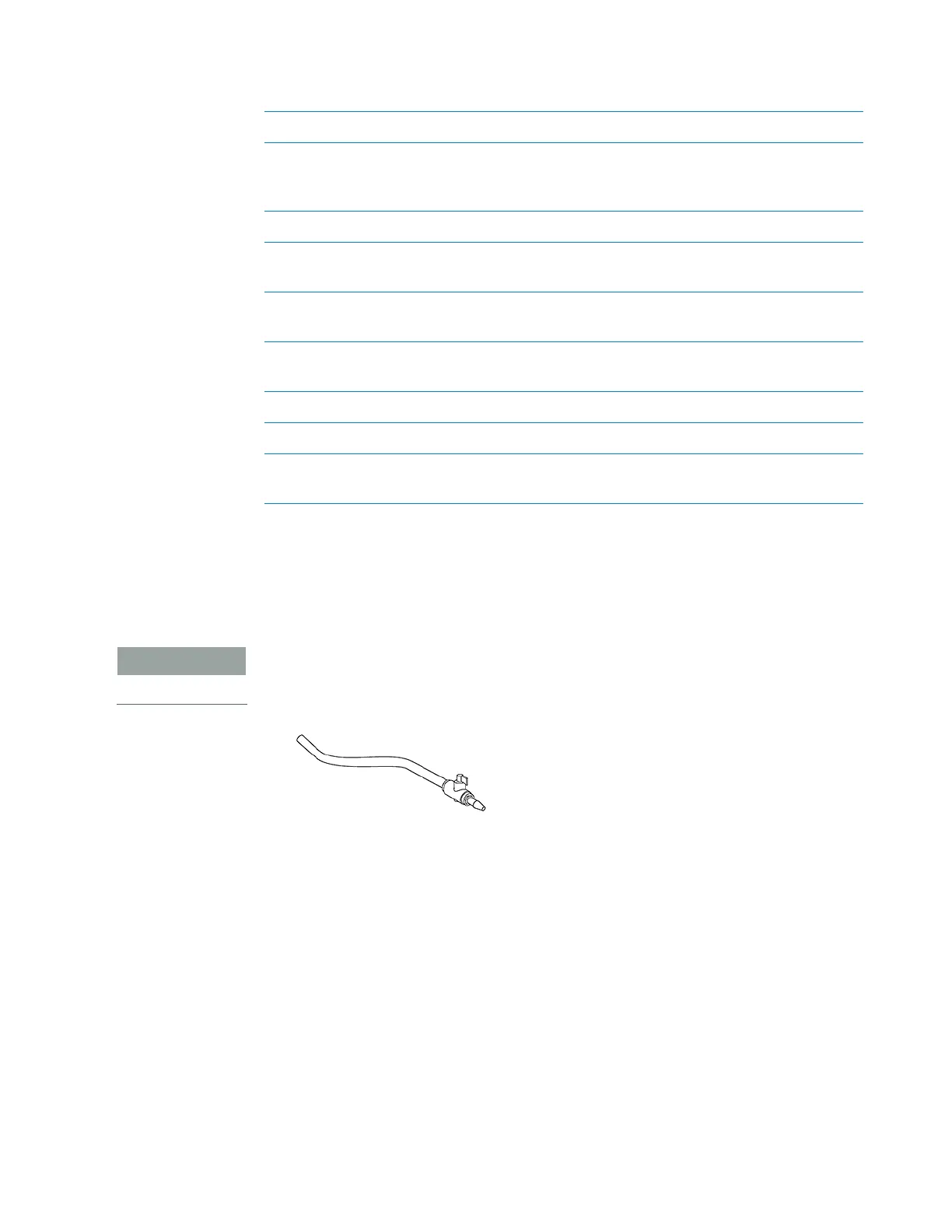

If you are installing the control valve-and-gauge assembly with the optional on/off
toggle switch, ensure that the toggle switch is in the on position (handle in line with
valve body), as the following figure shows.
Note: The remaining tubing from the three-way connector is pre-assembled: One
tube connects to the vent port, and the second tube connects through the valve
port.
3 Connect the open end of the pinch-valve tubing from the valve port (2) to a port on
the waste bottle (3).
4 Connect tubing between the second port of the waste bottle (3) and an in-line filter
(4).
5 Connect the tubing between the in-line filter and the vacuum source (5).
6 Connect the power cable (6) from the pinch-valve module to an AC outlet.
7 Connect the communications cable (7) from the pinch-valve module to a com port
on the controlling computer.
• Pinch-valve
module
Houses the electronics that communicate with the
software to automatically open, close, or vent the
vacuum pressure.
• Vent port Routes the vent tubing on the pinch-valve module.
• Valve port Routes the tubing from the vacuum source to the
Vacuum Filtration Station through the waste bottle.
3 Waste bottle and
tubing
Collects the waste solution from the filtration process.
4 Filter Prevents particulates from the entering the vacuum
supply.
5 House vacuum Provides the vacuum supply for the filtration process.
6 Power cord Connects the pinch-valve module to an AC outlet.
7 Communication
cable, serial
Connects the pinch-valve module to the com port on
the controlling computer.
Item Name Description
