137
A Accessories and platepads
Setting up a Trash or Filter Plate Holder accessory
Bravo Platform User Guide

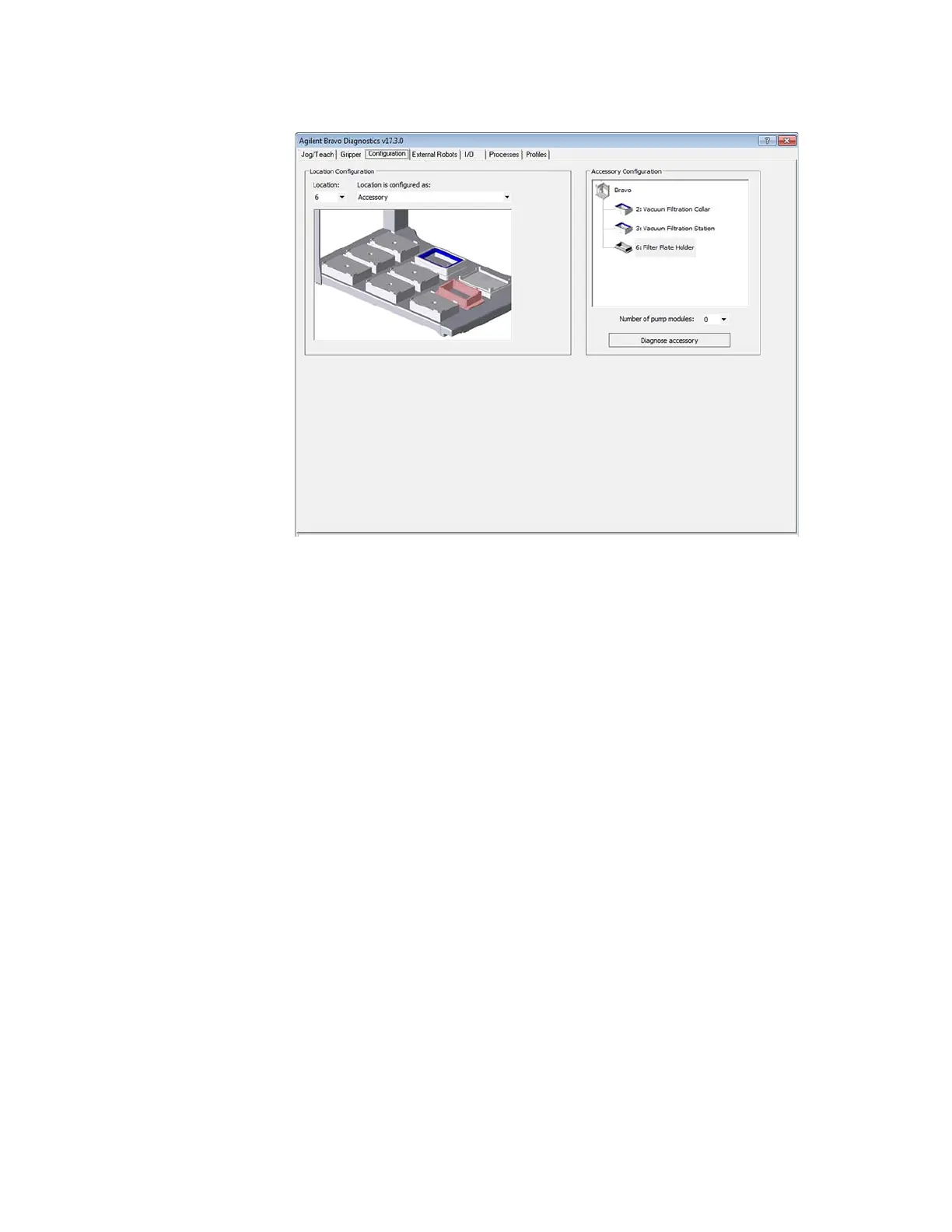

Figure
Filter Plate Holder in the Configuration tab
9 In the Profiles tab, click Update this profile.
When authoring protocols in the VWorks software, use the Place Plate task in the Bravo
Subprocess to move filter plates or other microplates to this Bravo accessory location.
You may specify which Labware Class is allowed at this location. For example, you
might want to allow only filter plates at this location. For more details on Labware
Classes, see the VWorks Automation Control Setup Guide. For more details on how to
create a protocol, see the VWorks Automation Control User Guide.
Configuring the Trash location in the software
If you plan to use the accessory for a trash location only, no trash configuration is
required in Bravo Diagnostics. Instead, you configure the accessory location as static
labware in the protocol Bravo Subprocess. In the Configure Labware dialog box, ensure
that you select a tip trash “labware” at the corresponding deck location. In the Bravo
Subprocess, use the Tips Off task to eject the pipette tips at the Tip Trash Bin
accessory. The following figure shows an example protocol. For more details, see the
VWorks Automation Control User Guide.
