A Accessories and platepads
Installing and configuring the Peltier Thermal Station
168
Bravo Platform User Guide
Installing the Peltier Thermal Station
To install the Peltier Thermal Station:
1 Uninstall the platepad, if applicable, from either deck location 4 or 6.
To uninstall a platepad, remove the M6 flathead screw from the center of the
platepad. Remove the platepad from the deck.

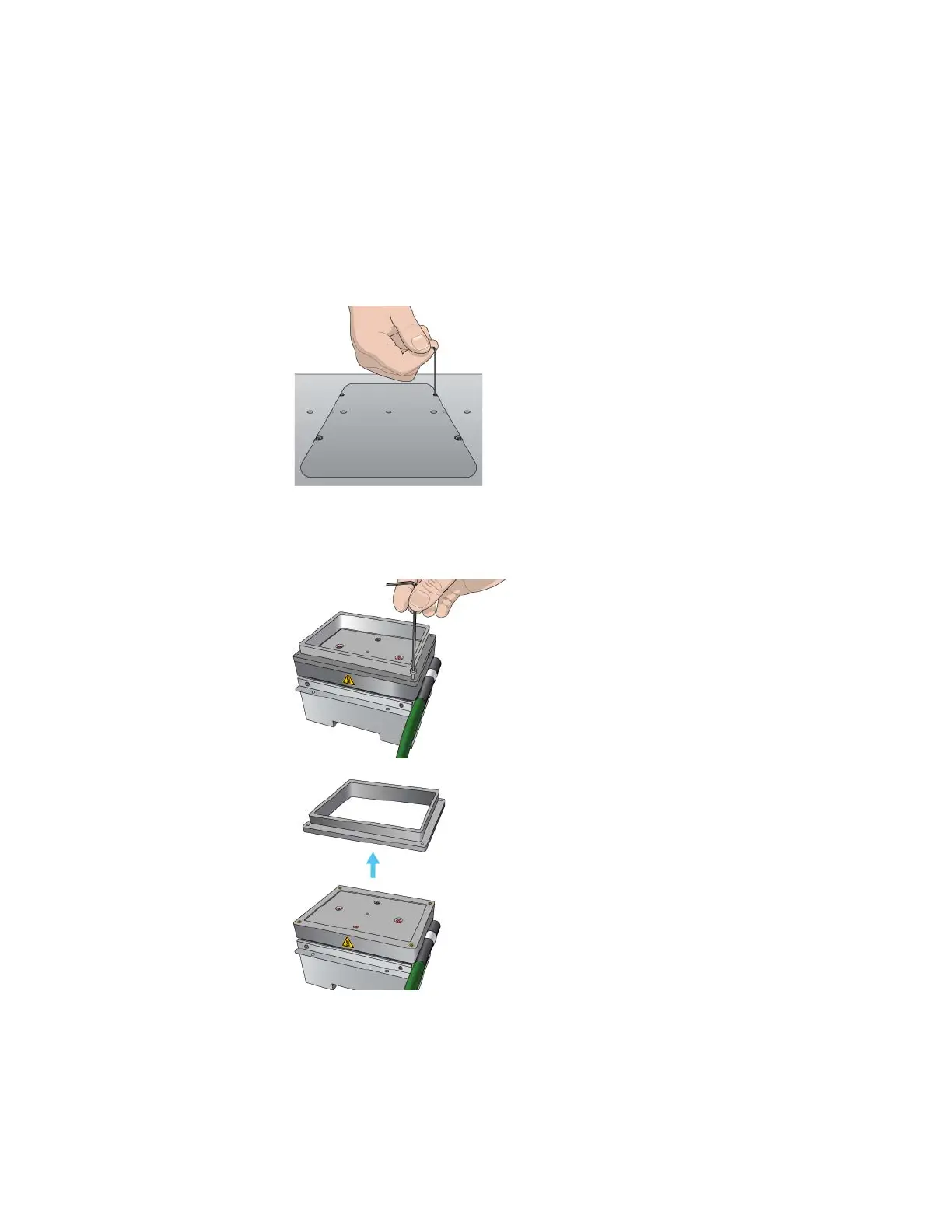

2 Remove the four M3 screws that attach the cutout cover to the deck.
Figure
Cutout cover on the Bravo deck
3 Uninstall the plastic interface from the top of the Peltier Thermal Station by
removing the four screws located at the four corners.
Figure
Plastic interface on the top of the Peltier Thermal Station
4 Refer to the following figure, and then place the Peltier Thermal Station assembly
into the cutout hole as follows:
