1 Introduction
Hardware overview
Bravo Platform User Guide
Axes of motion
The Bravo Platform has components that move in the x-, y-, and z-axes, as the following
figure shows.

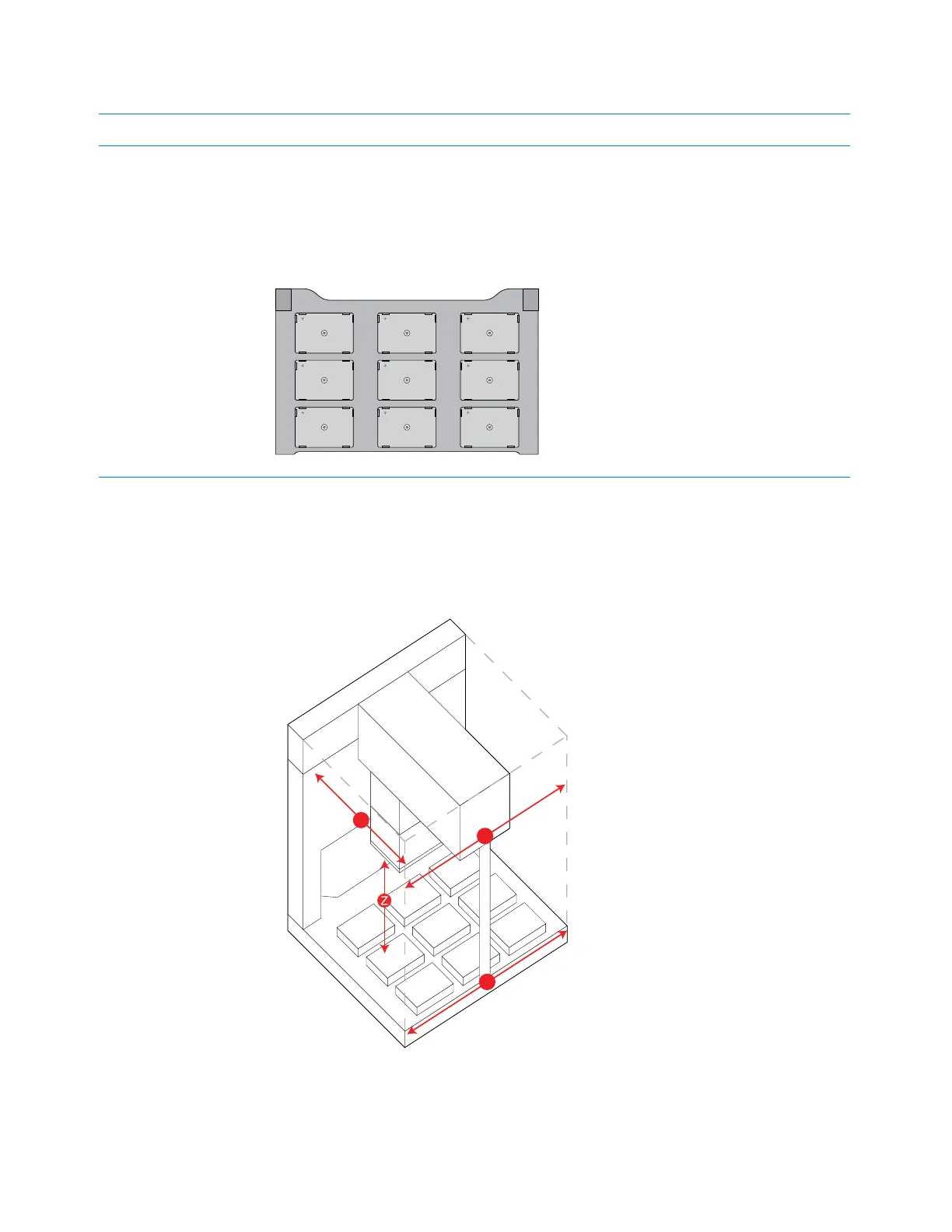

Figure
Bravo Platform primary axes of motion
If the Bravo Platform is fitted with a gripper, the gripper moves with the Bravo head. In
addition, the gripper has the following axes of motion:
8 Deck The area that is accessible by the liquid-handling head. The deck supports nine deck
locations that are numbered 1–3 (back row), 4–6 (middle row), and 7–9 (front row).
Each deck location holds a platepad or an accessory. The Bravo Platform ships with
nine platepads, one on each location. You may remove a deck-mounted platepad to
install certain accessories.
Figure
Nine deck locations (top view)
Item
Feature Description
00240
Bravo
Plate Orientation
123
456
789
00240
00232
Bravo
Pinch Hazard
00232
X
Y
X
