A Accessories and platepads
(Bravo SRT only) Setting up an LT tip box location
174
Bravo Platform User Guide

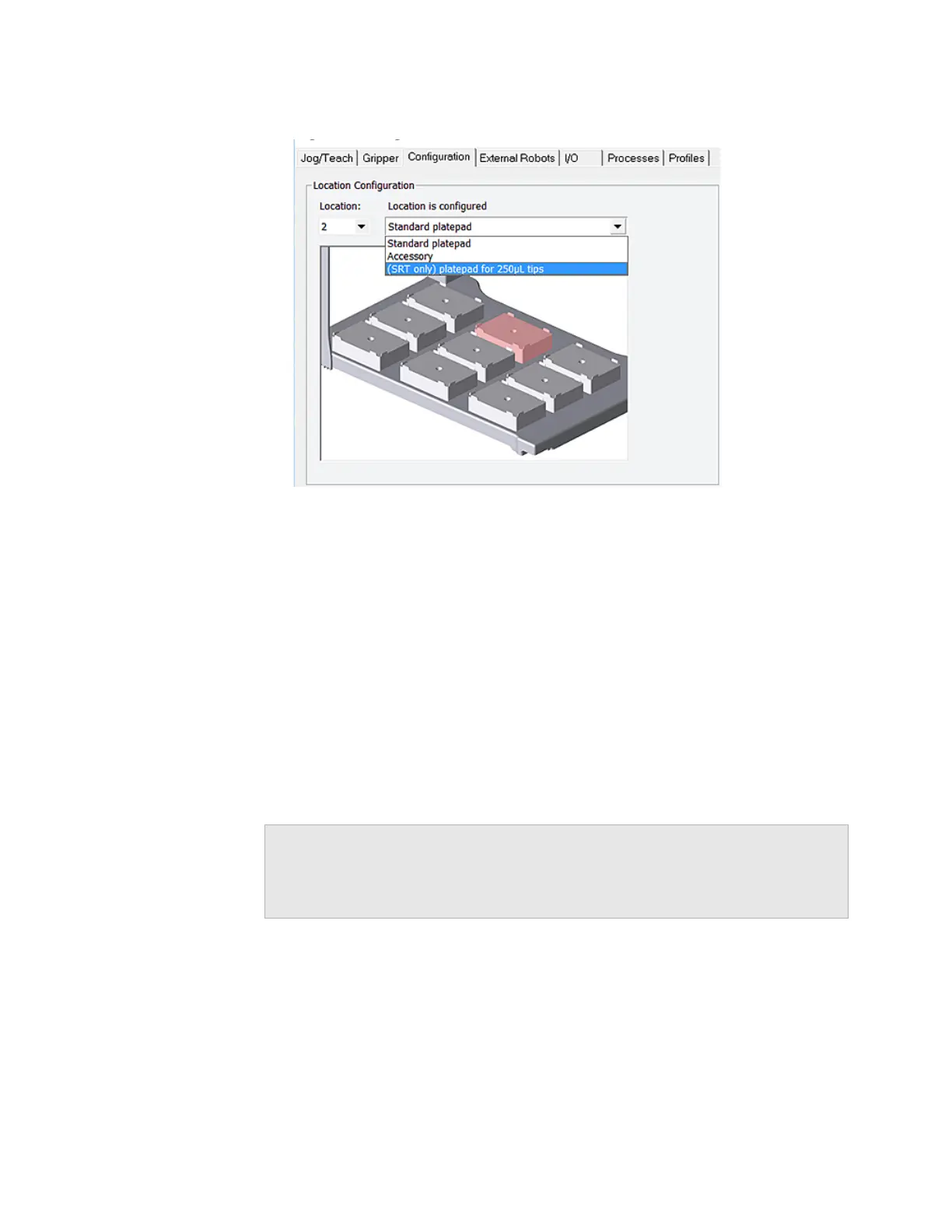

4 In the Location is configured as list, select (SRT only) platepad for 250 µL tips.
5 Click the Jog/Teach tab, and teach the deck location using the crosshairs on the
platepad. See “Setting teachpoints” on page 34.
If you previously taught this deck location using the Set all teachpoints based upon
selected teachpoint feature, you can:
a Select the platepad Location, and click Move to go to the preset teachpoint.
b Using small increments, jog down in the z-axis until you have paper-thin z-axis
clearance between the pipette tip and the crosshairs.
c When the tip is in the correct position (directly over the crosshairs with paper-
thin clearance), click Teach.
Note: Although the 250-µL tip box actually sits on the Bravo SRT deck, the software
makes an adjustment in the z-axis to compensate for the height difference.
6 In the Profiles tab, click Update this profile.
Related information
For information about... See...
Starting Diagnostics “Opening Bravo Diagnostics” on page 24
Editing teachpoints “Setting teachpoints” on page 34
