213
D AssayMAP Bravo Platform
Installing and using the Bravo 96AM Head
Bravo Platform User Guide

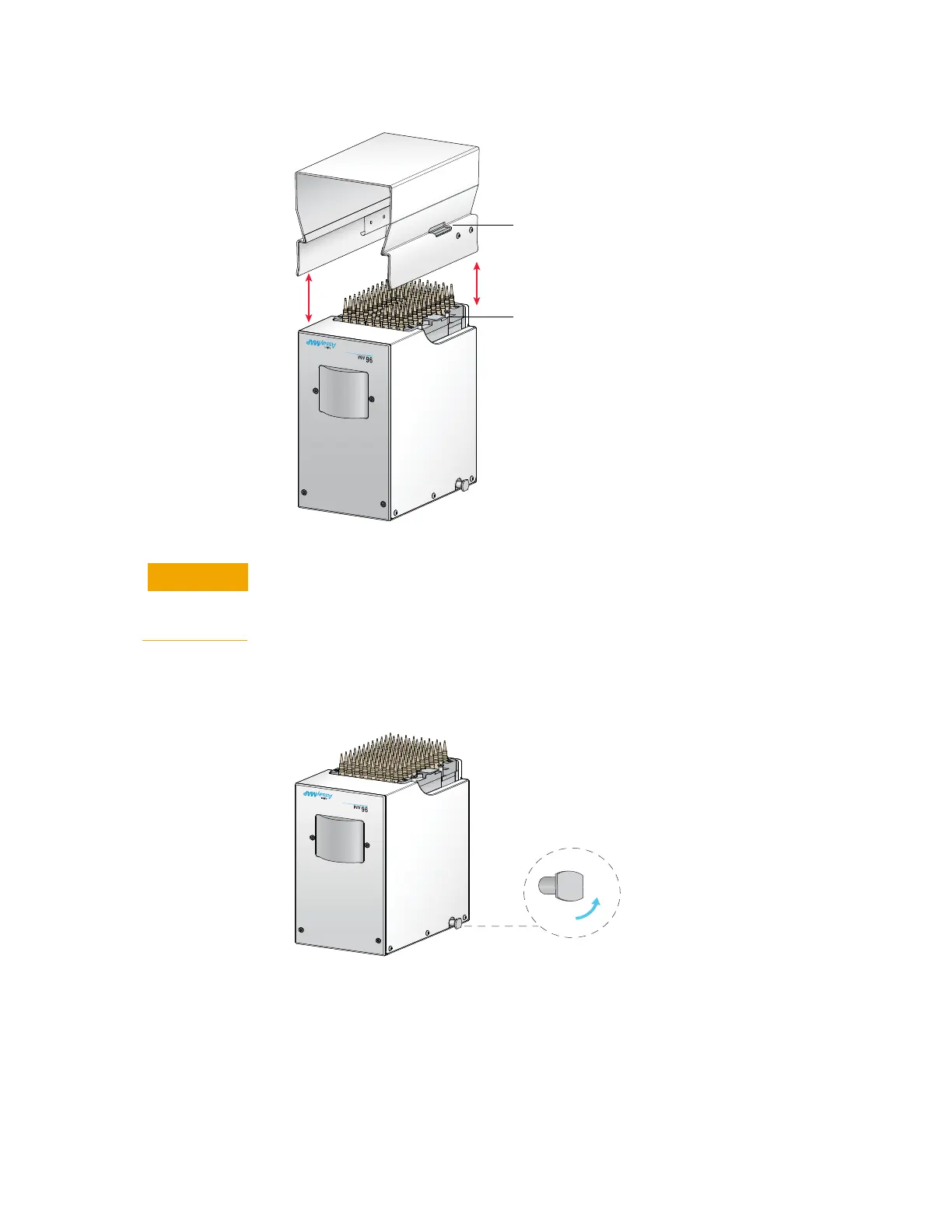

Figure
Removing or inserting the stand on the Bravo 96AM head
Placing the probes of the 96AM Head (bottom of head) on any surface can damage
the probes. To protect the probes when the head is not mounted on the Bravo
Platform, place the top of the head on a clean, stable surface so that the probes are
facing upward. For storage, use the storage stand.
To install the Bravo 96AM Head:
1 On the head, twist the two head-retainer pins one-quarter turn so that they are in a
vertical orientation. (The pins will snap back into place when you install the head.)
2 With your left hand, firmly grip the left side of the head. Place your right hand under
the flat area just to the left of the syringe array to support the weight of the head.
3 While supporting the head with your hands, slide the head onto the Bravo head
mount. Press the head firmly into place to ensure the head is plugged into the
connector receptacle on the head mount. You should hear the click when the
retaining pins snap into place.
1
2
