Jog/Teach tab quick reference
Bravo Platform User Guide

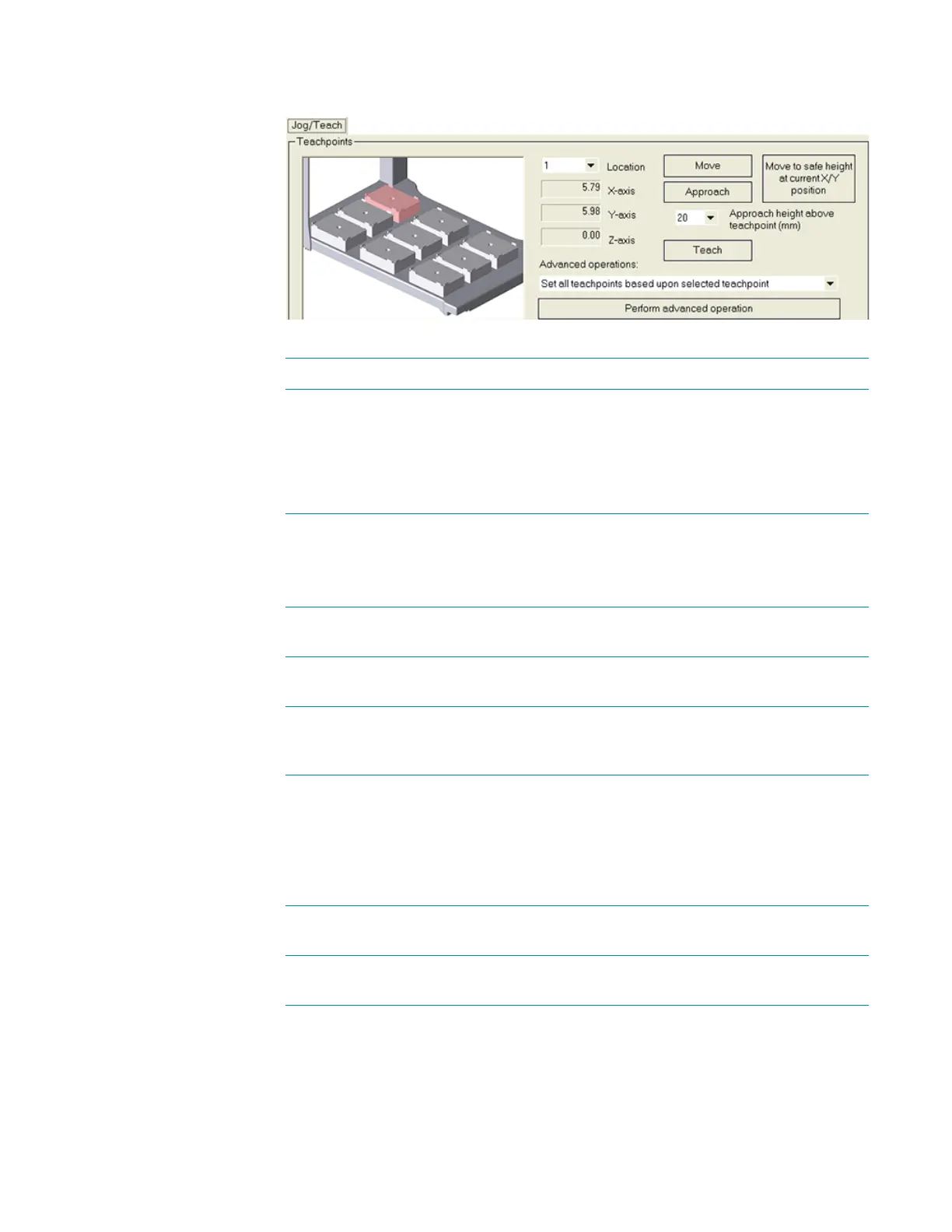

Controls and indicators
Control or indicator Description
Graphical display of Bravo
deck
Provides an interactive display that enables you to
specify deck locations and monitor the liquid-
handling head movement. The highlighted location
indicates the location of the liquid-handling head.
You can move the head in real time by right-clicking
a location and selecting a command.
Location Specifies the deck location for the liquid-handling
head movement or to set a teachpoint.
You can use either the deck graphical display or the
Location list to specify the location.
X-axis, Y-axis, and Z-axis
displays
Provide the current teachpoint coordinates for the
selected deck location.
Move Moves the liquid-handling head to the teachpoint for
the selected deck location.
Approach Moves to the specified approach height above the
teachpoint, or configured accessory, for the
selected deck location.
Approach height above
teachpoint/accessory (mm)
Specifies a vertical offset that is used when you
click Approach to move the liquid-handling head
above a teachpoint.
If an accessory was configured in Diagnostics at
the selected location, the software adds the vertical
offset to the stored height of the accessory.
Move to a safe height at
current X/Y position
Moves the liquid-handling head to the z-axis safe
position that is specified in the profile.
Teach Saves the teachpoint coordinates for the deck
location.
