Agilent Technologies U3606A - Output Verification Test Setup; Figure 5-4 Test Setup for Frequency Gain Verification; Figure 5-5 Test Setup for CV Programming and Readback Accuracy

Verification and Performance Tests 5
Input Connections
U3606A User’s and Service Guide 143

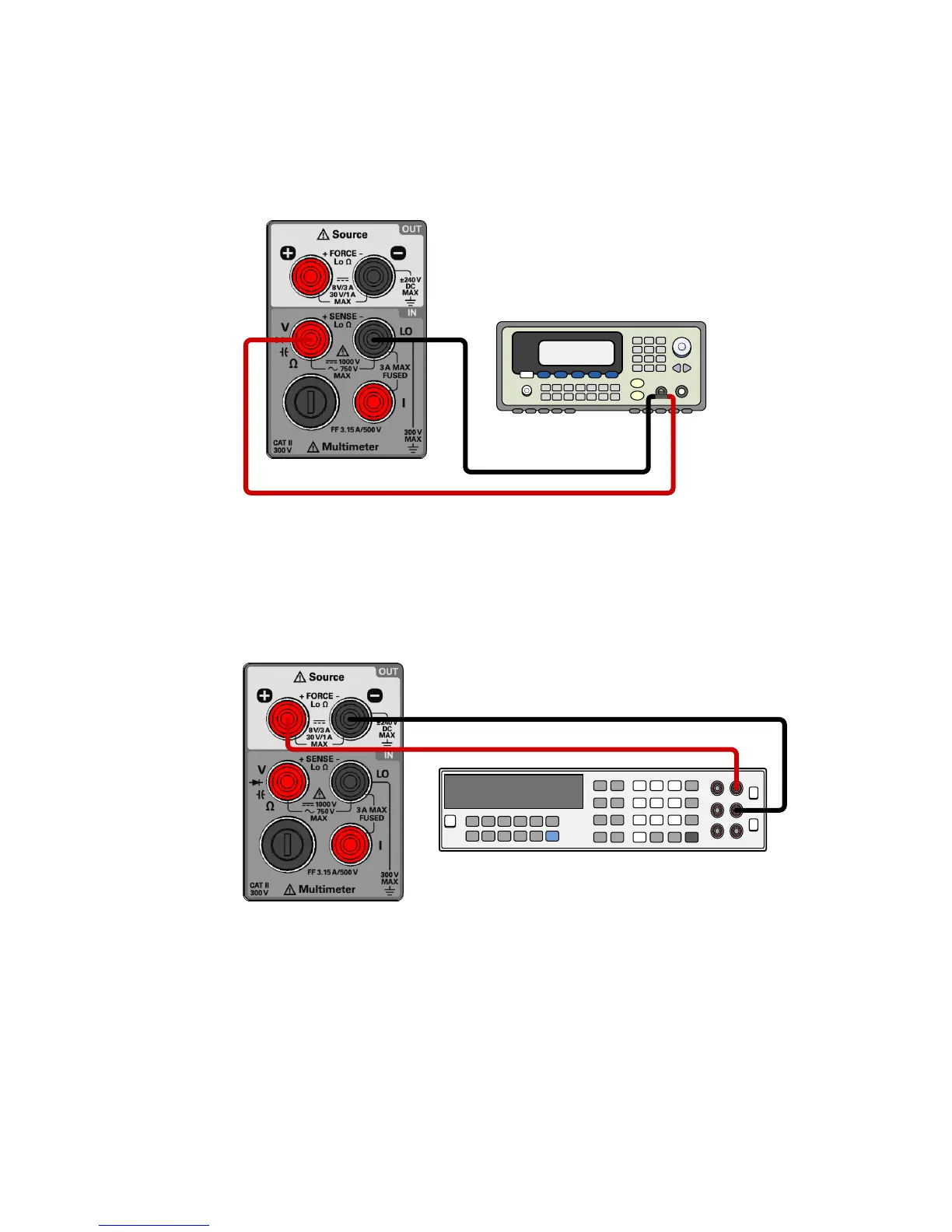

Figure 5-4 Test setup for frequency gain verification
Output verification test setup
Figure 5-5 Test setup for CV programming and readback accuracy verification
Function/Arbitrary
waveform generator
BNC
Digital multimeter
