Agilent Technologies U3606A - Figure 5-8 Test Setup for Load Transient Response Time Verification; Figure 5-9 Test Setup for CC Programming and Readback Accuracy

Verification and Performance Tests 5
Input Connections
U3606A User’s and Service Guide 145

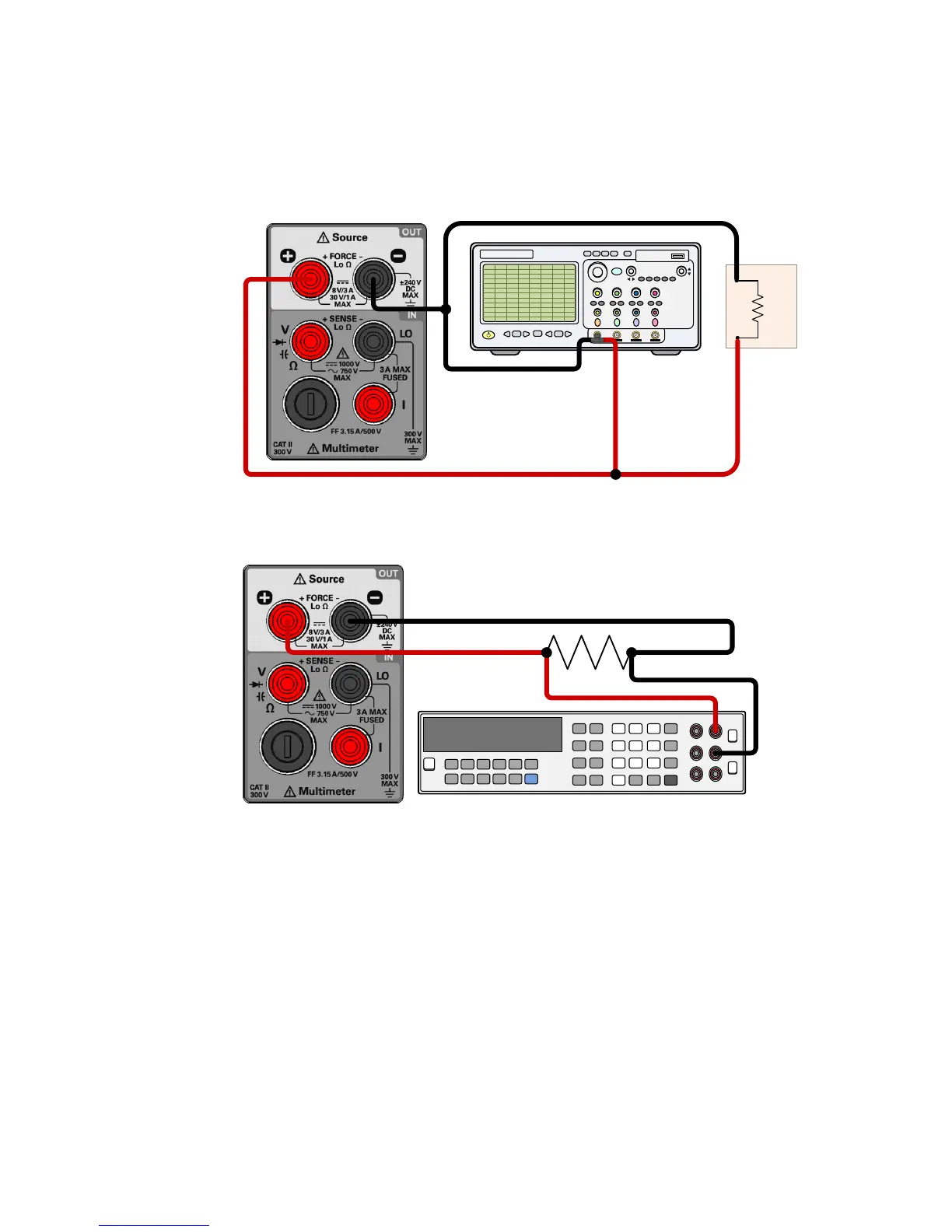

Figure 5-8 Test setup for load transient response time verification
Figure 5-9 Test setup for CC programming and readback accuracy verification
4321
LOAD
Oscilloscope
Electronic load
BNC
Digital multimeter
Current monitoring resistor
