Performing resistance (2-wire) measurements
Making the connections
Connect the test leads as shown below:

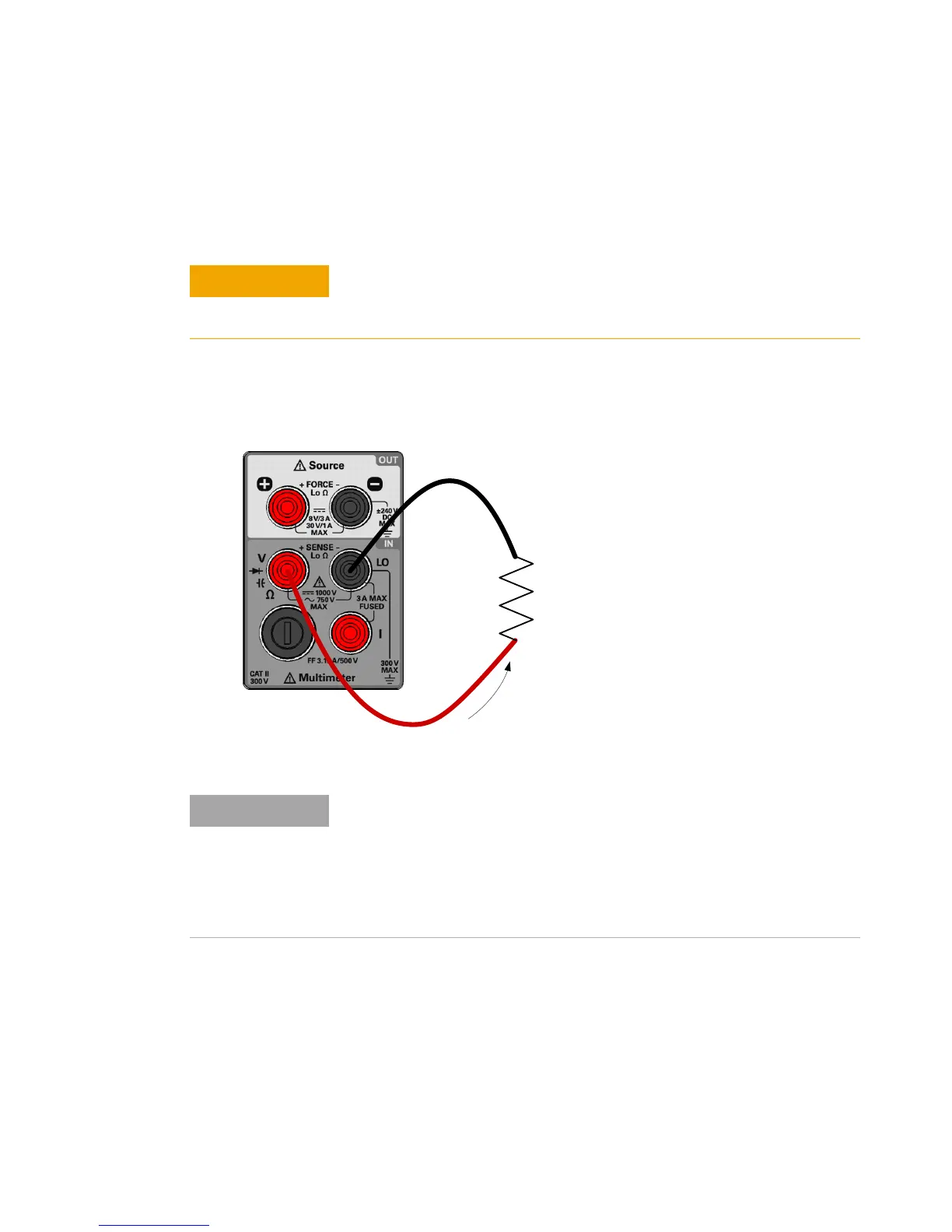

Figure 2-3 Terminal connections for 2-wire resistance measurements
Disconnect circuit power and discharge all high-voltage capacitors
before measuring resistance or conductance, or testing circuit
continuity, to avoid damaging the U3606A or the device under test.
• The U3606A will automatically select a suitable range for 2-wire
resistance measurements by default (autoranging). To manually select
a range, see “Selecting a Range” on page 54 for more information.
• The U3606A resolution is set to 5½ digits by default. To change the
resolution, see “Setting the Resolution” on page 55 for more
information.
