2 Digital Multimeter Operation
Making Measurements
32 U3606A User’s and Service Guide
Measuring AC+DC current
The U3606A Multimeter|DC Power Supply includes a true- rms multimeter
that returns an accurate rms reading not only for sine waves, but also
other AC signals such as square, triangle, and staircase waveforms without
any DC offset. However, you may choose to return the measured AC signal
with DC offset by using the AC+DC function.
The AC+DC current measurement measures AC current with DC offset.

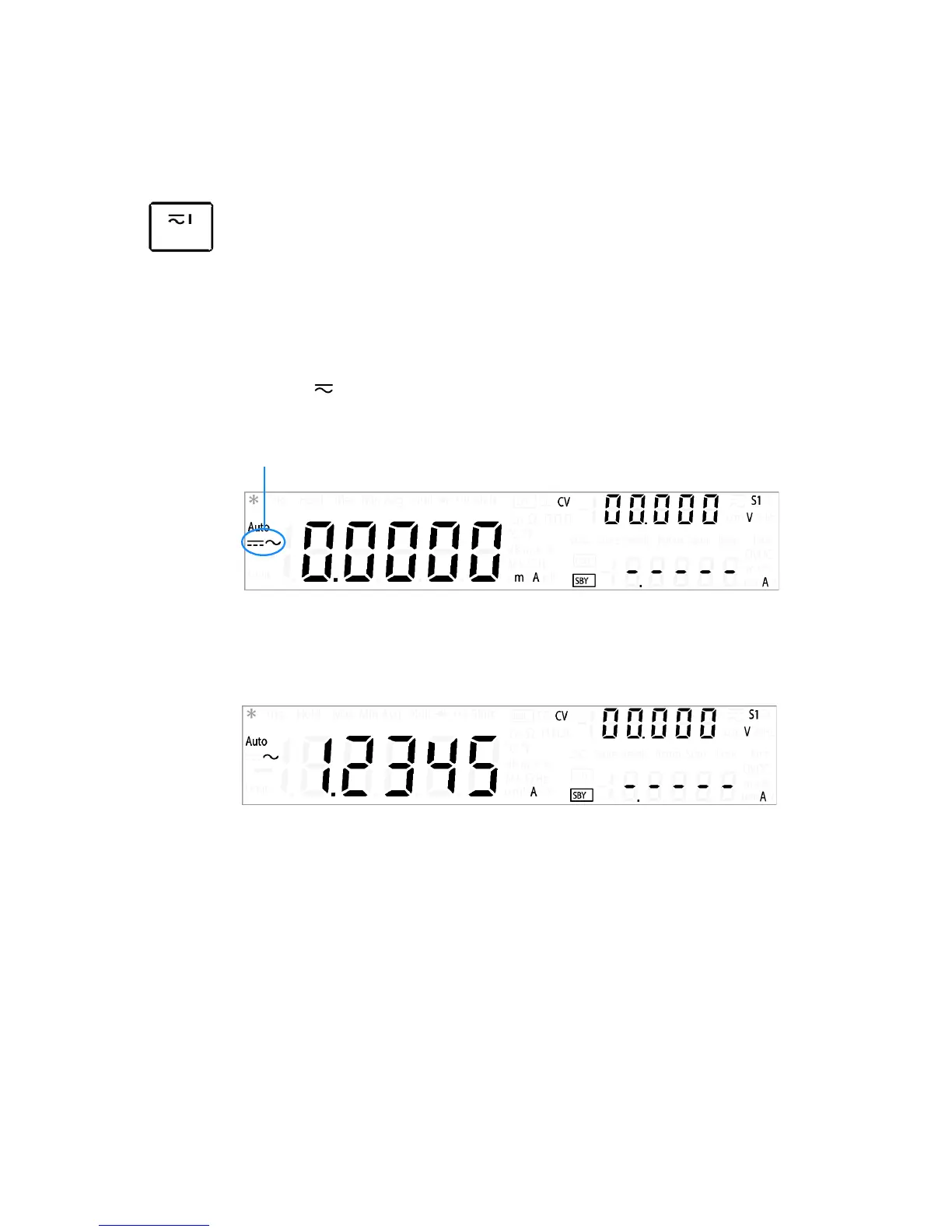

1 Press again (until the AC+DC annunciator is shown on the display)
to make AC+DC current measurements.
2 Connect the red and black test leads to input terminals I (red) and
LO (black) respectively as shown in Figure 2- 2.
3 Probe the test points and read the display.
To Next Page
