CC output adjustment procedure — front output terminals
Review the “Test Considerations” on page 140 and “Input Connections” on
page 141 sections before beginning this procedure.

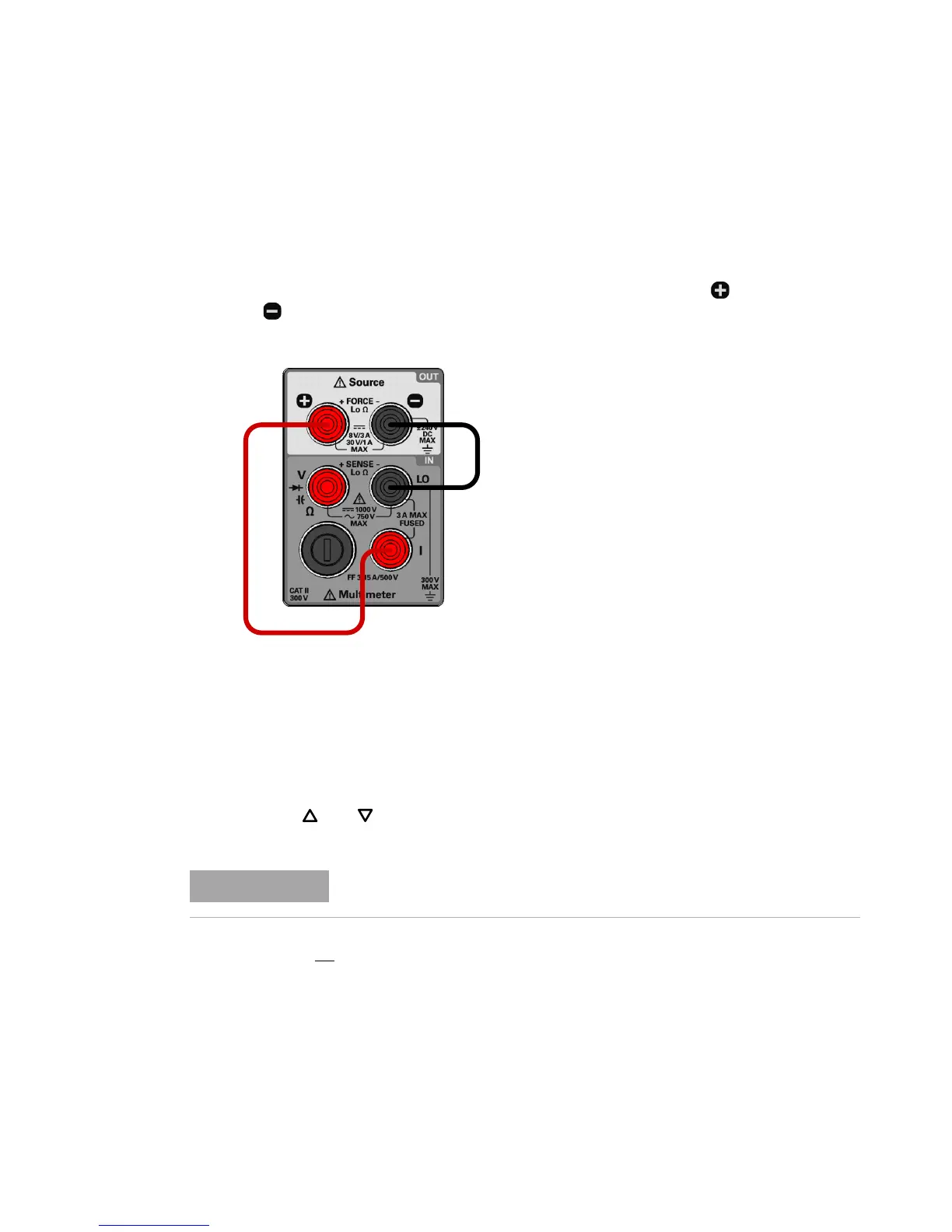

1 Turn off the instrument and connect the front panel (red) and
(black) output terminals to the I (red) and LO (black) input
terminals.
2 Turn on the instrument. Press Current to enter the constant current
output calibration. Ensure that the S2 (8 V/3 A) range is selected (the
S2 annunciator is illuminated). Press Current again if it is not.
3 The primary display will show the uncalibrated value and the upper
secondary display will show the reference level of the adjustment item.
4 Configure each adjustment item shown in Table 6- 11.
5 Use or to select the adjustment item.
6 Press to start the adjustment. The display “CALib” in the lower
secondary display starts flashing to indicate that the calibration is in
progress.
• Successful completion of the adjustment is indicated by a short beep
and the primary display briefly showing “PASS”.
Always complete tests in the same order as shown in Table 6-11.
