Allen-Bradley 20F Installation Instructions

58 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive
See page 88 for dimensions of drives with cabinet options.

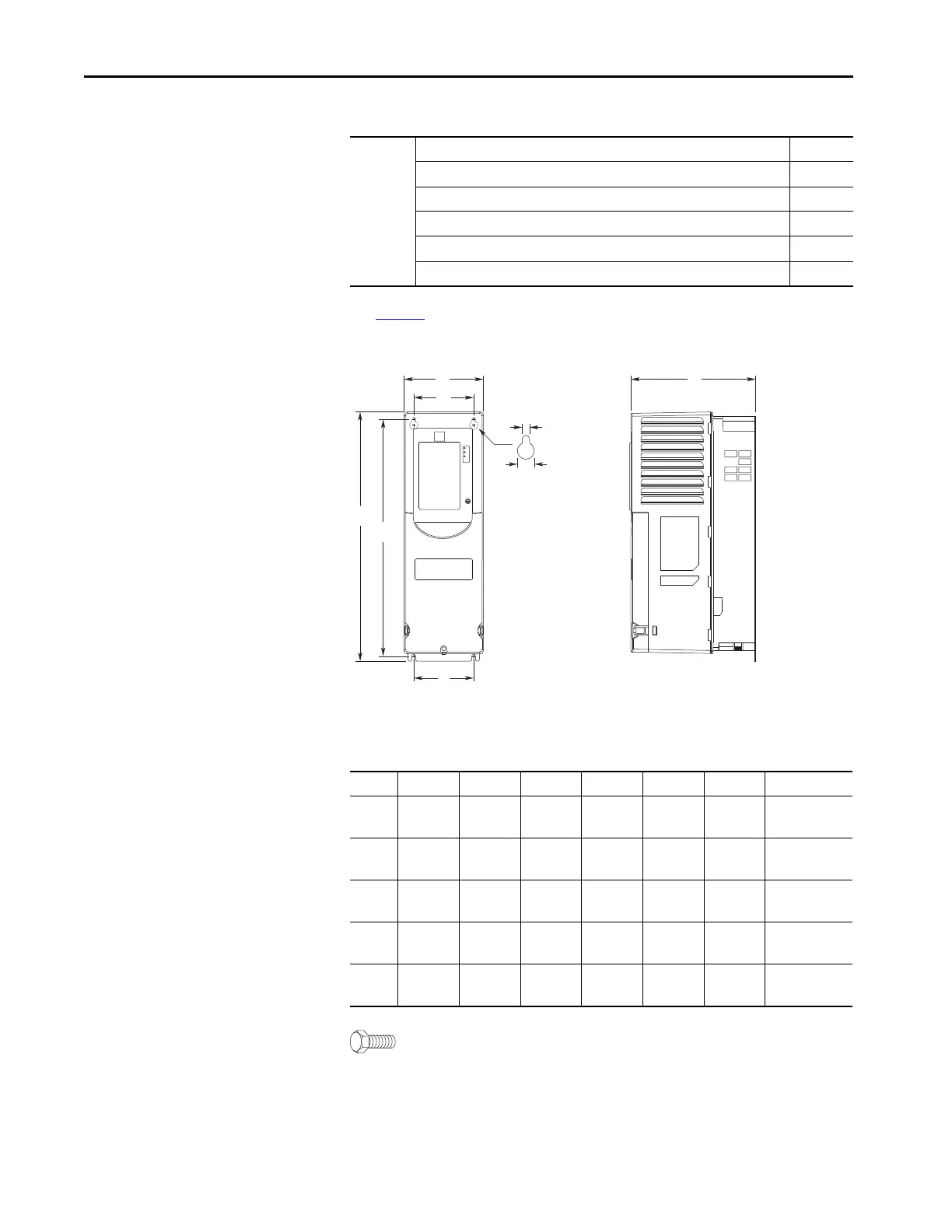

Figure 23 - IP20, NEMA/UL Open Type, Wall Mount Frames 1…5 (Frame 2 Shown)
Dimensions are in millimeters and (inches).
Weights are in kilograms and (pounds).
M6 (#10 or #12) mounting hardware recommended.
10 IP20, NEMA/UL Type 1, MCC style cabinet, 600 mm (23.6 in.) deep 82
IP20, NEMA/UL Type 1, MCC style cabinet, 600 mm (23.6 in.) deep, bottom access 83
IP20, NEMA/UL Type 1, MCC style cabinet, 800 mm (31.5 in.) deep 84
IP20, NEMA/UL Type 1, MCC style cabinet, 800 mm (31.5 in.) deep, bottom access 85
IP54, NEMA 12, MCC style cabinet, 800 mm (31.5 in.) deep 86
IP54, NEMA 12, MCC style cabinet, 800 mm (31.5 in.) deep, bottom access 87
Frame A B C D E F Weight, kg (lb)
1 110.0
(4.33)
400.5
(15.77)
211.0
(8.31)
68.0
(2.68)
82.0
(3.23)
390.4
(15.37)
6.0
(12.75)
2 134.5
(5.30)
424.2
(16.70)
212.0
(8.35)
100.0
(3.94)
100.0
(3.94)
404.2
(15.91)
7.8
(17.2)
3 190.0
(7.48)
454.0
(17.87)
212.0
(8.35)
158.0
(6.22)
158.0
(6.22)
435.0
(17.13)
11.8
(26.1)
4 222.0
(8.74)
474.0
(18.66)
212.0
(8.35)
194.0
(7.64)
202.0
(7.95)
455.0
(17.91)
13.6
(30.0)
5 270.0
(10.63)
550.0
(21.65)
212.0
(8.35)
238.0
(9.37)
238.0
(9.37)
531.0
(20.91)
20.4
(45.0)
Table 8 - Dimension Drawing Index (Continued)
14.3 (0.56)
6.4 (0.25)
A
D
B
F
C
E
