Configure Digital Outputs
Use the Digital Outputs page to enter digital output values for the drive option
module. The Digital Outputs page applies only to a PowerFlex 755 drive that is
configured with a Digital I/O option module as a peripheral device. The
appearance of the Digital Outputs page varies dependent upon the option
module configuration.
Use the Digital Output page to assign specific actions to the outputs on the
I/O option module that is located in slot 7 of the drive.
See the electric drawings to observe that Digital Output 1 is wired in parallel to
Digital Output 2. From the 20-750-2263C-1R2T option module, relay 0 and
transistor 0 are wired in parallel.
The Logix controller can have logic written that may energize Output 2 when
the axis isn't running. This logic releases the motor brake, but only on
horizontal applications.

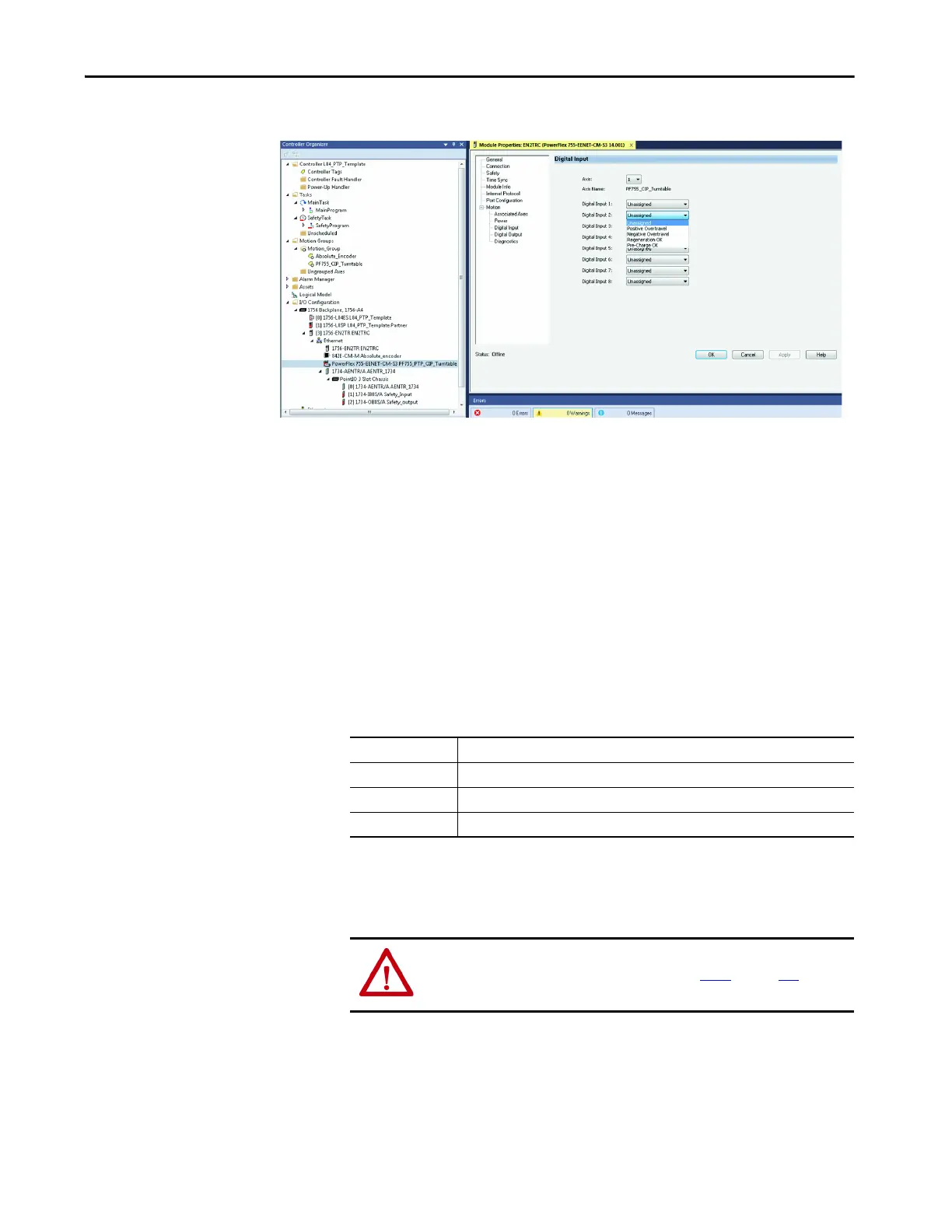

1. On the Module Properties dialog box, choose Digital Output.
Digital Output Description
1 20-750-2263C-1R2T Relay 0
2 20-750-2263C-1R2T Transistor Relay Output 0
3 20-750-2263C-1R2T Transistor Relay Output 1 (not used)
ATTENTION: Failure to observe this warning can result in machine damage
or personnel injury. Do not use Output 2 shown in step 4
on page 122, when
the application is vertical (Gravity can influence movement).
