Rockwell Automation Publication 750-UM006C-EN-P - March 2022 123
Configure and Start Up the Drive Chapter 4

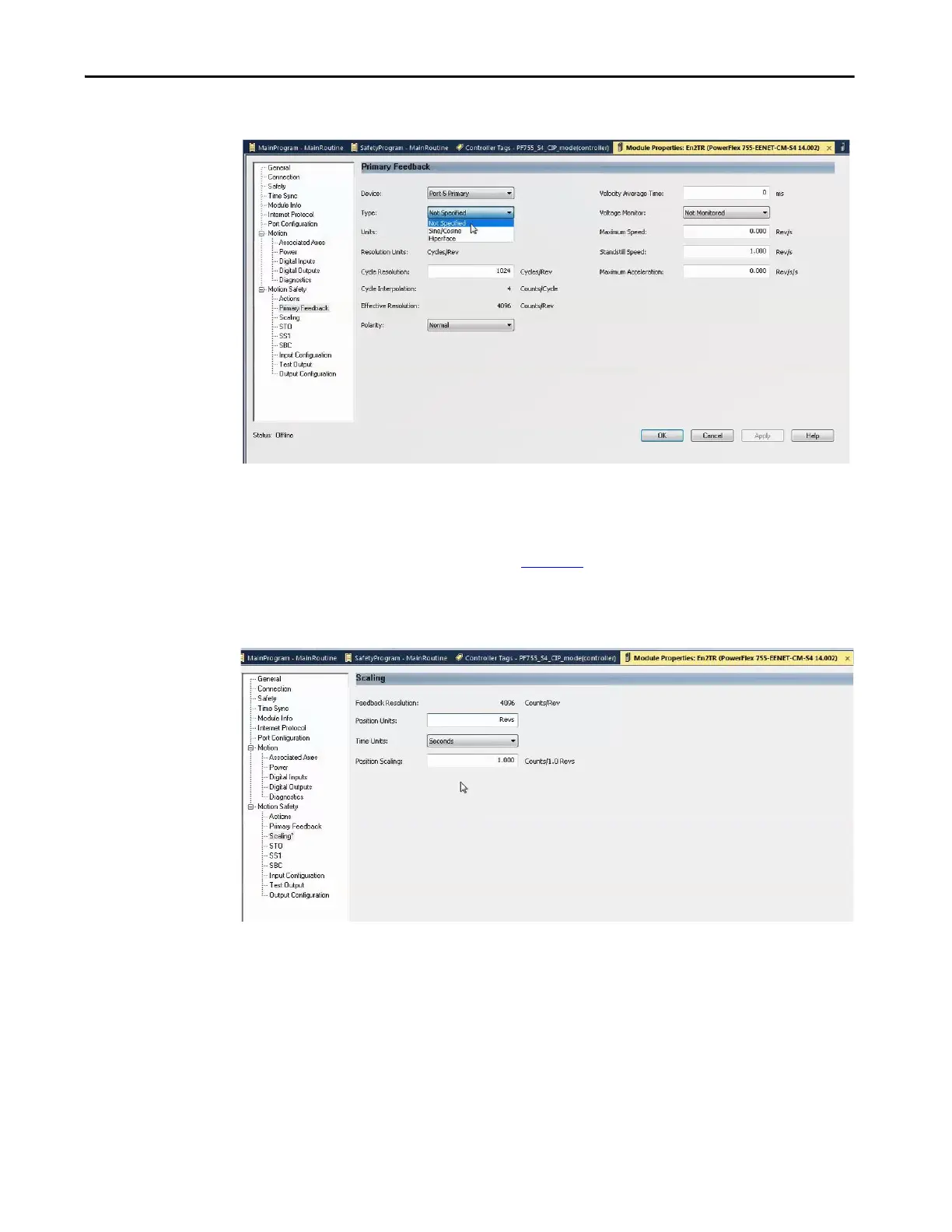

4. From the Motion Safety tree, choose Primary Feedback.
5. Change Type to Hiperface.
6. Click Apply to save changes.
7. From the Motion Safety tree, choose Scaling.
8. Change Scaling to Revs.
9. Click Apply to save changes.
Create a Motion Group
All axes must be configured properly and added to the Motion Group in your
project. If the axes remain ungrouped they are unavailable for use. For
TIP You could choose to set the Max. Motor Speed at this time, refer to the
PowerFlex 755/755T Integrated Safety Functions Option Module (S4),
publication 750-UM005
, for parameter and setup information.
