Allen-Bradley The PowerFlex 755 On-Machine - Page 39

Rockwell Automation Publication 750-UM006C-EN-P - March 2022 39
Install the Drive Chapter 3

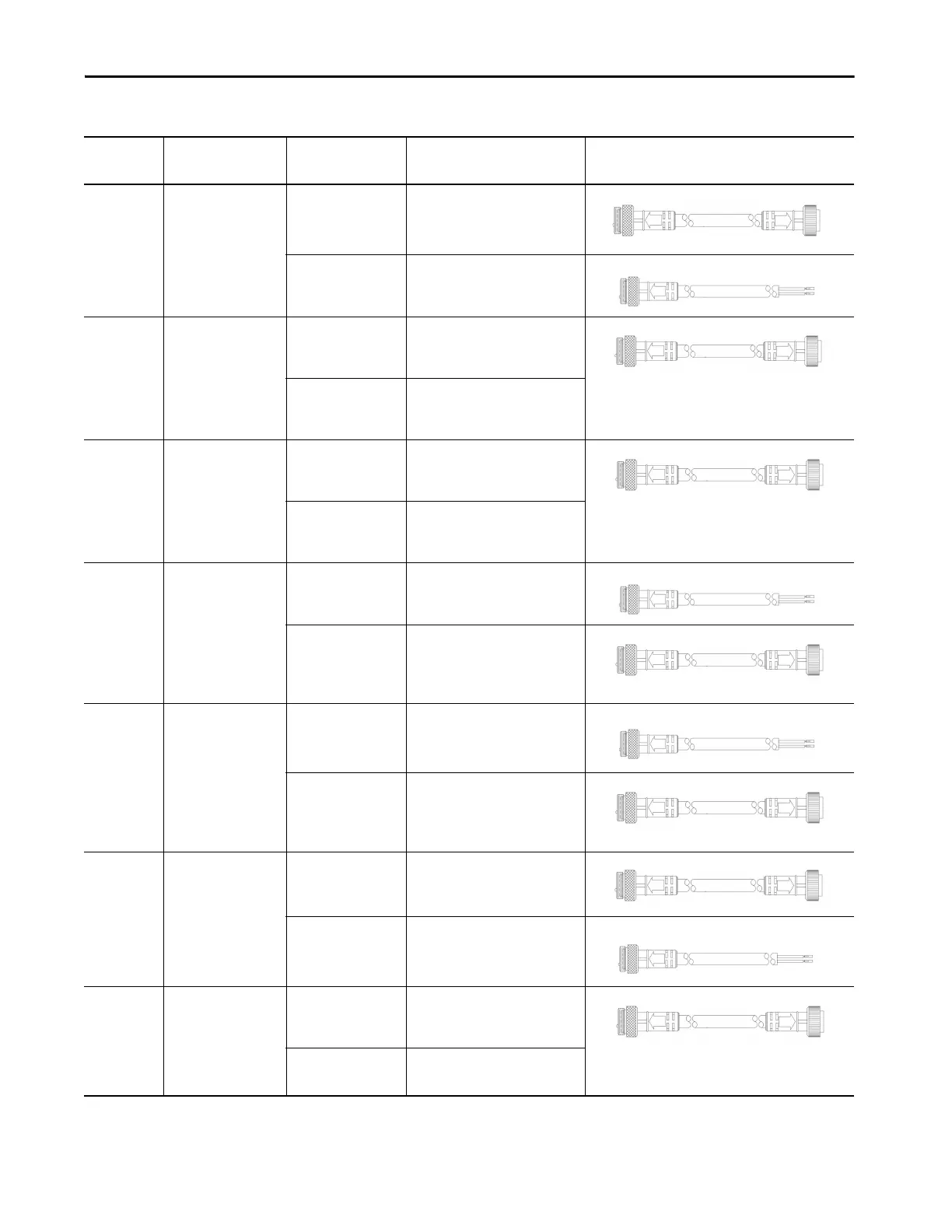

Table 4 - Cable Descriptions and Receptacle Information
Receptacle
Abbreviation
Receptacle Description Recommended
Interface Cable /
Connector
(2)
Cable Description Image
(4)
L123 Input Power Receptacle,
IN1, M35, 4-pin
280-PWRM35A-M* ArmorConnect Power Media - Trunk
Cable, IP67, UL 4/12, NEMA 6P, Straight
Female to Straight Male Patchcord,
10 AWG
280-PWRM35E-M* ArmorConnect Power Media - Trunk
Cable, IP67, UL 4/12, NEMA 6P, Straight
Female Cordset, 10 AWG
T123
(for drive rating
< 22 A)
Output Power Receptacle,
M29, 4-pin
284-PWRM29A-M* Shielded Motor patch cable assembly
With straight Male/Female receptacle
with leads, 29 mm Shell, 4-pin,
12 AWG
280-PWRM29A-M* Non-Shielded Motor patch cable
assembly With straight Male/Female
receptacle with leads, 29 mm Shell,
4-pin, 12 AWG
DBR
(for drive rating
<22 A)
Dynamic Brake
Receptacle, M29, 4-pin
284-PWRM29A-M* Shielded Motor patch cable assembly
With straight Male/Female receptacle
with leads, 29 mm Shell, 4-pin,
12 AWG
280-PWRM29A-M* Non-Shielded Motor patch cable
assembly With straight Male/Female
receptacle with leads, 29 mm Shell,
4-pin, 12 AWG
T123
(for drive rating
=22 A)
Output Power Receptacle,
M35, 4-pin
280-PWRM35G-M*
(3)
ArmorConnect Power Media - Trunk
Cable, IP67, UL 4/12, NEMA 6P, Straight
Male Cordset.
280-PWRM35A-M*
(3)
ArmorConnect Power Media - Trunk
Cable, IP67, UL 4/12, NEMA 6P, Straight
Male to Straight Female Patchcord
DBR
(for drive rating
= 22 A)
Dynamic Brake
Receptacle, M35, 4-pin
280-PWRM35G-M* ArmorConnect Power Media - Trunk
Cable, IP67, UL 4/12, NEMA 6P, Straight
Male Cordset.
280-PWRM35A-M* ArmorConnect Power Media - Trunk
Cable, IP67, UL 4/12, NEMA 6P, Straight
Male to Straight Female Patchcord
EMB1 or EMB2 Mechanical Brake
Receptacle, M24, 3-pin
285-BRC22-M*D Non-shielded patch cable assembly
with straight male / straight female
receptacle with leads, 22 mm shell,
3-pin, 16 AWG Conductors
285-BRC22D-M* Non-shielded patch cable assembly
with Straight Male receptacle with
flying leads, 22 mm shell, 3-pin,
16 AWG Conductors
CP 24V DC Control Power
Receptacle, mini, 4-pin
889N-F4AFNM-* Patchcord: Mini/Mini Plus, Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, Mini,
Male, Straight, 16 AWG
889N-F4AENM-D* 22 mm, 18 AWG, 300V, 10 A, 4-pin,
straight mini Male to straight Mini
Female
