Allen-Bradley The PowerFlex 755 On-Machine User Manual

40 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 3 Install the Drive
CPBR 24V DC Brake Power
Receptacle, mini, 4-pin
889N-F4AFNM-* Patchcord: Mini/Mini Plus, Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, Mini,
Male, Straight, 16 AWG
889N-F4AENM-D* 22 mm, 18 AWG, 300V, 10 A, 4-pin,
straight mini Male to straight Mini
Female
P0 P0 Digital Input
Receptacle, micro, 5-pin
889D-F4ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
879D-F4ACDM-* V-Cable, DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
879D-R4ACDM-* V-Cable, DC Micro (M12), Female,
Right Angle, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
889D-M4AC-* DC micro (M12), Male, Straight, 4-Pin,
PVC Cable, Yellow, Unshielded, IEC
Color coded, No Connector
P1 P1 Digital Input
Receptacle, micro, 5-pin
889D-F4ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
879D-F4ACDM-* V-Cable, DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
879D-R4ACDM-* V-Cable, DC Micro (M12), Female,
Right Angle, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
889D-M4AC-* DC Micro (M12), Male, Straight, 4-Pin,
PVC Cable, Yellow, Unshielded, IEC
Color Coded, No Connector

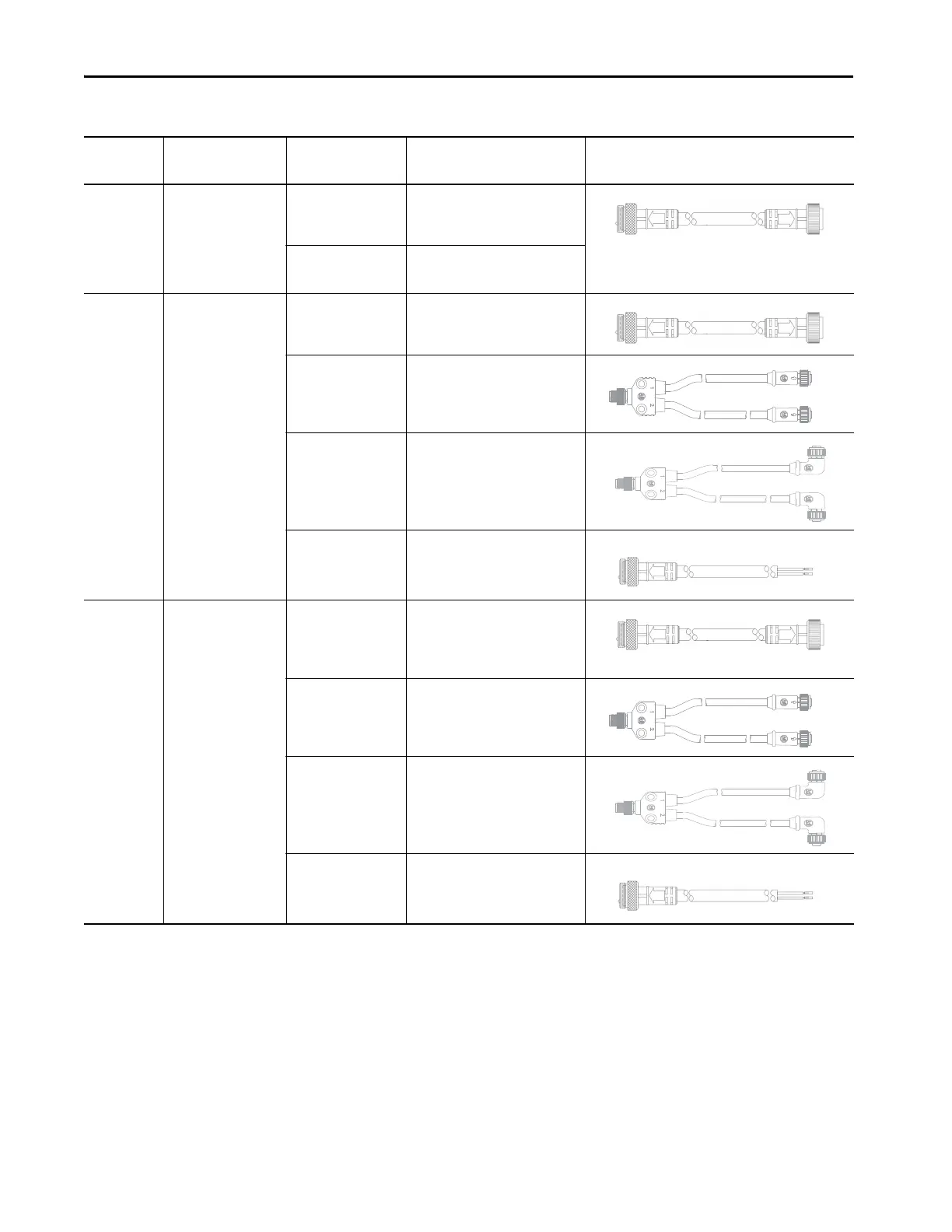

Table 4 - Cable Descriptions and Receptacle Information (continued)
Receptacle
Abbreviation
Receptacle Description Recommended
Interface Cable /
Connector
(2)
Cable Description Image
(4)
