DBRT Brake Resistor
Thermostat Temperature
Receptacle, micro, 4-pin
889D-F4ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
879D-F4ACDM-* V-Cable, DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
879D-R4ACDM-* V-Cable, DC Micro (M12), Female,
Right Angle, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
889D-M4AC-* DC Micro (M12), Male, Straight, 4-Pin,
PVC Cable, Yellow, Unshielded, IEC
Color Coded, No Connector
S0
(S3 safety)
S0 Safety Receptacle,
micro, 5-pin
889D-F4ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
879D-F4ACDM-* V-Cable, DC Micro (M12), Female,
Straight, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
879D-R4ACDM-* V-Cable, DC Micro (M12), Female,
Right Angle, 4-Pin, PVC Cable, Yellow,
Unshielded, 22 AWG, DC Micro (M12),
Straight Male
889D-F4AC-* DC Micro (M12), Female, Straight, 4-
Pin, PVC Cable, Yellow, Unshielded, IEC
Color Coded, No Connector
S0
(S4 safety)
S0 Network Safety
Receptacle, A, micro,
5-pin
889D-M5AC-* DC Micro (M12), Male, Straight, 5-Pin,
PVC Cable, Yellow, Unshielded, IEC
Color Coded, No Connector
889D-F5ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 5-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
889D-F5ACDE-* Patchcord: DC Micro (M12), Female,
Straight, 5-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, R-Angle

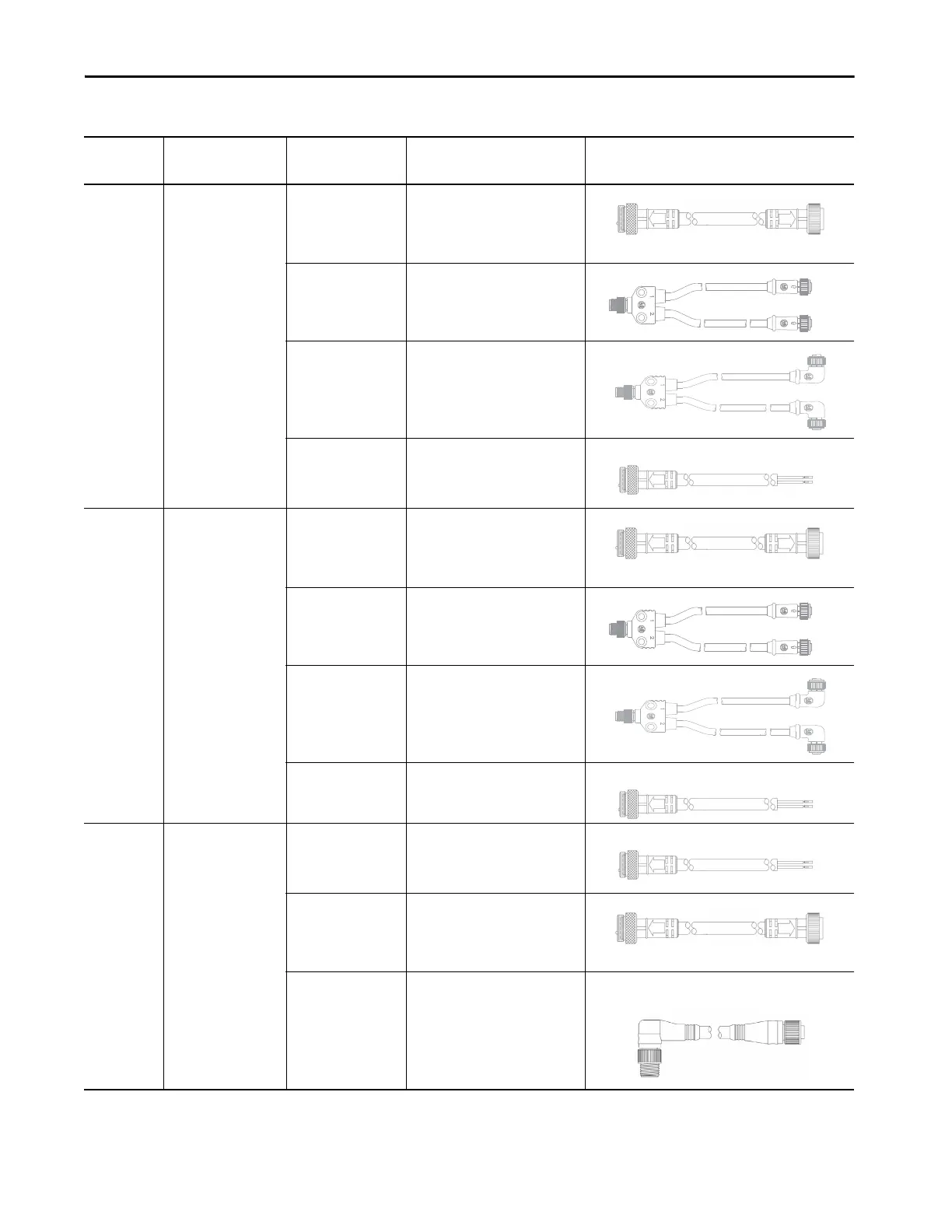

Table 4 - Cable Descriptions and Receptacle Information (continued)
Receptacle
Abbreviation
Receptacle Description Recommended
Interface Cable /
Connector
(2)
Cable Description Image
(4)
