42 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 3 Install the Drive
S0
(S4 safety with
brake)
S0 Network Safety
Receptacle, C, micro, 5-
pin, female
889D-M5AC-* DC Micro (M12), Female, Straight, 5-
Pin, PVC Cable, Yellow, Unshielded, IEC
Color Coded, No Connector
889D-F5ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 5-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
889D-F5ACDE-* Patchcord: DC Micro (M12), Female,
Straight, 5-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, R-Angle
S1
(S4 safety)
S1 Network Safety
Receptacle, B&C, micro,
4-pin, female
889D-M5AC-* DC Micro (M12), Male, Straight, 5-Pin,
PVC Cable, Yellow, Unshielded, IEC
Color Coded, No Connector
889D-F5ACDM-* Patchcord: DC Micro (M12), Female,
Straight, 5-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, Straight
889D-F5ACDE-* Patchcord: DC Micro (M12), Female,
Straight, 5-Pin, PVC Cable, Yellow,
Unshielded, IEC Color Coded, DC Mic,
Male, R-Angle
CFBM HIP SC Encoder
Receptacle, Servo, Bulk H,
E52, E55
2090-CFBM7E7-CEAF** SpeedTEC Cable, Motor Feedback Only,
SpeedTEC DIN Connector, Extension
Receptacle (SpeedTEC ready), SIN/COS
High-Resolution/Resolver Encoder
Type, Continuous-Flex
CPBM
(for drive rating
= 22 A)
Output Power #10 and
Brake, #18, Receptacle, 6-
pin
2090-CPBM7E7-10AF** SpeedTEC Cable, Motor Power With
Brake Wires, SpeedTEC DIN Connector,
Extension Receptacle (SpeedTEC
ready), 10 AWG, Continuous-Flex
CPBM
(for drive rating
< 22 A)
Output Power #14 and
Brake, #18, Receptacle, 6-
pin
2090-CPBM7E7-14AF** SpeedTEC Cable, Motor Power With
Brake Wires, SpeedTEC DIN Connector,
Extension Receptacle (SpeedTEC
ready), 14 AWG, Continuous-Flex

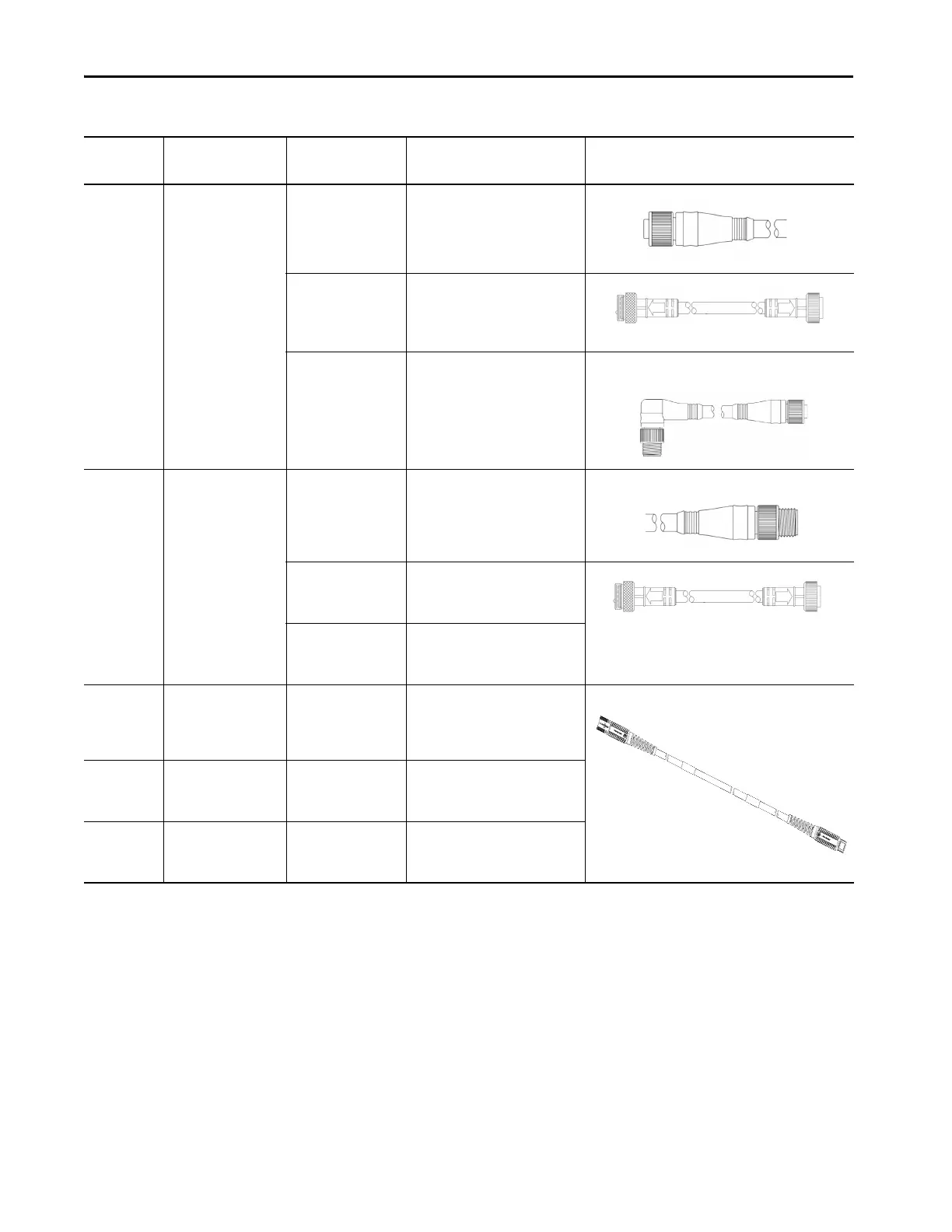

Table 4 - Cable Descriptions and Receptacle Information (continued)
Receptacle
Abbreviation
Receptacle Description Recommended
Interface Cable /
Connector
(2)
Cable Description Image
(4)
