76 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 4 Configure and Start Up the Drive

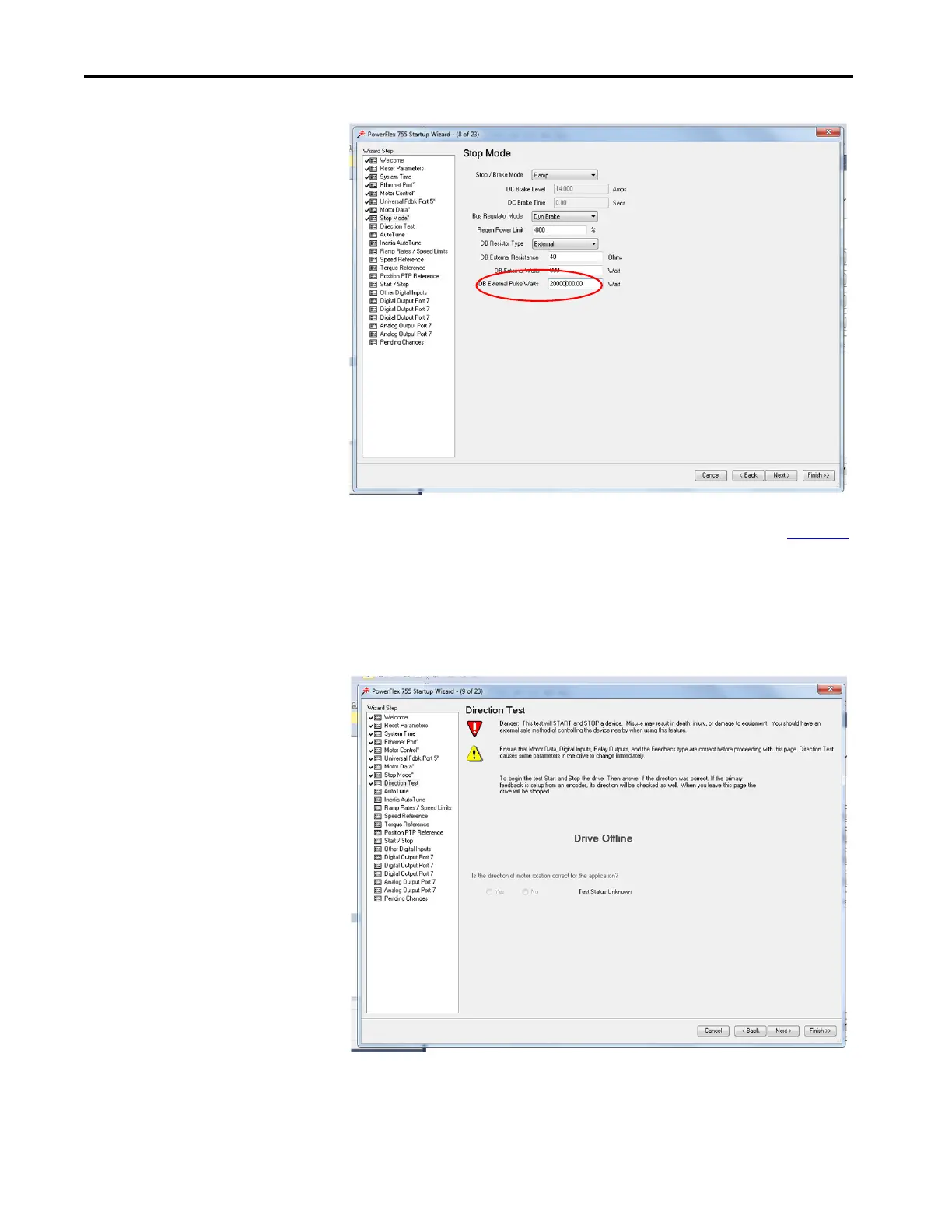

8. Because Direction Test, Autotune, and Inertia Autotune tests cannot be
performed offline. Click Next.
9. On the Ramp Rates / Speed Limits step, set the Max Forward and
Reverse speed limits for the motor. Click Next.
TIP In the PowerFlex 750-Series Programming manual, publication 750-PM001,
P385 max is 100,000,000. 2million is used here as an example. In the On-
Machine Drive, DBRT provides the normally-closed thermostat feedback
that is used to protect the Db resistor.
