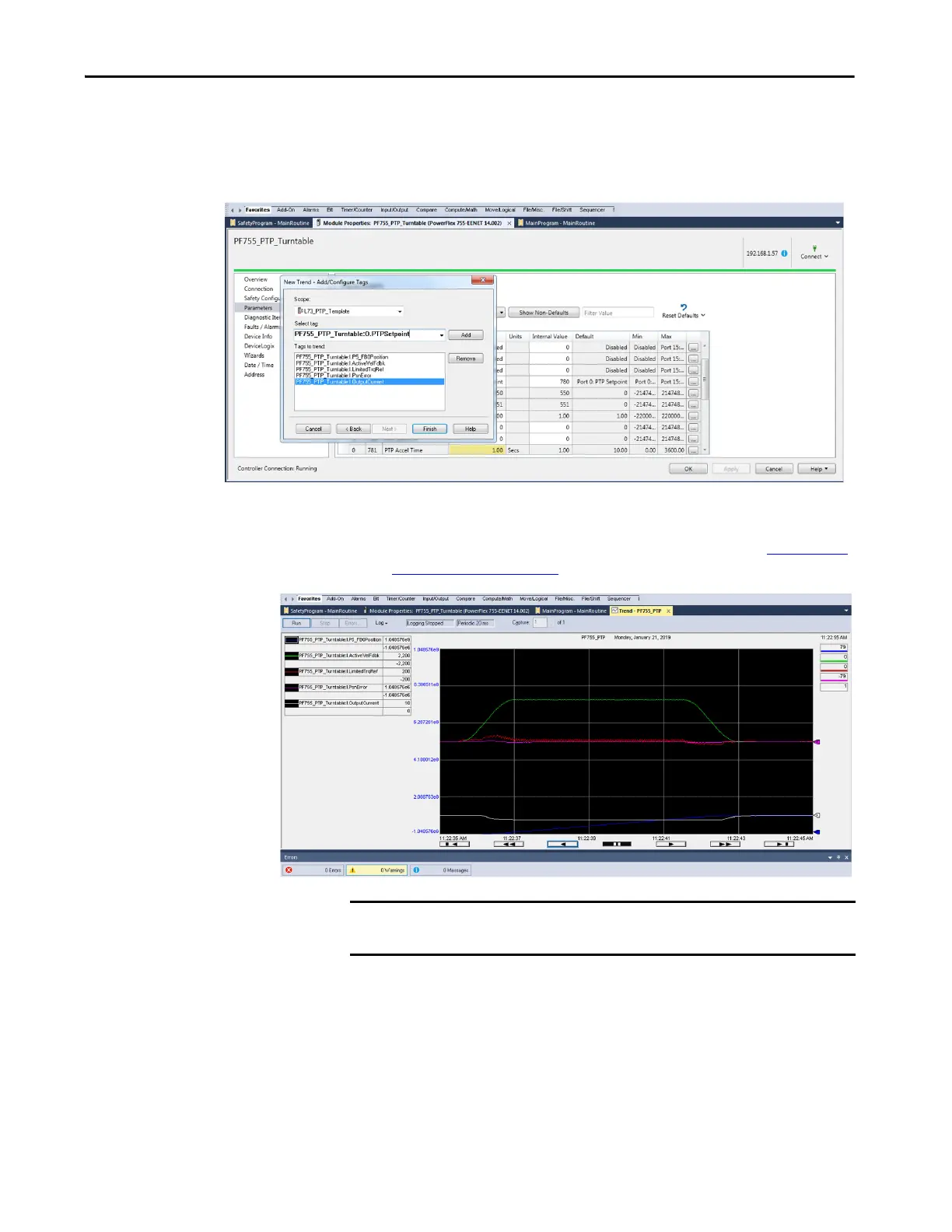

In our example, the selected Logix controller created tags are based on
the Datalinks that were configured during commissioning. This example
shows a trend that observes the position, speed, torque, current, and
position following error of the drive.
You can use the Trend Properties dialog box to configure the chart pen
colors, scaling, and so on. The trend captures the data when online with
the Logix Designer application later in this procedure. See How to Use
Tre n d S et t ing s on page 89 for more information on trend configuration.
How to Use Trend Settings
1. In the Controller Organizer, right-click your Trend and select Properties
to open the properties dialog box. Here you can use the trend properties
to configure the chart pen colors, scaling, and so on.
IMPORTANT This example is from an online setup, Trend will not show results until the
drive is fully commissioned.
