90 Rockwell Automation Publication 750-UM006C-EN-P - March 2022
Chapter 4 Configure and Start Up the Drive

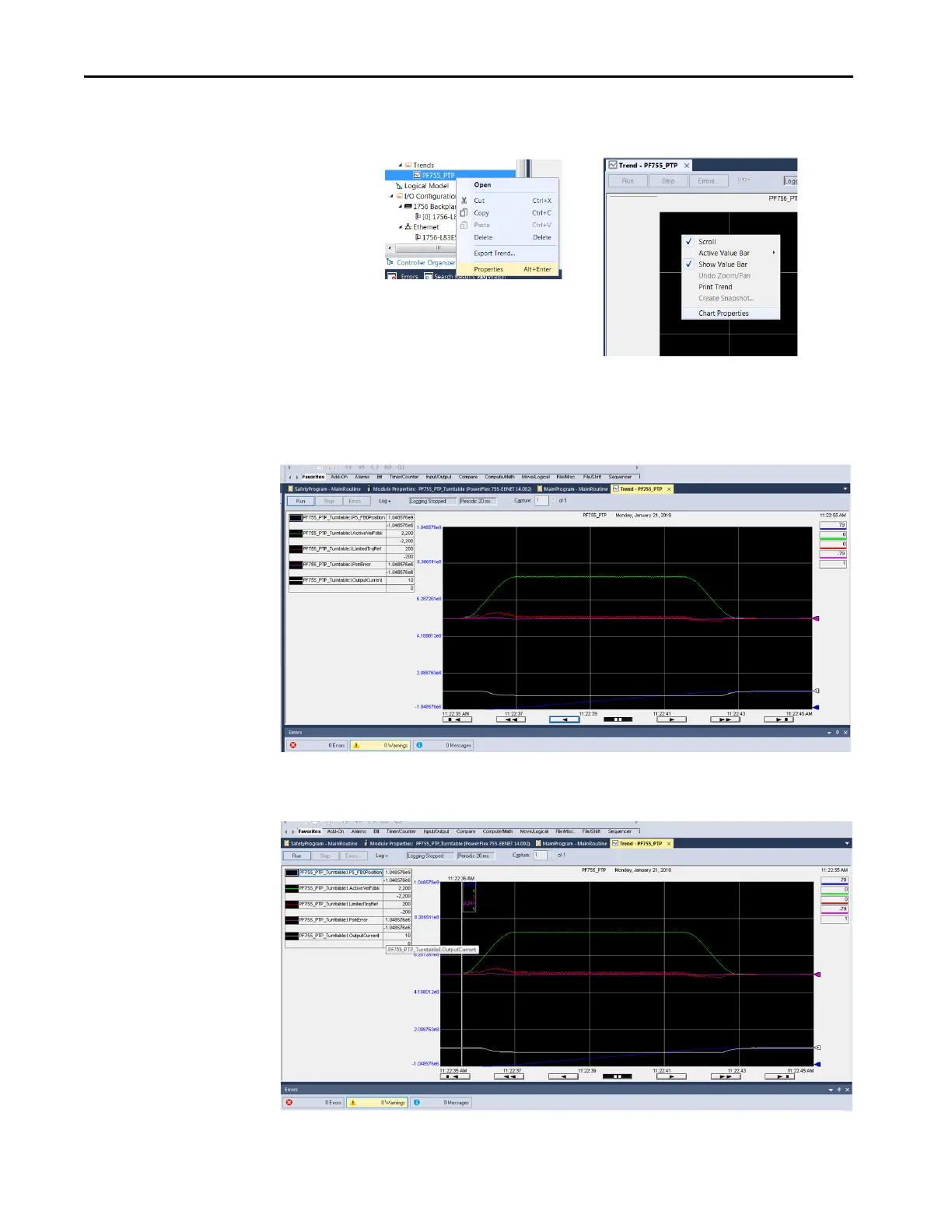

As an alternate option, you can right-click on the chart to access Chart
Properties.
2. After configuration, click Run to start the trend and issue a run or jog
command to the PowerFlex 755 from the Logix controller. Trend
captures the data. You may save it, delete it, and rerun it to observe the
machine performance.
3. Right-click in the graph to add line bars, delta bars, and more to help
evaluate the system performance.
