Ametek Sorensen Asterion AST Series User Manual

DC Asterion Series Overview
M330460-01 Rev A 3-51

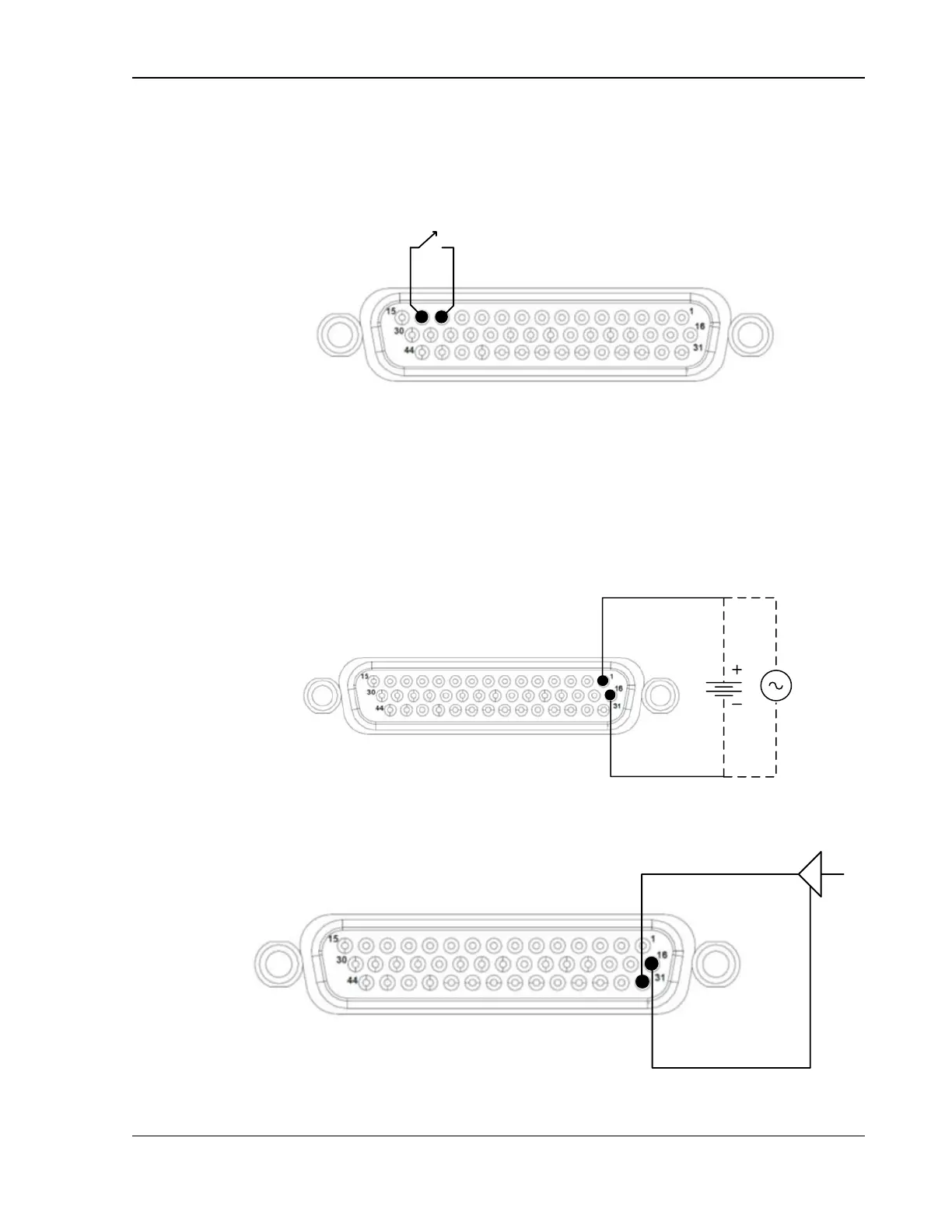

3.8.1 Remote Output ON/OFF by Contact Closure
Application of a contact closure between Pins 13 and Pin 14 will enable the output (if
Output Enable from front panel or SCPI is ON). See Figure 3-108 for connection
requirements.
13
14
Figure 3-108. Remote Output On/Off Control by Contact Closure
3.8.2 Remote Output ON/OFF Control by External Source
Application of AC/DC voltage between Pins 1 and 16, or TTL/CMOS voltage between
Pins 31 and 16, will turn on the power supply; this interface is opto-isolated from circuit
common. See Figure 3-109 and Figure 3-110 for connection requirements.
AC or DC
Source
1
16
ON/OFF_HV
Figure 3-109. Remote Output On/Off Using Isolated AC or DC Source
31
16
ON/OFF_ISO
RTN_HV
Figure 3-110. Remote Output On/Off Using Isolated TTL/CMOS Source
