3.1.6 Ramp Screen
The Ramp Screen provides the functionality to create voltage and current Ramp.
The top-level menu of the Ramp screen is shown in refer to Figure 3-19 .
Refer to Section 3.1.2.1 for navigating to Ramp Screen.

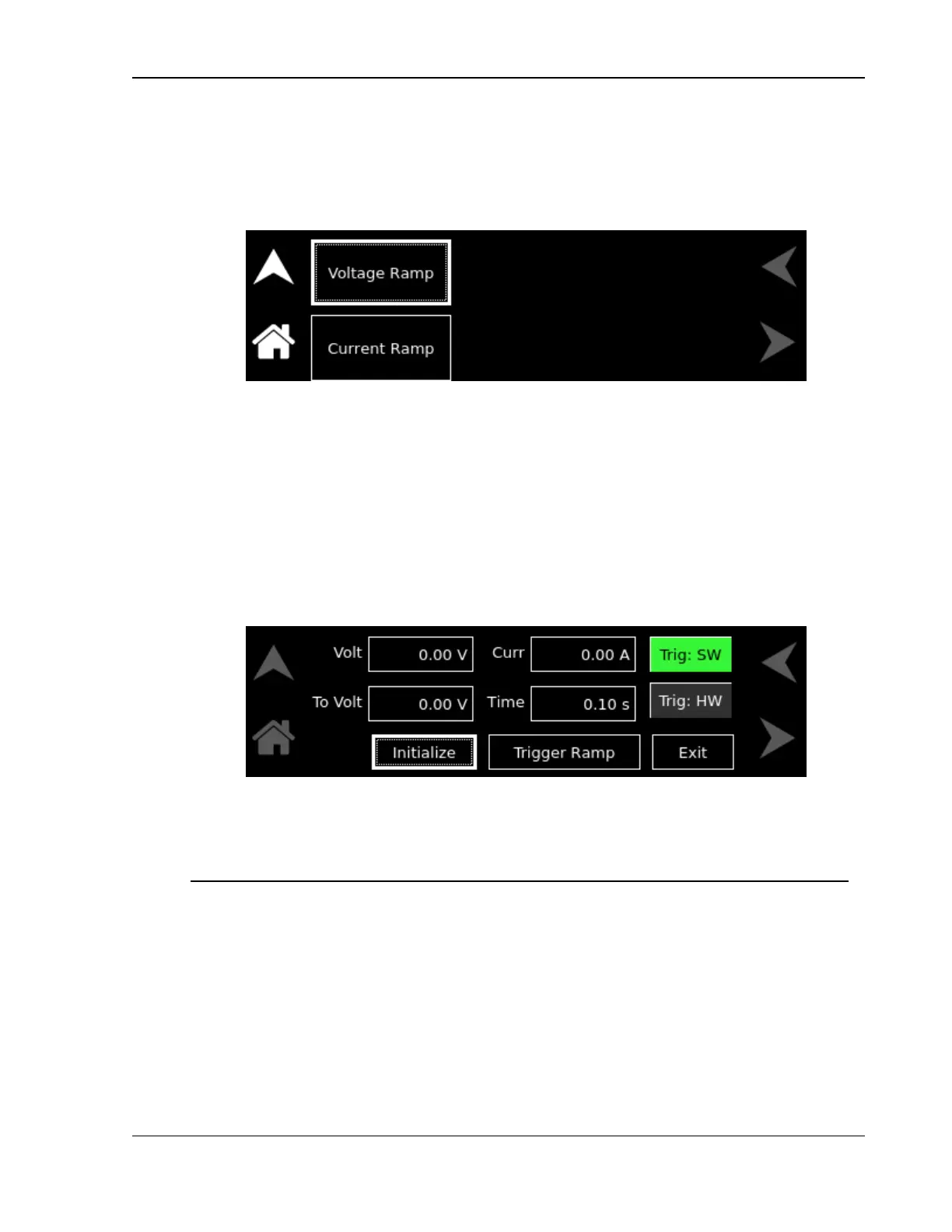

Figure 3-19. Ramp Screen Top Level Menu
The following menus are available in the Ramp top-level menu: Voltage Ramp and
Current ramp.
3.1.6.1 VOLTAGE RAMP
The Voltage Ramp menu allows to configure and execute voltage ramp, refer to
Figure 3-20. The Voltage Ramp menu allows the selection of parameters such as
Volt, To Volt, Curr, Time and Trigger.
Figure 3-20. Voltage Ramp Screen
The Voltage Ramp menu has the following fields:
Entry Description
Volt Sets the start voltage for the ramp
To Volt Sets the end voltage for the ramp.
Curr Sets the Current limit for the ramp.
Time Sets the time in seconds to reach from start volt to end volt.
Trigger Sets the trigger mode for the ramp.
In SW (Software) trigger mode, the ramp is generated as soon as
the Trigger Ramp button is pressed.
