3.1.7.5 MEASUREMENTS SETTING
The Measurement Settings Menu sets the number of readings to average together
to reduce noise in the readback. Refer to Figure 3-53.

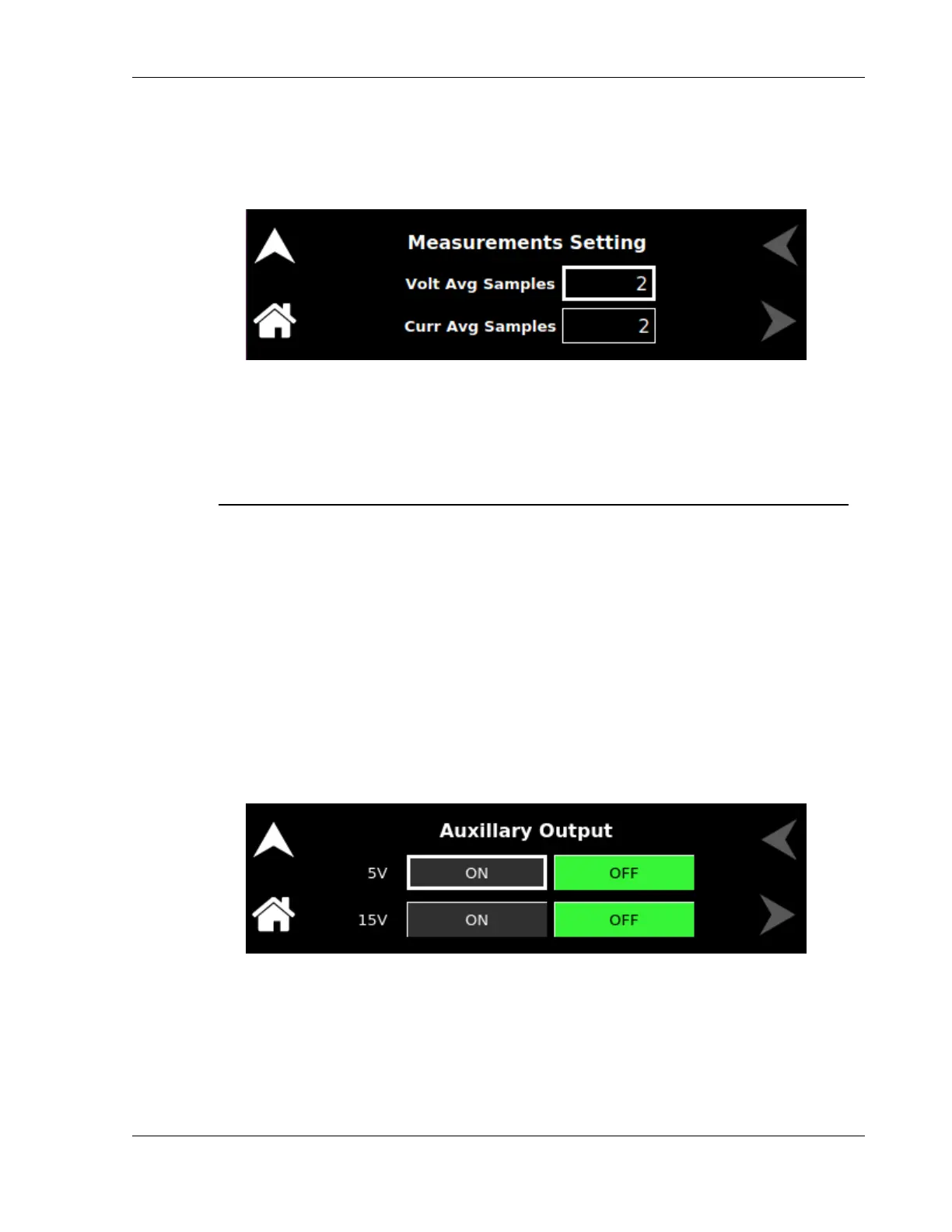

Figure 3-53. Measurement Settings Screen
The Measurement Settings menu has the following fields:
Entry Description
Volt Avg Samples Sets the number of voltage readings to average together to
reduce noise in the voltage readback. Allows to set a value
between 1 to 5. The value of 1 (factory default) provides the
fastest response time in the readings, but less rejection of noise.
Curr Avg Samples Sets the number of current readings to average together to
reduce noise in the current readback. Allows to set a value
between 1 to 9. The value of 1 (factory default) provides the
fastest response time in the readings, but less rejection of noise.
3.1.7.6 AUX OUTPUT
The Auxiliary Output Menu sets the 5V and 15V setting to ON or OFF state,
refer to Figure 3-54.
Figure 3-54. Auxiliary Settings Screen
The Auxiliary Settings menu has the following fields:
