Analog Ref. Source Sets the power-on default value of the Analog Reference Mode,
refer to Figure 3-44. NOTE: Resistive and 4-20mA source is not
applicable to external OVP programming.

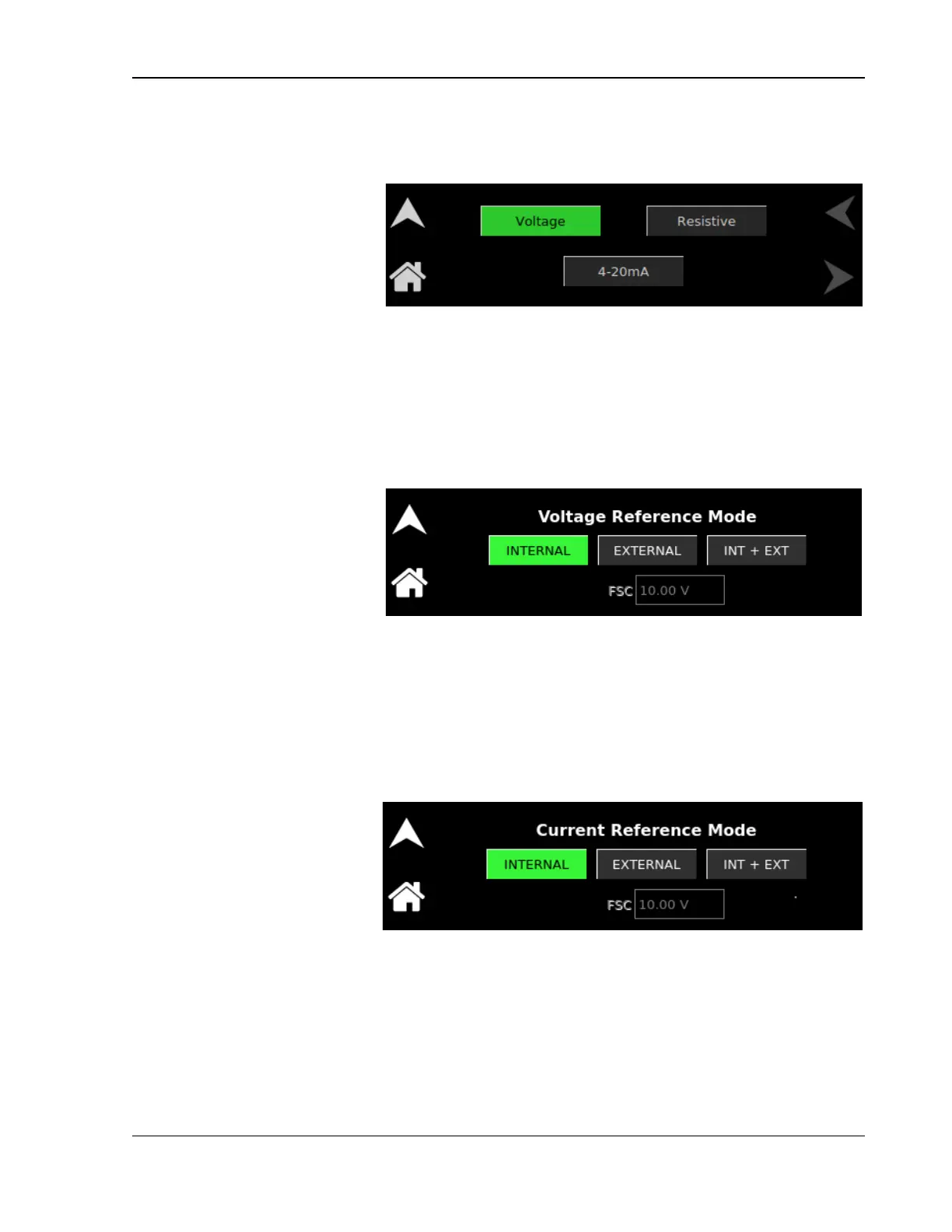

Figure 3-44. Analog Reference Mode
Voltage Ref. Mode Sets the power-on default value of the Voltage Reference
Mode, refer to Figure 3-45. When external Ref. Source is
selected as Resistive, FSC (Full Scale) unit will change to k
Ohms. When external Ref. Source is selected as 4-20mA, FSC
will not be applicable.
Figure 3-45. Volatge Reference Mode
Curr. Ref. Mode Sets the power-on default value of the Current Reference Mode,
refer to Figure 3-46. When external Ref. Source is selected as
Resistive, FSC (Full Scale) unit will change to k Ohms. When
external Ref. Source is selected as 4-20mA, FSC will not be
applicable.
Figure 3-46. Current Reference Mode
Power Ref. Mode Sets the power-on default value of the Power Reference Mode,
refer to Figure 3-47. When external Ref. Source is selected as
Resistive, FSC (Full Scale) unit will change to k Ohms. When
external Ref. Source is selected as 4-20mA, FSC will not be
applicable.
