DC Asterion Series Overview
M330460-01 Rev A 3-21
3.1.7.3 USER V/I LIMITS
The User V/I Limits menu allows to set the soft-limits for output voltage and current
to which the unit could be programmed using the front panel or remote digital interface;
default is full scale, refer to Figure 3-51.

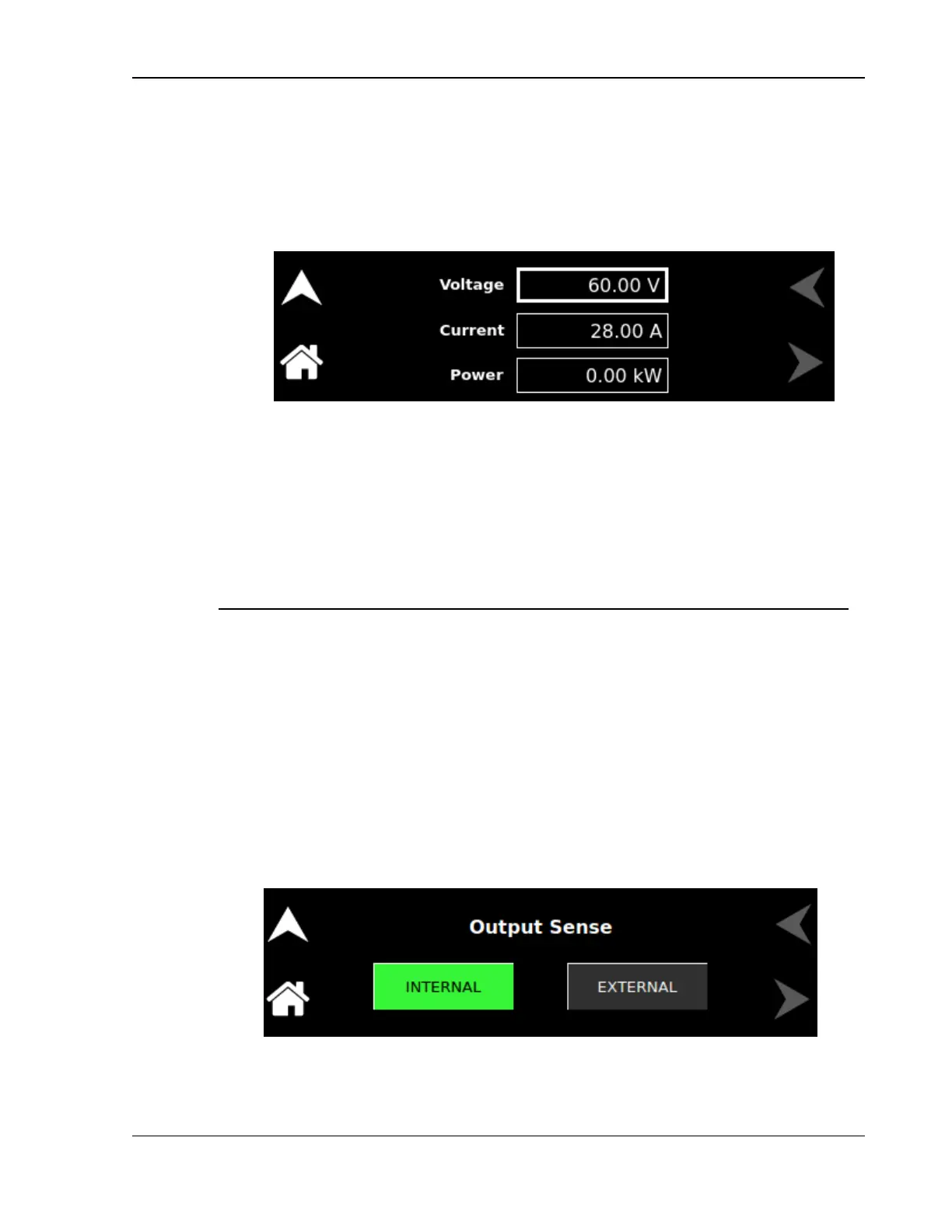

Figure 3-51. User V/I Limits Screen
The user limit prevents the supply from being inadvertently programmed above the
user set limit, thus providing a method for protecting the load against damaging
voltages, currents, and/or power levels. The User V/I Limits menu has the following
fields:
Entry Description
Voltage Sets the upper user limit on the programmed output voltage.
Current Sets the upper user limit on the programmed output current.
Power Sets the upper user limit on the programmed output power.
3.1.7.4 OUTPUT SENSE
The Output Sense menu allows user to set the output voltage sense of the unit to
either Internal or External, refer to Figure 3-52. When External is selected as output
sense, voltage sense cables must be connected to rear panel of power the supply at
RVS (Remote Voltage Sense) connector.
Figure 3-52. Output Sense Setting Screen
