Overview DC Asterion Series
3-18 M330460-01 Rev A
3-52. When External is selected as output sense, voltage sense
cables must be connected to rear panel of power the supply at
RVS (Remote Voltage Sense) connector.

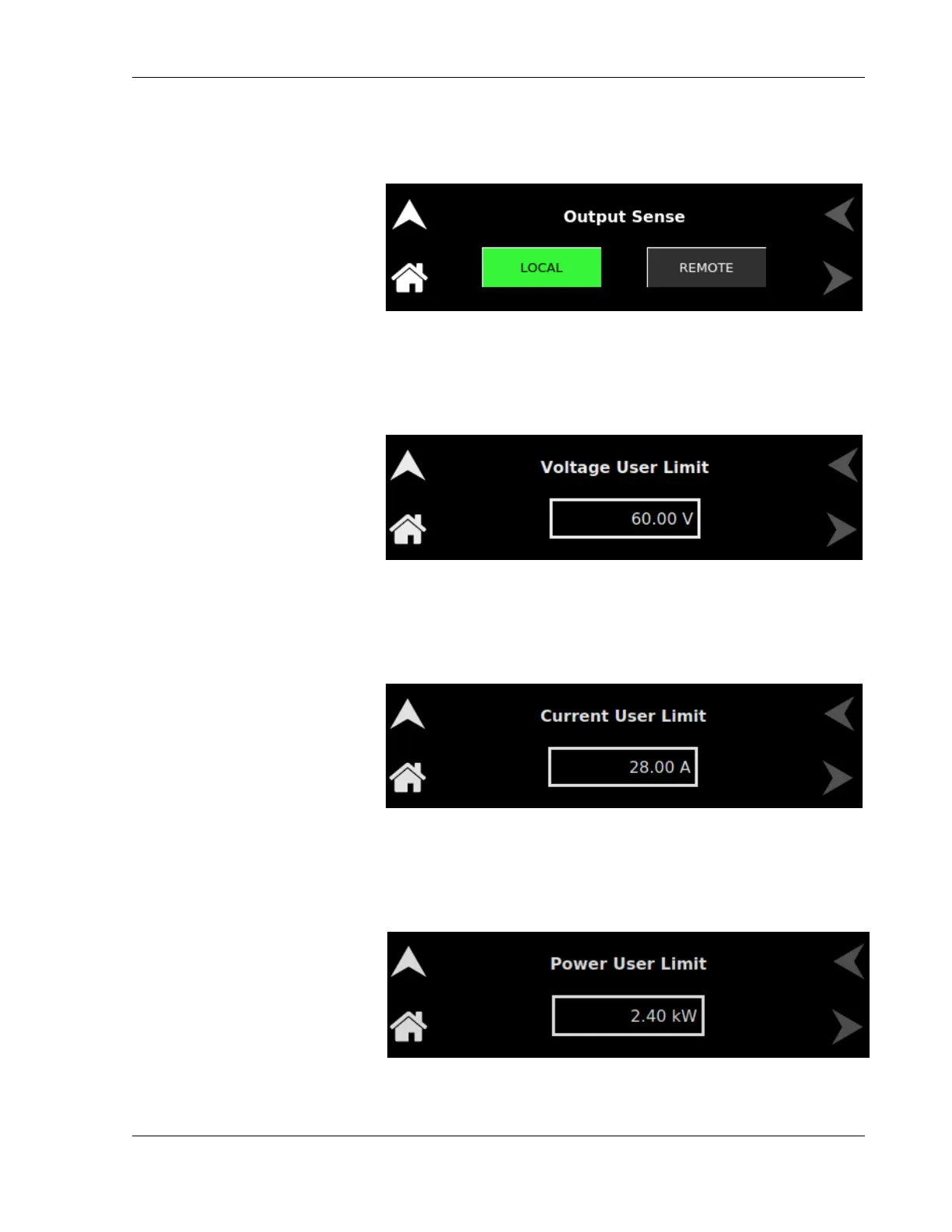

Figure 3-40. Output Sense Setting Screen
Voltage User Limit Sets the power-on default value of the voltage User limit, refer
to Figure 3-41.
Figure 3-41. Voltage User Limit
Current User Limit Sets the power-on default value of the Current User Limit, refer
to Figure 3-42.
Figure 3-42. Current User Limit
Power User Limit Sets the power-on default value of the Power User Limit, refer
to Figure 3-43.
Figure 3-43. Power User Limit
