Ametek Sorensen Asterion AST Series - Figure 3-15. Regulation Setting; Figure 3-16. Power Setting; Figure 3-17. Output State Setting; Figure 3-18. Measurements Screen

Overview DC Asterion Series
3-8 M330460-01 Rev A

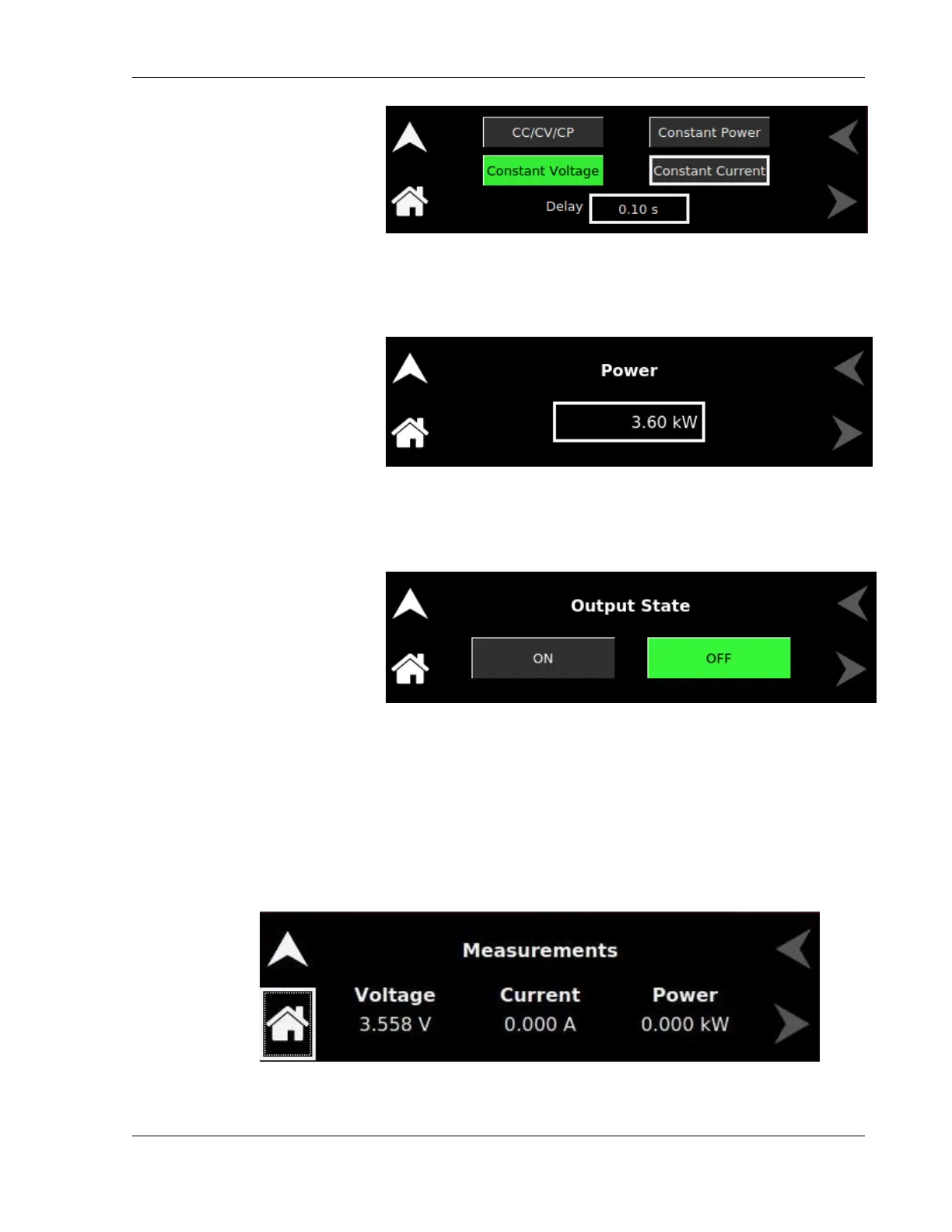

Figure 3-15. Regulation Setting
POWER Programs the power setting in kilo watts (KW), refer to Figure 3-16.
Figure 3-16. Power Setting
OUTPUT STATE Programs the output relay settings to ON or OFF state, refer to
Figure 3-17.
Figure 3-17. Output State Setting
3.1.5 Measurements Screen
The Measurements the floating-point value of the DC Output Voltage, Output Current
and Output Power. the DC Output Voltage, Output Current and Output Power.
The Measurements screen is shown in refer to Figure 3-18. Refer to Section 3.1.2.1
for navigating to Measurements Screen.
Figure 3-18. Measurements Screen
