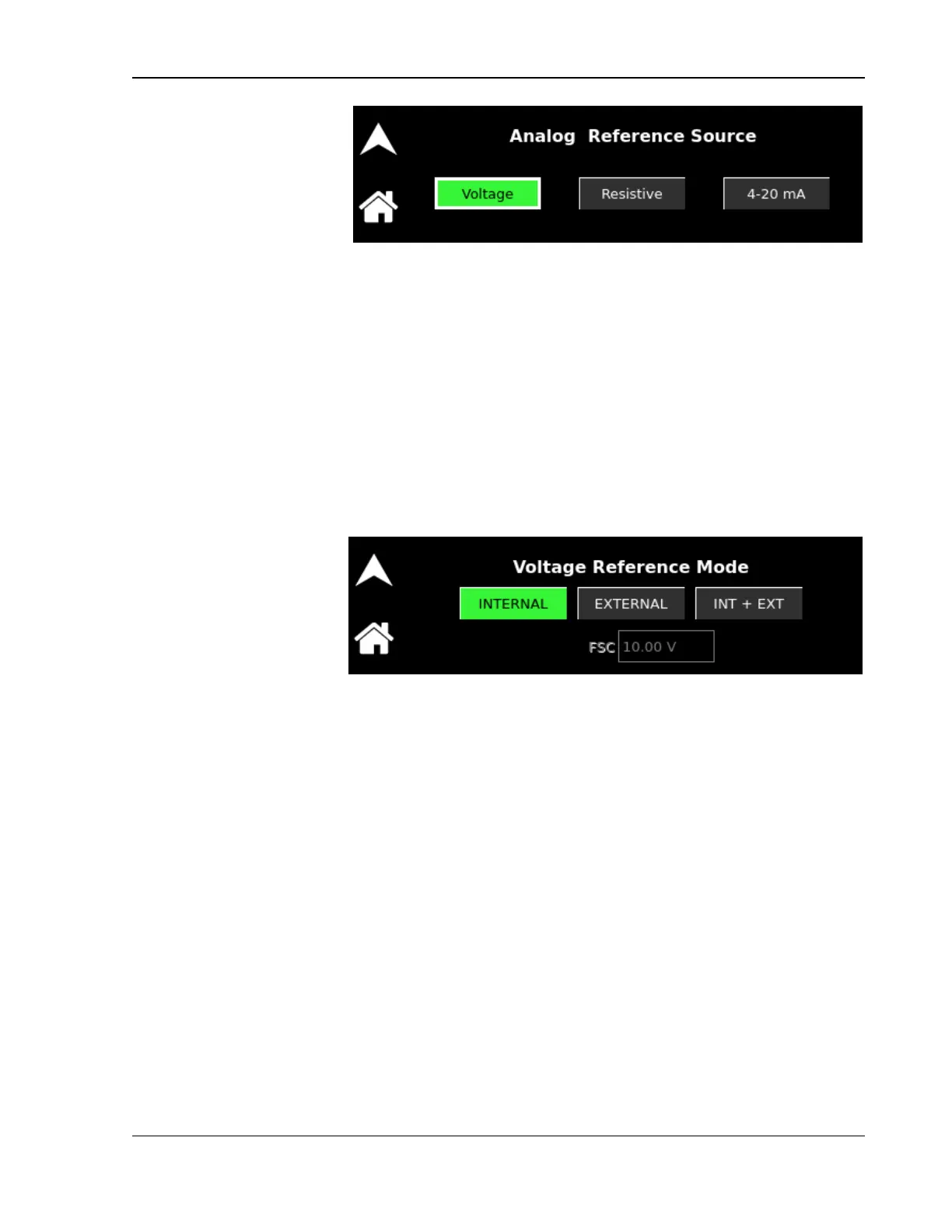

Figure 3-74. Analog Reference Mode Screen
Voltage Ref Mode: Configures the Voltage Reference Mode, refer to Figure 3-75.
When Voltage reference mode is selected as External, the
Voltage setting field in Dashboard screen will be disabled and
Voltage setting field in Dashboard will display equivalent voltage
setting from external program source.
NOTE: When Analog Ref. Source is selected as Resistive, FSC
(Full Scale) unit will change to k Ohms. When external Ref.
Source is selected as 4-20mA, FSC will not be applicable.
Figure 3-75. Voltage Reference Mode Screen
Current Ref Mode: Configures the Current Reference Mode, refer to Figure 3-76.
When Current reference mode is selected as External, the
Current setting field in Dashboard screen will be disabled and
Current setting field in Dashboard will display equivalent current
setting from external program source.
NOTE: When Analog Ref. Source is selected as Resistive, FSC
(Full Scale) unit will change to k Ohms. When external Ref.
Source is selected as 4-20mA, FSC will not be applicable.
