Overview DC Asterion Series
2-18 M330460-01 Rev A
2.13.1 Remote Analog programming and External user control
interface
The remote analog programming and External user control interface is located on the
rear panel. Figure 2-10 shows the rear panel view of the connector, and Table 2-9 lists
the connector type. Table 2-10 shows the functions and Table 2-11 shows the
connector pinout.

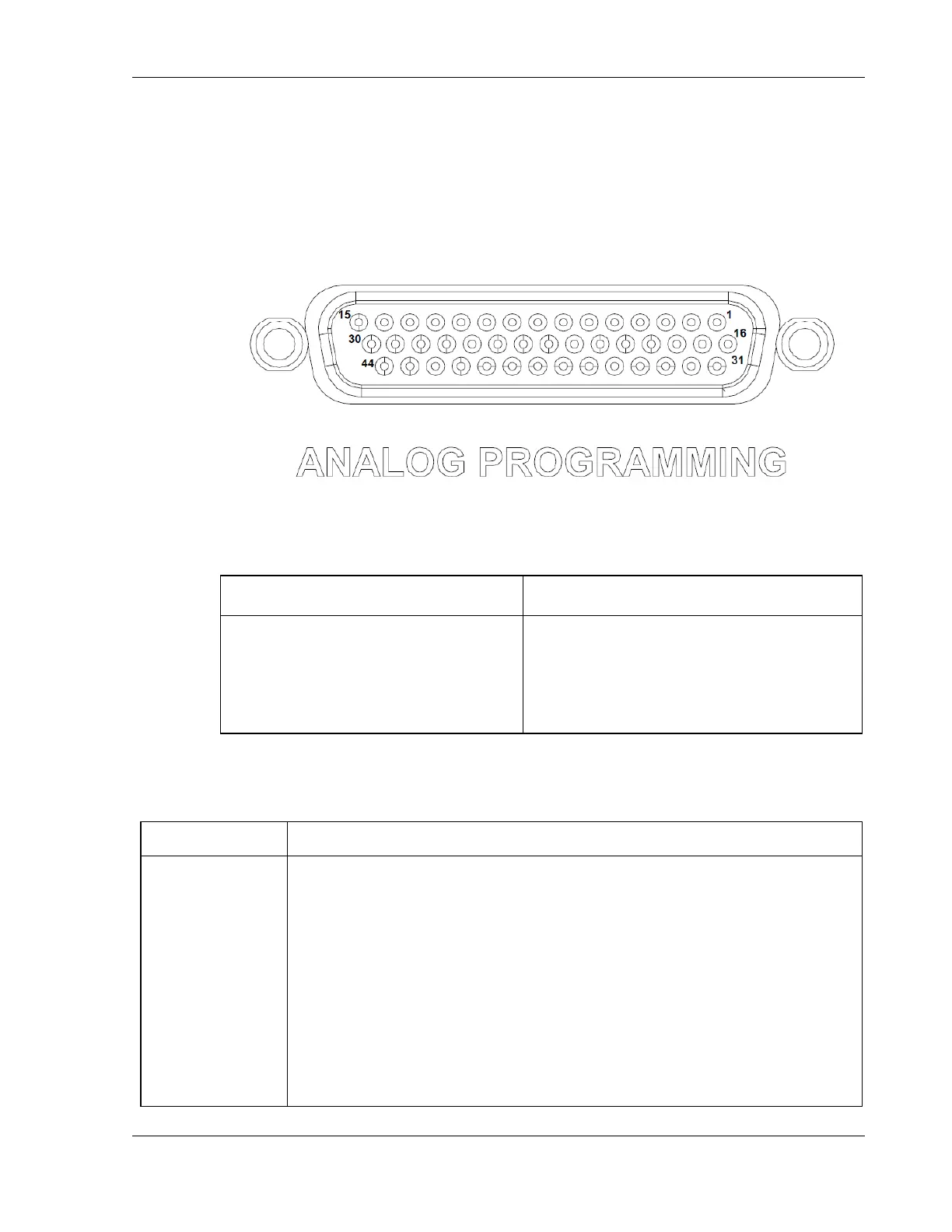

Figure 2-10. Analog Programming and External User Control Interface
Connector
Connector
Type
Remote Analog programming and external
user control interface
High-density, 44-socket, receptacle (female)
Subminiature-D.
Mating connector Ametek P/N, 856-044-01
Mating Manufacturer P/N: NORCOMP 180-044-
102L001 or equivalent
Table 2-9. Analog Programming and External User Control Interface
Connector Type
Function
Characteristics
Remote Analog
Programming of
Output Voltage,
Current and Power
Independent Signal inputs for output voltage, current and power programming using
External Analog Reference.
Analog reference source is user selectable and can be a voltage, resistance or 4-20 mA
source. Selected analog reference source can be used to program output voltage, current
and power programming.
Voltage as Reference Source: 0 V to user selectable maximum range (2 V to 10 V) for 0 to
full scale rated Output
12
Resistance as Reference Source: 0 kΩ to user selectable maximum range (2 kΩ to 10 kΩ)
for 0 to full scale rated Output
12
Current as Reference Source: Fixed range from 4 mA to 20 mA for 0 to full scale rated
Output
Programming accuracy and linearity: ±1% of rated output
