Ametek Sorensen Asterion AST Series - Figure 3-97. Remote Analog Programming Connector Pin-Out

DC Asterion Series Overview
M330460-01 Rev A 3-41

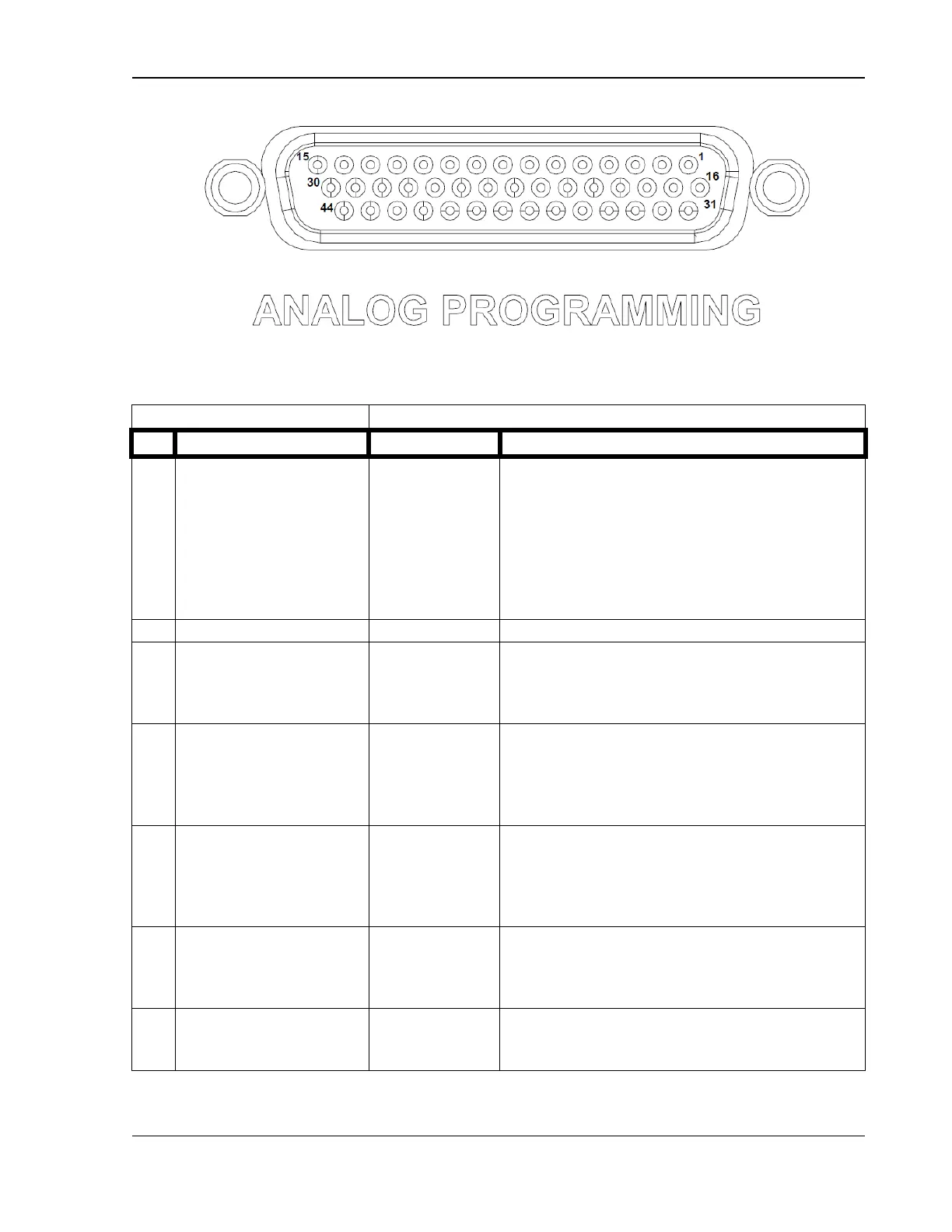

Figure 3-97. Remote Analog Programming Connector Pin-Out
44 Pin Conn
Ametek P/N: 856-044-00
Pin
Reference
Type
Functional Description
1
ON/OFF_HV
ISO HV
Isolated remote control input for output on/off
with an applied AC/DC voltage source. A
positive (+) 6-120 VDC or an AC input of 12-
240 VAC will enable (turn-on) the output of the
supply. This control input is optically isolated
from the output power negative terminal of the
power supply (up to 500 VDC). Signal return is
Pin 16 (RTN_HV).
2
3
VPRG_ISOUR
ANALOG OUT
Current source of 1 mA for remote voltage
programming using a resistance connected to
signal return Pin 18: 0-5 kΩ or 0-10kΩ = 0-
100% of full-scale output voltage.
4
VPRG_VSOUR/
VPRG_4-20mA_SOUR
ANALOG IN
Remote control input for voltage programming
using a voltage source: 0-5 VDC or 0-10 VDC
= 0-100% of full-scale output voltage. Do not
exceed an input of 12 VDC. Signal return is Pin
18.
5
OVPPRG_VSOUR
ANALOG IN
Remote control input for overvoltage
programming using a voltage source: 0-10
VDC = 0-110% of full-scale output voltage. Do
not exceed an input of 12 VDC. Signal return
is Pin 18.
6
VMON
ANALOG OUT
Monitor signal for output voltage: 0-10 VDC =
0-100% of full-scale output voltage. Minimum
recommended load resistance is 100 kΩ and
maximum load is 20kΩ. Circuit return is pin 22.
7
DIO_IN2
DIGITAL IN
User digital input, function to be assigned by
user. Up to 24V capable, .3V max low, 2.7V
min high.
