DC Asterion Series Overview
M330460-01 Rev A 3-25
LAN CONFIGURE: Sets parameter values and controls operation of the LAN
interface; refer to Figure 3-60.

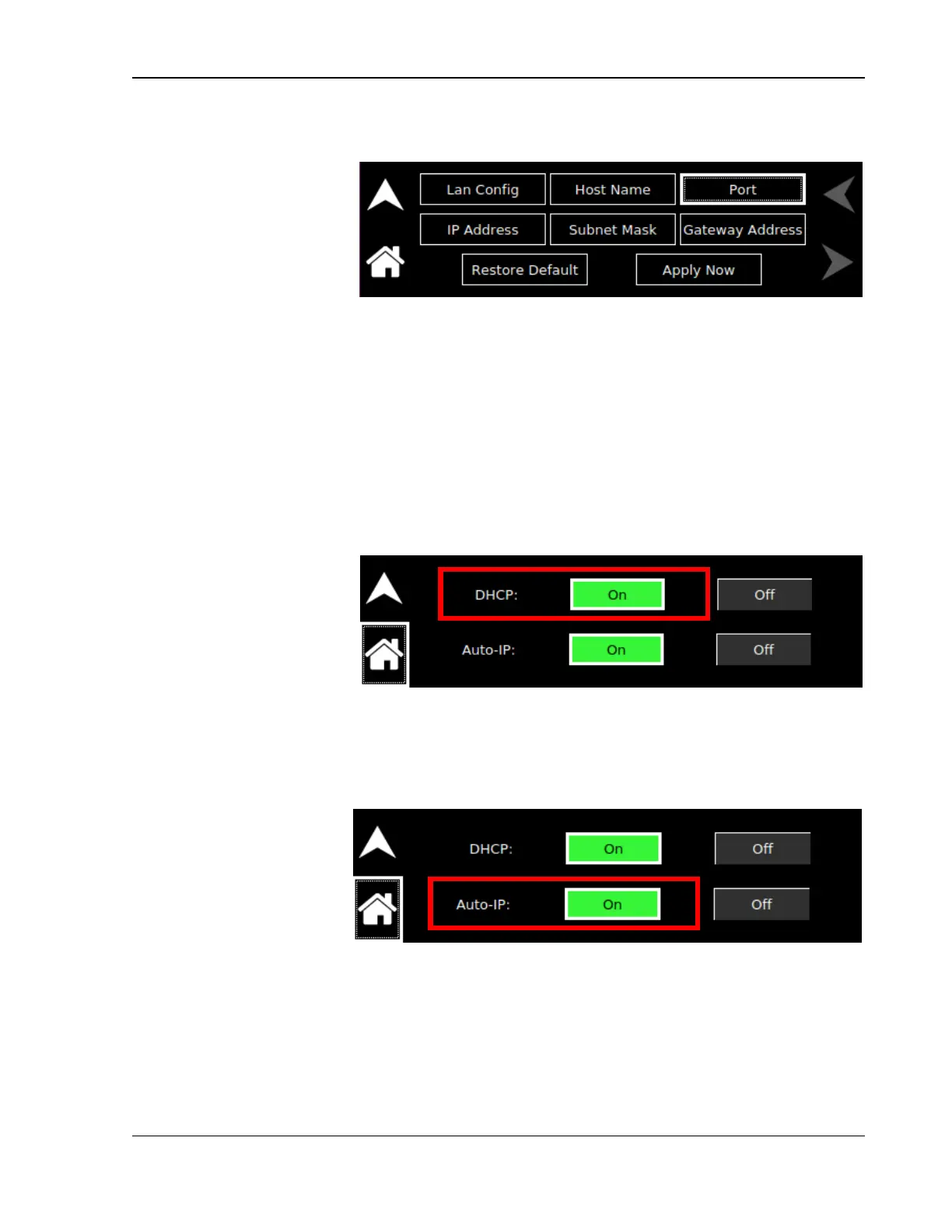

Figure 3-60. LAN Screen (Configure)
DHCP: Selects whether DHCP is enabled or disabled. Refer to Figure
3-61.
NOTE: When DHCP is selected, the IP address is assigned by the
network DHCP server. If DHCP server fails to assign an IP
address and Auto-IP is enabled, the unit gets an IP address
in the range of 169.254.X.X.
Figure 3-61. LAN Screen (DHCP)
Auto-IP: Enables or disable the Auto-IP configuration, when DHCP is ON.
Refer to Figure 3-62.
Figure 3-62. LAN Screen (Auto IP)
Host Name: Allows setting a unique alpha-numeric host name. Refer to Figure
3-63.
