DC Asterion Series Overview
M330460-01 Rev A 2-25
Pin #
Name
Description
3
D+
Data +
4
GND
Ground
Table 2-15. USB Interface Connector Pinout
2.13.4 LAN interface
A LAN connector (Ethernet 10BaseT/100BaseT) is located on the rear panel for remote
control; refer to Figure 2-13 for view of connector, Table 2-16 for connector type and
Table 2-17 for pin descriptions. A standard modular cable with an 8P8C modular plug
should be used between the power source and a network hub. For a direct connection
to a computer LAN card, a crossover cable with an 8P8C modular plug is required. The
MAC Address (Media Access Control) of the Ethernet port is printed on a label on the
chassis of the power source. For information on how to set up a network connection or
a direct computer connection using the LAN interface, refer to the DC-Asterion Series
Programming Manual P/N M330461-01 distributed on the CD, M550008-01. For EMC
considerations a ferrite core can be added to the cable Ametek P/N: 991-642-28,
Manufacturer P/N: CS28B0642.

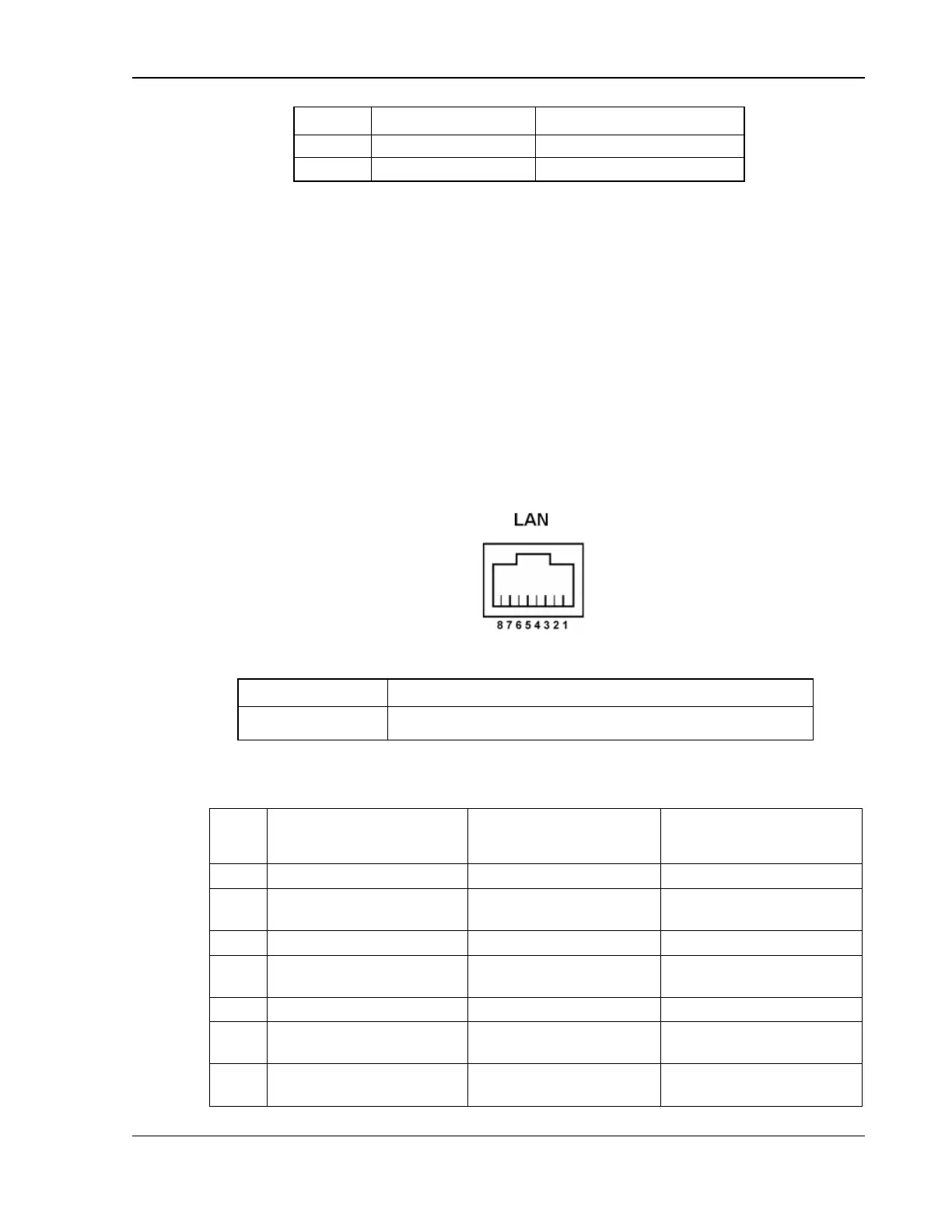

Figure 2-13. LAN Interface 8P8C Modular Connector
Connector
Type
LAN Interface
Standard RJ45 connector
Table 2-16. USB Interface Connector Type
Pin
#
Ethernet Signal
EIA/TIA 568A
EIA/TIA 568B
Crossover
1
Transmit/Receive Data 0 +
White with green stripe
White with orange stripe
2
Transmit/Receive Data 0 -
Green with white stripe or
solid green
Orange with white stripe or
solid orange
3
Transmit/Receive Data 1 +
White with orange stripe
White with green stripe
4
Transmit/Receive Data 2 +
Blue with white stripe or
solid blue
Blue with white stripe or
solid blue
5
Transmit/Receive Data 2 -
White with blue stripe
White with blue stripe
6
Transmit/Receive Data 1 -
Orange with white stripe or
solid orange
Green with white stripe or
solid green
7
Transmit/Receive Data 3 +
White with brown stripe or
solid brown
White with brown stripe or
solid brown
