DC Asterion Series Overview
M330460-01 Rev A 3-33

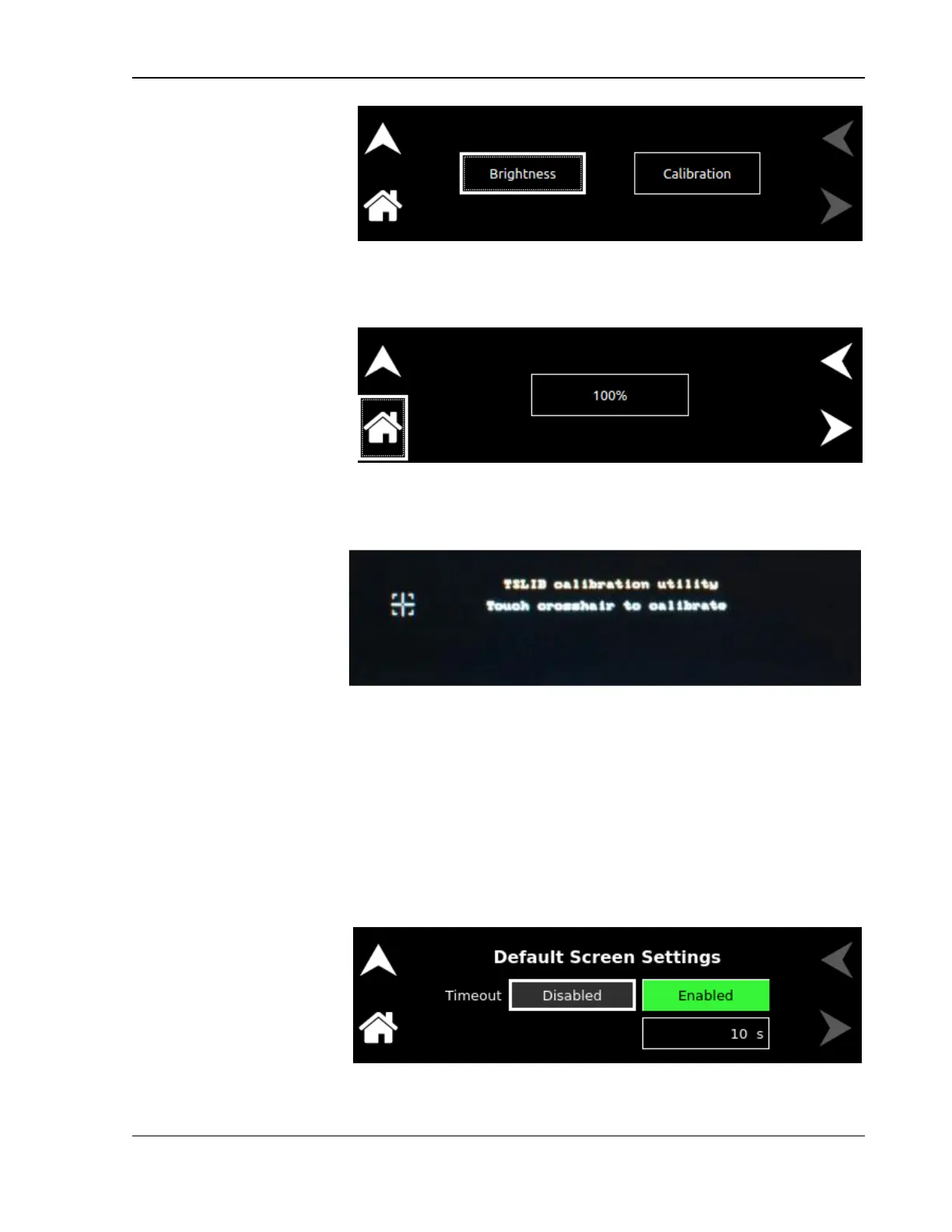

Figure 3-85. System Settings Screen (LCD Settings)
Figure 3-86. System Settings Screen (LCD Settings)
Brightness
Figure 3-87. System Settings Screen (LCD Settings)
Calibration
Default Screen Selects whether the Default screen (showing measured voltage,
current and power) is enabled or disabled, refer to Figure 3-88. It
allows to set the time out if the default screen is enabled.
Timeout Interval: Selects the time, in seconds, for how long
Dashboard screen must be inactive before the Default screen is
displayed.
Figure 3-88. System Settings Screen (Default Screen Enabled)
