11 TEMP monitoring
11.1 Overview
The defibrillator monitor can be used to measure the patient's body surface and intracavity
temperature. The Defibrillator Monitor supports two-channel temperature measurement.
Warnings
The temperature probe cable should be checked for proper operation before starting
temperature monitoring. Removing the temperature probe cable of channel 1 or 2 from the body
temperature probe connector will trigger a technical alarm and an alert message on the screen.
11.2 TEMP monitoring display

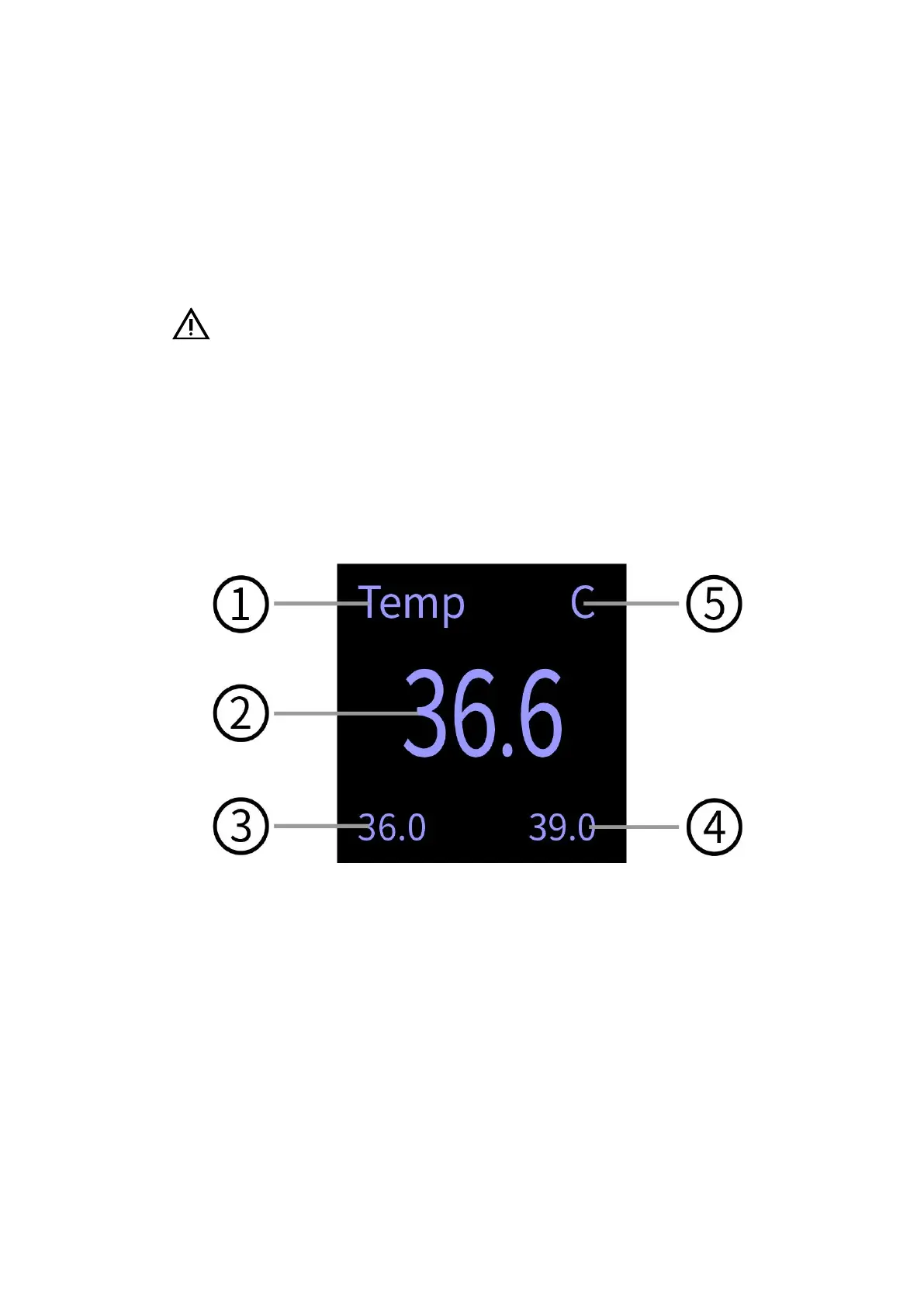

The following figure shows the TEMP monitoring display screen:
11- 1 TEMP monitoring
1 Temperature
2 Current temperature
3 Lower limit of temperature alarm
4 Upper limit of temperature alarm
5 Degrees Celsius
11.3 TEMP measurement steps
The TEMP measurement steps are as follows:
1. Select an appropriate temperature probe according to the patient category and the
